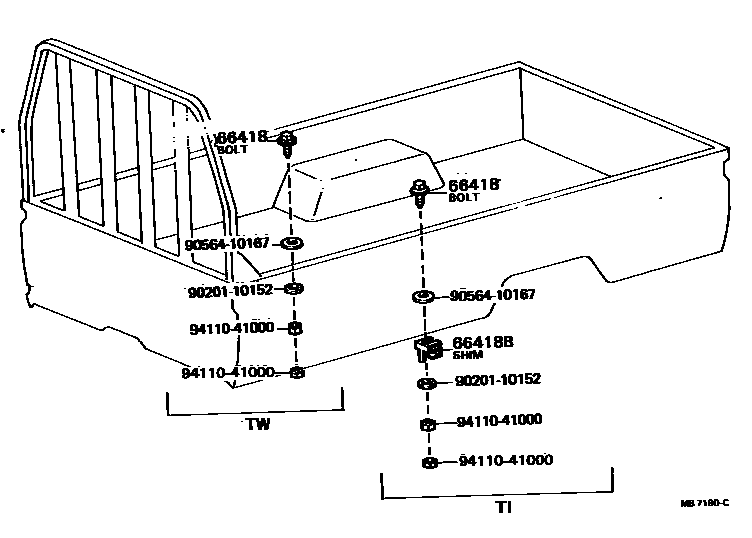

REAR BODY MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

66418BOLT, MOUNTING

main66418-92720×12iBU20,30..T2198302-198408

main66418-95400×4iBU20,RU20..T1,TW1197708-198411

TYPE A

main90119-10004×6iBU20,RU20..T1,TW1197708-198411

TYPE B

66418BSHIM, MOUNTING

main66439-95400iBU20,RU20..T1,TW1197708-198411

main66443-92721×12iBU20,30..T2198302-198408

9020110152

main90201-10152

9056410167

main90564-10167

9411041000

main94110-41000

5 parts on this diagram · 10 diagrams in section
