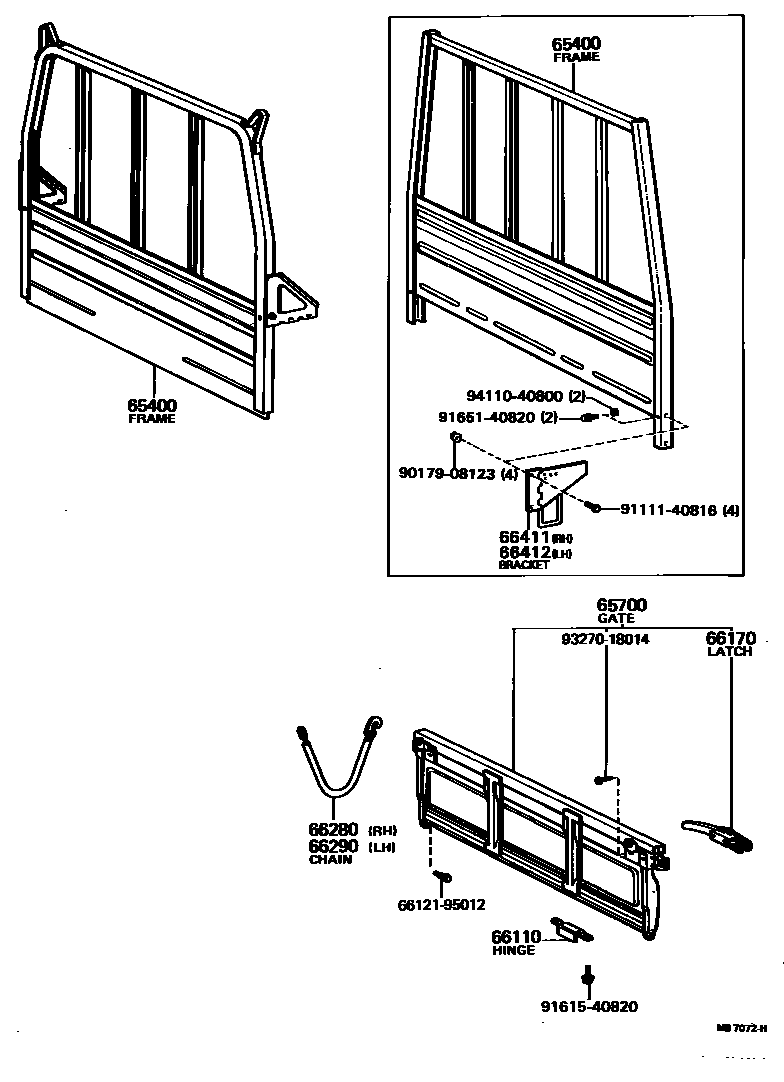

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1 0004 1 0005 1

65400FRAME ASSY, REAR BODY GUARD

main65400-92741iBU20..TB198302-198408

main65400-92818iBU30..T2198302-198408

main65400-92823iBU36198302-198408

main65400-92824iBU36198302-198408

W/TORSION SPRING

main65400-92825iBU36198302-198408

W/SCHNORKEL TYPE

main65400-92826iBU36198302-198408

W/SCHNORKEL TYPE,TORSIONSPRING

main65400-92841iBU30,RU30..T3198108-198408

main65400-92848iBU30,31,32,RU30..TB..(GEN,GHI)198108-198408

W/SCHNORKEL TYPE

main65400-92849iBU30,RU30..TB198008-198108

main65400-92856iBU30,RU30..TB197708-198008

main65400-92858iBU30..GEN;RU30..TB..(4F,5H)..GEN;RU30..TB..5F..GEN..IV3;BU30,RU30..TB..(ARL,EUR)..IV3197809-198008

W/SCHNORKEL TYPE

main65400-92859iBU3#,RU30..TB..(5F,5H)..(GEN,GHI)198008-198108

W/SCHNORKEL TYPE

main65400-92873iBU40,WU40198204-198408

main65400-92874iHU40,50198204-198408

main65400-92876iBU40,WU40198204-198408

W/TORSION SPRING

main65400-92878iHU40198204-198408

W/TORSION SPRING

main65400-92880iHU30..TB197708-198008

main65400-92881iHU30..TB198008-198104

main65400-95416iBU20,RU20..T1,TW1197708-198411

main65400-95425iRU20..TW1197810-198408

main65401-95403iBU20,JU20,RU20..T3..ST197708-198408

main65401-95404iBU20,RU20..TS..WT..GEN197708-198408

main65401-95406iHU30,RU30..TS197810-198408

main65401-95407iBU20,RU20..T3..ST..(ARL,GEN)..CBU197810-198408

W/SCHNORKEL TYPE

main65401-95408iBU20..TS..WT..GEN..CBU;RU20..LHD..4H..WT..CBU;RU20..(4F,5F,5H)..WT..(ARL,GEN)..CBU197810-198408

W/SCHNORKEL TYPE

main65401-95409iBU20..EUR198204-198408

65700GATE ASSY, REAR BODY TAIL

main65610-93110iBU25,RU25197803-198408

main65700-92709iBU20..TB198302-198408

main65700-92801iBU30,HU30,RU30..TB197708-197912

main65700-92802iBU30,HU30,RU30..TB197912-198008

main65700-92804iBU30..T2198302-198408

main65700-92821iBU36198302-198408

main65700-92855iBU3#,HU30,RU30..TB198008-198204

main65700-92857iBU30,32,RU30..T3198204-198408

main65700-92870iBU40,HU40,50,WU40198204-198408

main65700-93100iRU25198304-198408

SAUDI ARABIA SPEC

main65700-95025iBU20,RU20..T1,TW1198008-198201

main65700-95030iBU20,RU20..T1,TW1198201-198411

main65700-95407iBU20,JU20,RU20..T3..ST197708-198408

main65700-95412iBU20,RU20..T1,TW1197708-198008

main65700-95414iBU20,HU30,RU20,30..TS..WT197708-198408

66110HINGE ASSY, TAIL GATE

main66110-95014iBU20,RU20..T1,TW1197708-198411

main66110-95407iHU30,RU30..TS197708-198408

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iBU20,RU20..T1,TW1197708-198411

66280CHAIN ASSY, TAIL GATE, RH

main66280-92201iBU20,30,32,36,40,HU40,50,RU30,WU40..TB198303-198408

main66280-92700iBU3#,HU30,RU30..TB197708-198204

main66280-92701iBU20,30,32,36,40,HU40,50,RU30..TB198204-198303

main66280-95011iBU20,HU30,JU20,RU20,30..TS197708-198408

main66280-95015iBU20,RU20..T1,TW1198008-198411

66290CHAIN ASSY, TAIL GATE, LH

main66280-92201iBU20,30,32,36,40,HU40,50,RU30,WU40..TB198303-198408

main66280-92701iBU20,30,32,36,40,HU40,50,RU30..TB198204-198303

main66280-95011iBU20,RU20..T3197708-198408

main66280-95015iBU20,RU20..T1,TW1198008-198411

main66290-92700iBU3#,HU30,RU30..TB197708-198204

66411BRACKET, GUARD FRAME, RH

main66401-95401iBU20,HU30,JU20,RU20,30..(T3,TW1)..TS197708-198408

66412BRACKET, GUARD FRAME, LH

main66402-95401iBU20,HU30,JU20,RU20,30..(T3,TW1)..TS197708-198408

6612195012HINGE, TAIL GATE, MALE

main66121-95012

9017908123

main90179-08123

9111140816

main91111-40816

9161540820

main91615-40820

9165140820

main91651-40820

9327018014

main93270-18014

9411040800

main94110-40800

15 parts on this diagram · 5 diagrams in section
