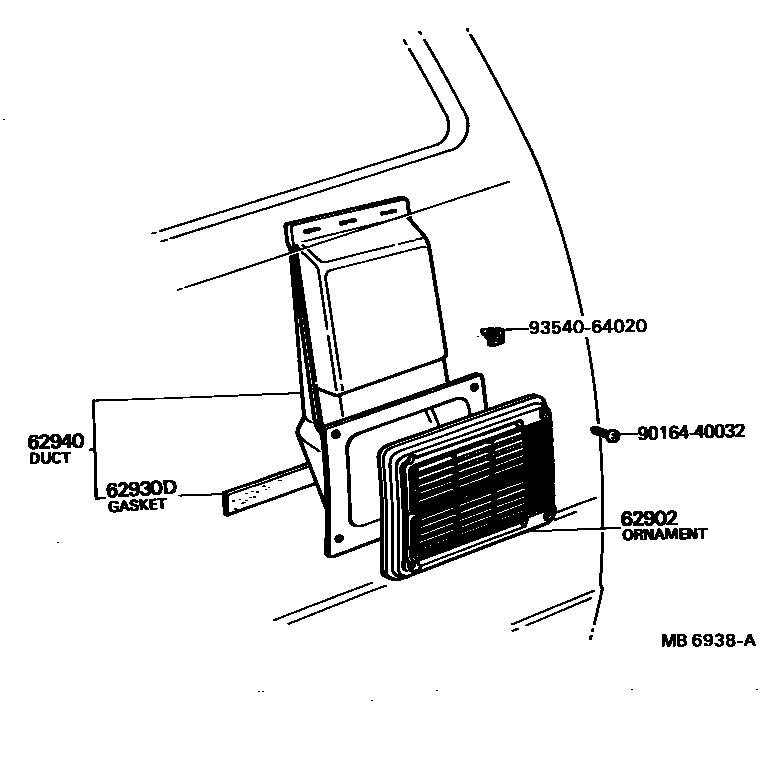

REAR VENTILATOR & ROOF VENTILATOR

0001 1 0002 1

62902ORNAMENT SUB-ASSY, REAR VENTILATOR, LH

main61513-95A00iBU20,JU20,RU20..HRF,SRF197708-198408

62930DGASKET, ROOF SIDE VENT DUCT

main61517-95A00iBU20,JU20,RU20..V197708-198408

62940DUCT ASSY, ROOF SIDE VENT, LH

main61510-95A00iBU20,JU20,RU20..HRF,SRF197708-198408

9016440032

main90164-40032

9354064020

main93540-64020

5 parts on this diagram · 2 diagrams in section
