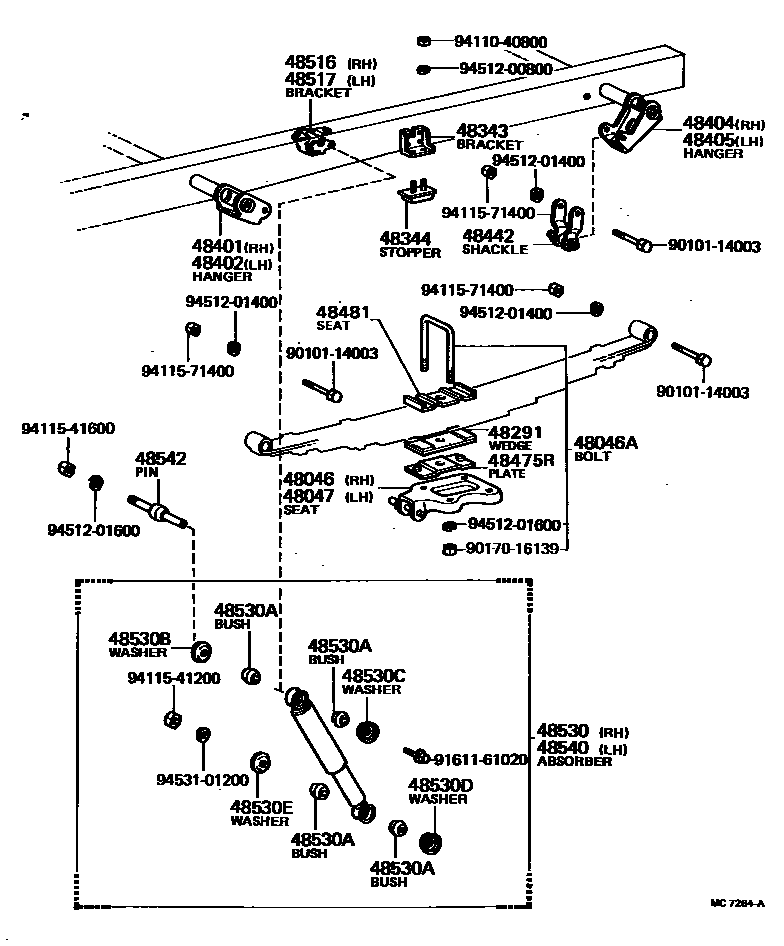

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0017 1 0018 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main42152-36030iBU36..LHD198402-198408

*AXC=Q194

main48046-36090iBU20,JU20,RU20..ST197708-198411

main48046-36120iBU20..TS..WT197708-198408

sub48046-36121

main48046-36140iBU20..TB198302-198408

48046ABOLT, U(FOR REAR SPRING)

main90118-16060×4iBU20,RU20..HRF,SRF198008-198408

L=205,5-LEAF SPRING

sub90118-16219

main90118-16063×4iBU20,RU20,30..EUR198008-198408

sub90118-16221

main90118-16065×2iBU30,RU30197711-198008

L=255,L=255

sub90118-16226

main90118-16066×2iBU32..GEN198104-198408

L=285,W/13-LEAF & PLATE,L=285

sub90118-16235

main90118-16105×4iBU20,JU20,RU20..V197708-198008

L=240,W/CASTER WEDGE,L=240

sub90118-16230

main90118-16119×2iBU20,RU20..TS..WT..GEN197910-198411

L=275,W/12-LEAF & PLATE,L=275

sub90118-16228

main90118-16154×4iBU20,RU20..(TR,V)..ST..(ARL,GEN)198008-198411

L=225,7-LEAF SPRING

sub90117-16007

main90118-16156×4iBU20..TB198302-198408

L=220

sub90118-16222

main90118-16157×4iBU20,RU20..TS..WT..GEN197910-198411

L=265,W/12-LEAF SPRING,L=265

sub90118-16227

main90118-16164×4iBU30..EUR197711-198008

L=245,L=245

sub90118-16225

main90118-18199×4iBU40,HU40,50,WU40,50198204-198408

L=330

sub90118-18211

main90118-18209×4iWU40..RHD..IV3198304-198408

THAILAND SPEC

sub90118-18212

main90118-18210×4iBU36..LHD198402-198408

*AXC=Q194

sub90117-18004

sub90170-18158

sub94512-01800

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main42152-36030iBU40,HU40,50,WU40,50198204-198408

main48047-36090iBU20,JU20,RU20..ST197708-198411

main48047-36120iBU23,25,3#,HU30,RU2#,30..WT197708-198411

sub48047-36121

main48047-36140iBU20..TB197708-198408

48291WEDGE, CASTER(FOR REAR LEAF SPRING)

main48191-36060×2iBU20,JU20,RU20..V197708-198008

T=11

main48191-36070×2iBU20,JU20,RU20..V197708-198008

T=8.5

48343BRACKET, REAR AXLE CUSHION

main48343-36010×2iBU20,JU20,RU20..ST197708-198411

48344STOPPER, BUMPER, REAR

main48344-36040×2iBU20,JU20,RU20..ST197708-198411

main48344-36050×2iBU32..GEN198104-198408

main48344-36090×2iBU30..T2198302-198408

main48344-36100×2iBU32..ARL;BU31,36,HU30197708-198408

main48344-36130×2iBU40,HU40,50,WU40,50198204-198408

sub48344-36190

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-36060iBU20,JU20,RU20..ST197708-198411

main48414-36090iBU20,23,30,31,32,HU30,RU20,30..WT197708-198411

main48414-36120iBU25,RU25197803-198408

main48414-36150iBU40,HU40,50,WU40,50198204-198408

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-36060iBU20,JU20,RU20..ST197708-198411

main48414-36090iBU20,23,30,31,32,HU30,RU20,30..WT197708-198411

main48414-36150iBU40,HU40,50,WU40,50198204-198408

main48415-36040iBU25,RU25197803-198408

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-36080iBU20,JU20,RU20..ST197708-198411

main48416-36110iBU20,23,30,31,32,HU30,RU20,30..WT197708-198411

main48416-36140iBU25,RU25197803-198408

main48416-36160iBU40,HU40,50,WU40,50198204-198408

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-36080iBU20,JU20,RU20..ST197708-198411

main48416-36110iBU20,23,30,31,32,HU30,RU20,30..WT197708-198411

main48416-36140iBU25,RU25197803-198408

main48416-36160iBU40,HU40,50,WU40,50198204-198408

48442SHACKLE, SPRING, NO.2

main48042-36020×2iBU2#,30,HU30,JU20,RU2#,30197708-197901

main48042-36021×2iBU2#,3#,HU30,JU20,RU2#,30197901-198411

main48042-37901×2iBU40,HU40,50,WU40,50198204-198408

48475RPLATE, DISTANCE(FOR REAR)

main48475-36051iBU23,25,3#,HU30,JU20,RU2#,30197710-198411

48481SEAT, REAR SPRING, UPPER

main48481-36020×2iBU25,RU25197803-198408

main48481-36040×2iBU23,3#,HU30,RU20,30197708-198411

main48481-37011×2iBU36..LHD198402-198408

*AXC=Q194

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36030iBU25,RU25197803-198408

main48516-36020iBU20,JU20,RU20..ST197708-198411

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48506-36030iBU25,RU25197803-198408

main48516-36020iBU20,JU20,RU20..ST197708-198411

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39275iBU2#,30,HU30,RU2#,30..WT197708-197910

main48531-39276iBU23,25,3#,HU30,RU2#,30..WT197910-198411

MARK 48531-36080

sub48531-39277

main48531-39285iBU20,JU20,RU20..ST197708-197910

main48531-39445iBU20..TB198302-198408

MARK 48531-36070

sub48531-39446

main48531-39455iBU20,RU20..ST197910-198411

MARK 48531-36080

sub48531-39277

main48531-39515iBU40,HU40,50,WU40,50198204-198408

MARK 48531-36120

sub48531-39516

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007×8iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003×2iBU23,25,3#,40,HU30,40,50,RU2#,30,WU40,50..WT197708-198411

main90948-03004×2iBU20,JU20,RU20..ST197708-198411

main90948-03007×2iBU20..TB198302-198408

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004×2iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..WT197708-198411

main90948-03007×2iBU20,JU20,RU20..ST197708-198411

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003×2iBU2#,3#,HU30,JU20,RU2#,30197708-198411

main90948-03004×2iBU40,HU40,50,WU40,50198204-198408

main90948-03007×2iBU20..TB198302-198408

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iBU2#,3#,HU30,JU20,RU2#,30197708-198411

main90948-03007×2iBU40,HU40,50,WU40,50198204-198408

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39275iBU2#,30,HU30,RU2#,30..WT197708-197910

main48531-39276iBU23,25,3#,HU30,RU2#,30..WT197910-198411

MARK 48531-36080

sub48531-39277

main48531-39285iBU20,JU20,RU20..ST197708-197910

main48531-39445iBU20..TB198302-198408

MARK 48531-36070

sub48531-39446

main48531-39455iBU20,RU20..ST197910-198411

MARK 48531-36080

sub48531-39277

main48531-39515iBU40,HU40,50,WU40,50198204-198408

MARK 48531-36120

sub48531-39516

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-36020×2iBU20,JU20,RU20..ST197708-198411

sub48542-37030

main48542-36040×2iBU20..TB198302-198408

9010114003

main90101-14003

9017016139

main90170-16139

9161161020

main91611-61020

9411040800

main94110-40800

9411541200

main94115-41200

9411541600

main94115-41600

9411571400

main94115-71400

9451200800

main94512-00800

9451201400

main94512-01400

9451201600

main94512-01600

9453101200

main94531-01200

34 parts on this diagram · 14 diagrams in section
