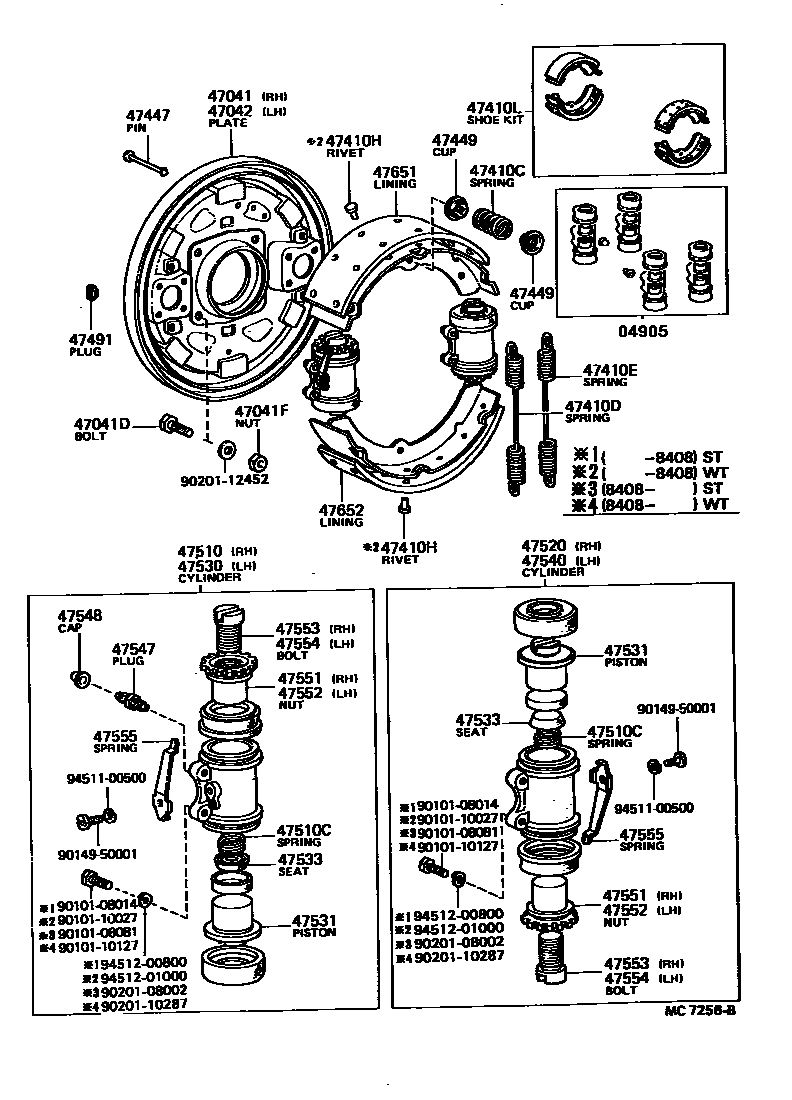

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-25020iBU20,RU20..ST197904-198411

main04905-36030iBU20,JU20,RU20..ST197708-197904

main04905-36041iBU2#,30,HU30,RU2#,30..WT197708-198411

main04905-36060iBU40,HU40,50,WU40,50198204-198408

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-25020iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG198204-198411

main47041-25040iBU20,30..T3..WT;BU23,25,31,32,36,RU2#,30..WT198204-198411

main47041-36050iBU20,JU20,RU20..ST197708-198008

main47041-36060iBU2#,30,HU30,RU2#,30..WT197708-198008

main47041-36070iBU20,RU20..ST198008-198204

main47041-36080iBU2#,3#,HU30,RU2#,30..WT198008-198204

main47041-36100iBU40,HU40,50,WU40,50198204-198408

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12021iBU2#,3#,HU30,JU20,RU2#,30197708-198411

main90114-14003iBU40,HU40,50,WU40,50198204-198408

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90170-14002iBU40,HU40,50,WU40,50198204-198408

main94115-71200iBU2#,3#,HU30,JU20,RU2#,30197708-198411

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-25010iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG198204-198411

main47042-25030iBU20,30..T3..WT;BU23,25,31,32,36,RU2#,30..WT198204-198411

main47042-36020iBU20,JU20,RU20..ST197708-198008

main47042-36030iBU2#,30,HU30,RU2#,30..WT197708-198008

main47042-36040iBU20,RU20..ST198008-198204

main47042-36050iBU2#,3#,HU30,RU2#,30..WT198008-198204

main47042-36070iBU40,HU40,50,WU40,50198204-198408

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26372iBU20,JU20,RU20..ST197708-197904

main90506-29006iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP197904-198411

main90506-29216iBU20,30..T3..WT;BU23,25,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..WT197708-198408

main90507-29006iBU20,30..WT198408-198411

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26372iBU20,JU20,RU20..ST197708-197904

main90506-29006iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP197904-198411

main90506-29216iBU20,30..T3..WT;BU23,25,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..WT197708-198408

main90507-29006iBU20,30..WT198408-198411

47410HRIVET, BRAKE LINING(FOR FRONT BRAKE)

main90266-05005iBU20,30..T3..WT;BU23,25,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..WT197708-198411

47410LSHOE KIT, FRONT BRAKE

main04494-36040iBU20,JU20,RU20..ST197708-198008

main04494-36041iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP198008-198408

main04494-36050iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT197708-198411

main04494-36070iBU40,HU40,50,WU40,50198204-198408

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-35020iBU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP197708-198408

main47447-36020iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT197708-198411

main47447-60010iBU40,HU40,50,WU40,50198204-198408

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-29195iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP197904-198408

main47510-39125iBU20,JU20,RU20..ST197708-197904

main47510-39135iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT197708-198411

main47510-39185iBU40,HU40,50,WU40,50198204-198408

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-10759iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-29115iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP197904-198411

main47520-39095iBU20,JU20,RU20..ST197708-197904

main47520-39105iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT197708-198411

main47520-39145iBU40,HU40,50,WU40,50198204-198408

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-29195iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP197904-198411

main47530-39125iBU20,JU20,RU20..ST197708-197904

main47530-39135iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT197708-198411

main47530-39185iBU40,HU40,50,WU40,50198204-198408

47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

main47531-36032iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT197708-198411

main47531-36110iBU40,HU40,50,WU40,50198204-198408

main47531-60010iBU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP197708-198411

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-25010iBU2#,3#,HU30,JU20,RU2#,30197708-198411

main47533-36031iBU40,HU40,50,WU40,50198204-198408

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-29115iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP197904-198411

main47540-39095iBU20,JU20,RU20..ST197708-197904

main47540-39105iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT197708-198411

main47540-39145iBU40,HU40,50,WU40,50198204-198408

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-25050iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP197904-198411

LEFT SCREW

main47551-36012iBU2#,30,HU30,RU2#,30..WT197708-198008

LEFT SCREW

main47551-36041iBU20,JU20,RU20..ST197708-197904

LEFT SCREW

main47551-36110iBU20,30..T3..WT;BU23,25,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..WT198008-198411

LEFT SCREW

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-25050iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP197904-198411

RIGHT SCREW

main47552-36012iBU2#,30,HU30,RU2#,30..WT197708-198008

RIGHT SCREW

main47552-36041iBU20,JU20,RU20..ST197708-197904

RIGHT SCREW

main47552-36110iBU20,30..T3..WT;BU23,25,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..WT198008-198411

RIGHT SCREW

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36021iBU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP197708-198411

LEFT SCREW

main47553-36030iBU20,30..T3..WT;BU23,25,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..WT197708-198411

LEFT SCREW

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36021iBU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP197708-198411

RIGHT SCREW

main47554-36030iBU20,30..T3..WT;BU23,25,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..WT197708-198411

RIGHT SCREW

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-25010iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50197904-198411

main47555-36020iBU2#,30,HU30,JU20,RU2#,30197708-198008

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-36060iBU2#,3#,HU30,RU2#,30..WT197708-198411

main47651-36070iBU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP197708-198411

main47651-36090iBU40,HU40,50,WU40,50198204-198408

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-36060iBU2#,3#,HU30,RU2#,30..WT197708-198411

main47651-36070iBU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP197708-198411

main47651-36090iBU40,HU40,50,WU40,50198204-198408

9010108014

main90101-08014

9010108081

main90101-08081

9010110027

main90101-10027

9010110127

main90101-10127

9014950001

main90149-50001

9020108002

main90201-08002

9020110287

main90201-10287

9020112452

main90201-12452

9451100500

main94511-00500

9451200800

main94512-00800

9451201000

main94512-01000

40 parts on this diagram · 1 diagram in section
