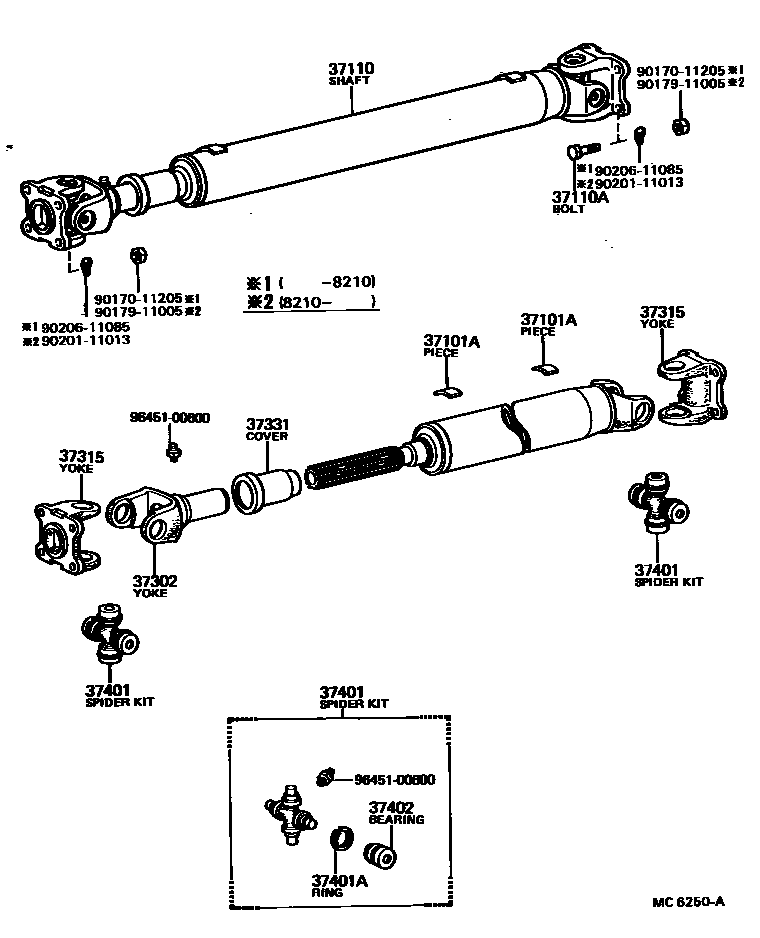

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0003 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

10G,L=20.7,10G

main90937-01136iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

20G,L=41.4,20G

main90937-01140iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

30G,L=62.2,30G

main90937-01147iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

2G,T=2.0,2G

main90937-01148iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

4G,T=2.0,4G

main90937-01149iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

6G,L=12.4,6G

main90937-01150iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

8G,L=16.6,8G

main90937-01151iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

12G,L=24.9,12G

main90937-01152iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

14G,L=29.0,14G

main90937-01153iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

16G,L=33.2,16G

main90937-01154iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

18G,L=37.3,18G

main90937-01155iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

22G,L=45.6,22G

main90937-01156iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

24G,L=49.7,24G

main90937-01157iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

26G,L=53.9,26G

main90937-01158iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

28G,L=58.1,28G

37110SHAFT ASSY, PROPELLER

main37110-25270iBU20198408-198411

main37110-36201iBU30,RU30197708-198204

main37110-36202iBU30,RU30198204-198408

main37110-36290iBU20,JU20,RU20197708-198204

main37110-36330iHU30197708-197904

main37110-36350iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-197812

DUMP SPEC

main37110-36351iBU20..TS..WT..(ARL,GEN)..IV3198204-198408

DUMP SPEC

main37110-36360iBU25,RU25197803-198008

main37110-36361iBU25198204-198408

main37110-36370iBU31,32,HU30197904-198204

main37110-36371iBU31,32198204-198408

main37110-36381iBU36198302-198408

main37110-36390iRU25198008-198108

main37110-36391iRU25198108-198204

main37110-36392iRU25198204-198408

main37110-36431iBU40,HU40,WU40198204-198408

main37110-36441iHU50,WU50198204-198408

main37110-36471iBU23198312-198408

main37110-36480iRU25198304-198408

S.ARABIA SPEC

main37110-36550iBU30198408-198411

37110ABOLT (FOR PROPELLER SHAFT)

main90101-11468×8iBU2#,3#,40,HU30,40,50,JU20,RU2#,30197708-198210

main90105-11013×8iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198210-198411

*11-1.00PX28-16

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36010×3iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198408

main37315-36020×3iBU20,30198408-198411

37331COVER, SLIDING SHAFT DUST

main37305-25010iBU2#,3#,HU30,JU20,RU2#,30197708-198204

main37305-36010iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198204-198411

37401SPIDER KIT, UNIVERSAL JOINT

main04371-36021×3iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198408

main04371-36030×3iBU20,30198408-198411

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29002×12iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198101-198408

T=1.53,T=1.63

main90520-29024×12iBU20,30198408-198411

T=2.00,NO MARK,T=2.00

main90520-29025×12iBU20,30198408-198411

T=2.03,BROWN,T=2.03

main90520-29026×12iBU20,30198408-198411

T=2.06,BLUE,T=2.06

main90520-29027×12iBU20,30198408-198411

T=2.09,NO MARK,T=2.09

main90520-29286×12iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198408

T=1.50,T=1.50

main90520-29287×12iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198408

T=1.56,T=1.56

main90520-29288×12iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198408

T=1.59,T=1.59

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36060×12iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198408

main37402-36080×12iBU20,30198408-198411

9017011205

main90170-11205

9017911005

main90179-11005

9020111013

main90201-11013

9020611085

main90206-11085

9645100600

main96451-00600

14 parts on this diagram · 2 diagrams in section
