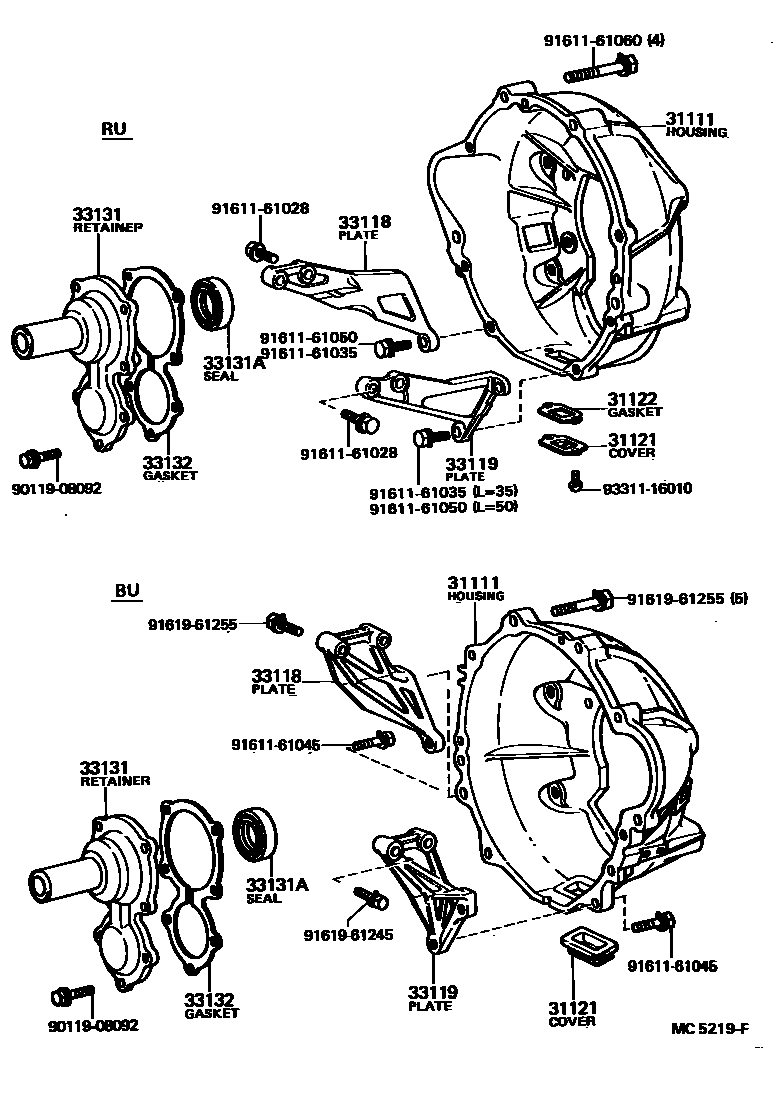

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

31111HOUSING, CLUTCH

main31111-36022iJU20197708-197904

RR

main31111-36030iHU30197708-198104

main31111-36050iBU2#,3#,40197708-198411

main31111-36080iRU2#,30197708-198007

main31111-36081iRU2#,30198007-198102

main31111-36082iRU2#,30198102-198408

main31111-36110iWU40,50198304-198408

main31111-60060iHU40,50198204-198408

main31112-36030iJU20197708-197904

FR

31121COVER, CLUTCH HOUSING, NO.1

main31121-36010iJU20197708-197904

main31121-36020iHU30197708-198104

main31121-36040iBU2#,3#,40197708-198411

main31121-36050iRU2#,30197708-198408

31122GASKET, CLUTCH HOUSING COVER

main31122-36010iRU2#,30197708-198408

33118PLATE, STIFFENER, RH(MTM)

main33118-20060iRU2#,30198007-198102

main33118-25030iRU2#,30198102-198408

main33118-36010iBU2#,3#,40197708-198405

main33118-36020iBU2#,3#,40198405-198411

main33118-60010iHU40,50198204-198408

main33118-89102iWU40,50198304-198408

33119PLATE, STIFFENER, LH(MTM)

main33119-20061iRU2#,30198007-198102

main33119-25031iRU2#,30198102-198408

main33119-36010iBU2#,3#,40197708-198411

main33119-60010iHU40,50198204-198408

main33119-89101iWU40,50198304-198408

33131RETAINER, BEARING, FRONT(MTM)

main33131-36011iBU20..TS..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33131-36011iBU25,RU25197803-198008

main33131-36022iBU20,30,RU2#,30197708-198110

main33131-36023iBU20,30,RU2#,30198110-198411

main33131-60020iHU30,40,50197708-198408

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-28004iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main90311-28004iBU25,HU30,RU25197708-198008

main90311-32106iBU20,30,RU2#,30197708-198411

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-36010iBU25,HU30,RU25197708-198008

main33132-36010iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33132-36022iBU20,30,JU20,RU20,30197708-198411

9011908092

main90119-08092

9161161028

main91611-61028

9161161035

main91611-61035

9161161045

main91611-61045

9161161050

main91611-61050

9161161060

main91611-61060

9161961245

main91619-61245

9161961255

main91619-61255

9331116010

main93311-16010

17 parts on this diagram · 5 diagrams in section
