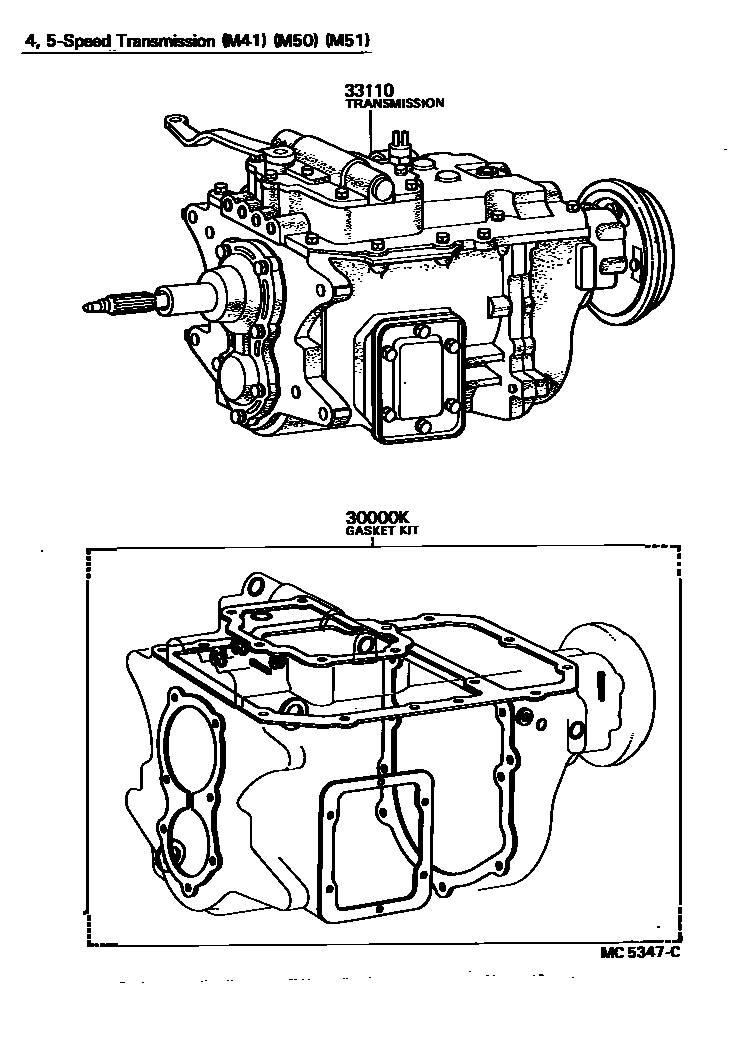

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36023iBU20..WT..(ARL,GEN)..IV3197708-198408

H50T/M

main04331-36023iBU23,25,31,32,36,40,HU30,40,50,WU40,50197708-198408

H50T/M,DUMP SPEC

main04331-36031iRU20,30..4F,4H197708-198408

M41T/M

main04331-36041iBU20,30,RU2#,30..5F,5H197708-198411

M50,M51T/M

33110TRANSMISSION ASSY, MANUAL

main33030-36010iRU20..5H..WT..IV3197708-197904

SMG=4,H50T/M,DUMP SPEC

main33030-36010iRU25..RHD..GEN197803-197810

SMG R=19:4,H50T/M

main33030-36010iRU25..GEN197810-197904

SMG=4,H50T/M

main33030-36030iBU20..WT..GEN..IV3197708-197904

SMG=4,H50T/M,DUMP SPEC

main33030-36030iBU25197810-197904

SMG=4,H50T/M

main33030-36030iBU25197803-197806

SMG R=17:4,H50T/M

main33030-36031iBU20..WT..GEN..IV3197904-197912

SMG=4,H50T/M,DUMP SPEC

main33030-36031iBU20..WT..GEN..IV3197904-197912

SMG=4,H50T/M

main33030-36040iBU25197810-197904

SMG=4,H50T/M,TILT CAB

main33030-36040iBU20..5H..WT..GEN..IV3197810-197904

SMG=4,H50,TILT CAB,DUMP SPEC

main33030-36041iBU25197904-197912

SMG=4,H50,TILT CAB,DUMP SPEC

main33030-36041iBU25197904-197912

SMG=4,H50T/M,TILT CAB

main33030-36060iHU30..TS197708-197904

SMG=4,H50T/M

main33030-36070iHU30..TB197708-197903

SMG=4,H50T/M

main33030-36080iRU20..LHD..4H197708-197804

SMG R=16:4,M41T/M

main33030-36080iRU20..4H197804-197904

SMG=4,M41T/M

main33030-36140iRU20..EUR197904-197912

SMG=4,M51T/M

main33030-36150iRU20..TW1197708-197904

SMG=4,M51T/M

main33030-36150iRU20..RHD..5H..ST197708-197804

SMG R=18:4,M51T/M

main33030-36180iRU30..TS..ARL;RU20,30..WT..GEN197804-197912

SMG=4,M51T/M

main33030-36210iJU20197804-197904

SMG=4,M51T/M

main33030-36230iBU20..LHD..ST..GEN197708-197804

SMG R=18:5,M50T/M

main33030-36230iBU20..LHD..ST..GEN197708-197804

SMG R=19:5,M50T/M

main33030-36230iBU20..TS..ST197804-197904

SMG=5,M50T/M

main33030-36231iBU20..V197904-197912

SMG=5,M50T/M

main33030-36240iBU20..LHD..WT..GEN197708-197804

SMG R=16:4,M50T/M

main33030-36240iBU20,30..WT197804-197904

SMG=4,M50T/M

main33030-36241iBU20,30..WT197904-197912

SMG=4,M50T/M

main33030-36250iBU20,30..RHD..WT197708-197904

SMG=4,M50T/M,W/*EB

main33030-36250iBU20..RHD..WT197708-197804

SMG R=16:4,M50T/M

main33030-36251iBU20,30..RHD..WT..GEN197904-197912

SMG=4,M50T/M,W/*EB

main33030-36330iRU20..WT..ARL197804-197912

SMG=4,M51T/M

main33030-36340iRU20,30..WT..ARL197804-197912

SMG=4,M51T/M

main33030-36350iRU25..RHD197803-197810

SMG R=19:4,H50T/M,TILT CAB

main33030-36350iRU20..5H..WT..IV3197810-197904

SMG=4,H50,TILT CAB,DUMP SPEC

main33030-36350iRU25197810-197904

SMG=4,H50T/M,TILT CAB

main33030-36350iRU25..LHD197806-197810

SMG R=19:4,H50T/M

main33030-36360iRU20..WT..(ARL,GEN)..IV3197904-197912

SMG=4,H50T/M

main33030-36360iRU20..WT..(ARL,GEN)..IV3197904-197912

SMG=4,H50T/M,DUMP SPEC

main33030-36370iRU20..WT..(ARL,GEN)..IV3197904-197912

SMG=4,H50T/M,TILT CAB

main33030-36370iRU20..WT..(ARL,GEN)..IV3197904-197912

SMG=4,H50,TILT CAB,DUMP SPEC

main33030-36390iHU30..TS197904-197912

SMG=5,H50T/M

main33030-36400iHU30..TB197904-197912

SMG=5,H50T/M

main33030-36430iRU20..4H197904-197912

SMG=4,M41T/M

main33030-36450iRU30..EUR197904-197912

SMG=4,M51T/M

main33030-36460iRU20..T3..5H..ST..GEN;RU20..(T1,TW1,VSG,VSP)..5H197904-197912

SMG=4,M51T/M

main33030-36470iRU30..TB..ARL;RU20..T3..ST..ARL197904-197912

SMG=4,M51T/M

main33110-3B030iRU20,30..EUR197912-198006

SMG R=18:4,M51T/M

main33110-3B031iRU20,30..EUR198006-198204

SMG R=18:4,M51T/M

main33110-3B040iRU20..RHD..TS..5H..GEN197912-198006

SMG R=18:4,M51T/M

main33110-3B041iRU20..RHD..TS..5H..GEN198006-198204

SMG R=18:4,M51T/M

main33110-3B050iRU20..LHD..(5F,5H)..ST197912-198006

SMG R=18:4,M51T/M

main33110-3B050iRU20..LHD..(5F,5H)..WT..GEN197912-198006

SMG R=18:4,M51T/M,TILT CAB

main33110-3B051iRU20..LHD..(TR,V)..(5F,5H)..GEN198006-198204

SMG R=18:4,M51T/M

main33110-3B070iBU20..RHD..TS..ST197912-198006

SMG R=19:5,M50T/M,TILT CAB

main33110-3B071iBU20..RHD..TS..ST198006-198008

SMG R=19:5,M50T/M,TILT CAB

main33110-3B072iBU20..RHD..TS..ST198008-198204

SMG R=19:5,M50T/M,TILT CAB

main33110-3B080iBU20..RHD..TS..ST197912-198006

SMG R=18:5,M50T/M,TILT CAB

main33110-3B081iBU20..RHD..TS..ST198006-198008

SMG R=18:5,M50T/M,TILT CAB

main33110-3B082iBU20..RHD..TS..ST198008-198204

SMG R=18:5,M50T/M,TILT CAB

main33110-3B090iBU20..LHD..TS..ST..GEN197912-198006

SMG R=18:5,M50T/M,TILT CAB

main33110-3B091iBU20..LHD..TS..ST..GEN198006-198008

SMG R=18:5,M50T/M,TILT CAB

main33110-3B092iBU20..LHD..TS..ST..GEN198008-198204

SMG R=18:5,M50T/M,TILT CAB

main33110-3B100iBU20..LHD..TS..ST..GEN197912-198006

SMG R=19:5,M50T/M,TILT CAB

main33110-3B101iBU20..LHD..TS..ST..GEN198006-198008

SMG R=19:5,M50T/M,TILT CAB

main33110-3B102iBU20..LHD..TS..ST..GEN198008-198204

SMG R=19:5,M50T/M,TILT CAB

main33110-3B110iBU20..RHD..ST197912-198006

SMG R=18:5,M50T/M

main33110-3B111iBU20..RHD..ST198006-198204

SMG R=18:5,M50T/M

main33110-3B120iBU20..RHD..ST197912-198006

SMG R=19:5,M50T/M

main33110-3B121iBU20..RHD..ST198006-198204

SMG R=19:5,M50T/M

main33110-3B130iBU20..LHD..ST..GEN197912-198006

SMG R=18:5,M50T/M

main33110-3B131iBU20..LHD..(TR,V)..ST..GEN198006-198204

SMG R=18:5,M50T/M

main33110-3B140iBU20..LHD..ST..GEN197912-198006

SMG R=19:5,M50T/M

main33110-3B141iBU20..LHD..(TR,V)..ST..GEN198006-198204

SMG R=19:5,M50T/M

main33110-3B150iBU20..ST..EUR197912-198006

SMG R=18:5,M50T/M

main33110-3B151iBU20..ST..EUR198006-198204

SMG R=18:5,M50T/M

main33110-3B160iBU20..ST..EUR197912-198006

SMG R=19:5,M50T/M

main33110-3B161iBU20..ST..EUR198006-198204

SMG R=19:5,M50T/M

main33110-3B170iBU20..RHD..WT..GEN197912-198006

SMG R=16:4,M50T/M

main33110-3B171iBU20..RHD..WT..GEN198006-198204

SMG R=16:4,M50T/M

main33110-3B180iBU20..RHD..WT..GEN197912-198006

SMG R=17:4,M50T/M

main33110-3B181iBU20..RHD..WT..GEN198006-198204

SMG R=17:4,M50T/M

main33110-3B190iBU20..LHD..WT..GEN197912-198006

SMG R=16:4,M50T/M

main33110-3B191iBU20..LHD..WT..GEN198006-198204

SMG R=16:4,M50T/M

main33110-3B200iBU20..LHD..WT..GEN197912-198006

SMG R=17:4,M50T/M

main33110-3B201iBU20..LHD..WT..GEN198006-198204

SMG R=17:4,M50T/M

main33110-3B210iBU30..RHD197912-198006

SMG R=17:4,M50T/M

main33110-3B211iBU30..RHD198006-198204

SMG R=17:4,M50T/M

main33110-3B220iBU20..WT..EUR197912-198006

SMG R=17:4,M50T/M

main33110-3B221iBU20..WT..EUR198006-198204

SMG R=17:4,M50T/M

main33110-3B230iBU20..WT..EUR197912-198006

SMG R=16:4,M50T/M

main33110-3B231iBU20..WT..EUR198006-198204

SMG R=16:4,M50T/M

main33110-3B240iBU20..RHD..WT..GEN197912-198006

SMG R=17:4,M50T/M,W/*EB

main33110-3B241iBU20..RHD..WT..GEN198006-198008

SMG R=17:4,M50T/M,W/*EB

main33110-3B242iBU20..RHD..WT..GEN198008-198204

SMG R=17:4,M50T/M,W/*EB

main33110-3B250iBU20..RHD..WT..GEN197912-198006

SMG R=16:4,M50T/M

main33110-3B250iBU20..RHD..WT..GEN197912-198006

SMG R=16:4,M50T/M,W/*EB

main33110-3B251iBU20..RHD..WT..GEN198006-198008

SMG R=16:4,M50T/M,W/*EB

main33110-3B251iBU20..ARL198006-198008

SMG R=16:4,M50T/M

main33110-3B252iBU20..RHD..WT..GEN198008-198204

SMG R=16:4,M50T/M,W/*EB

main33110-3B252iBU20..ARL198008-198104

main33110-3B260iBU20..LHD..WT..GEN197912-198006

SMG R=17:4,M50T/M,TILT CAB

main33110-3B261iBU20..LHD..WT..GEN198006-198008

SMG R=17:4,M50T/M,TILT CAB

main33110-3B262iBU20..LHD..WT..GEN198008-198204

SMG R=17:4,M50T/M,TILT CAB

main33110-3B270iBU20..LHD..WT..GEN197912-198006

SMG R=16:4,M50T/M,TILT CAB

main33110-3B271iBU20..LHD..WT..GEN198006-198008

SMG R=16:4,M50T/M,TILT CAB

main33110-3B272iBU20..LHD..WT..GEN198008-198204

SMG R=16:4,M50T/M,TILT CAB

main33110-3B280iBU30..RHD197912-198006

SMG R=17:4,M50,W/*EB,TILT CAB

main33110-3B281iBU30..RHD198006-198008

SMG R=17:4,M50,W/*EB,TILT CAB

main33110-3B282iBU30..RHD198008-198204

SMG R=17:4,M50,W/*EB,TILT CAB

main33110-3B290iBU30..LHD..GEN197912-198006

SMG R=17:4,M50T/M,TILT CAB

main33110-3B291iBU30..LHD..GEN198006-198008

SMG R=17:4,M50T/M,TILT CAB

main33110-3B292iBU30..LHD198008-198204

SMG R=17:4,M50T/M,TILT CAB

main33110-3B300iRU20..T3..ARL197912-198006

SMG R=18:4,M51T/M,TILT CAB

main33110-3B300iRU20..RHD..WT..GEN197912-198006

SMG R=18:4,M51T/M

main33110-3B301iRU20..RHD..WT..GEN198006-198008

SMG R=18:4,M51T/M,TILT CAB

main33110-3B301iRU20..RHD..WT..GEN198006-198008

SMG R=18:4,M51T/M

main33110-3B302iRU20..RHD..5H..WT198008-198204

SMG R=18:4,M51T/M,TILT CAB

main33110-3B310iRU20..LHD..5H..ST197912-198006

SMG R=18:4,M51T/M,TILT CAB

main33110-3B311iRU20..LHD..5H..ST198006-198008

SMG R=18:4,M51T/M,TILT CAB

main33110-3B312iRU20..LHD..(5F,5H)..WT..GEN198008-198204

SMG R=18:4,M51T/M,TILT CAB

main33110-3B320iRU20..RHD..4H197912-198006

SMG R=16:4,M41T/M

main33110-3B321iRU20..RHD..4H..ST198006-198104

SMG R=16:4,M41T/M

main33110-3B330iRU20..RHD..4H197912-198006

SMG R=18:4,M41T/M

main33110-3B331iRU20..RHD..4H198006-198008

SMG R=18:4,M41T/M

main33110-3B340iRU20..LHD..(4F,4H)..ST197912-198006

SMG R=16:4,M41T/M

main33110-3B341iRU20..LHD..(4F,4H)..ST198006-198204

SMG R=16:4,M41T/M

main33110-3B350iRU20..LHD..TS..4H..ST197912-198006

SMG R=18:4,M41T/M

main33110-3B351iRU20..LHD..TS..4H..ST198006-198008

SMG R=18:4,M41T/M

main33110-3B400iRU20..RHD..(T1,T3)..5H..ST..GEN197912-198006

SMG R=16:4,M51T/M

main33110-3B401iRU20..RHD..(TW1,VSG,VSP)198006-198008

SMG R=16:4,M51T/M

main33110-3B401iRU20..RHD..5H..ST198008-198204

SMG.R=16:4,M51T/M

main33110-3B410iRU20..LHD..(5F,5H)..ST197912-198006

SMG R=16:4,M51T/M

main33110-3B411iRU20..LHD..(5F,5H)..ST198006-198204

SMG R=16:4,M51T/M

main33110-3B420iRU30..TS..ARL;RU30..RHD..GEN197912-198006

SMG R=18:4,M51T/M

main33110-3B421iRU30..TS..ARL;RU30..RHD..GEN198006-198101

SMG R=18:4,M51T/M

main33110-3B421iRU20..RHD..5H..GEN..IV3198008-198101

SMG R=18:4,DUMP SPEC

main33110-3B422iRU30..TS..ARL;RU30..RHD..GEN198101-198204

SMG R=18:4,M51T/M

main33110-3B422iRU30..TS..ARL;RU30..RHD..GEN198101-198204

SMG R=18:4,DUMP SPEC

main33110-3B430iRU30..LHD..(5F,5H)..GEN197912-198006

SMG R=18:4,M51T/M

main33110-3B431iRU30..LHD..(5F,5H)..GEN198006-198101

SMG R=18:4,M51T/M

main33110-3B431iRU25198008-198101

SMG R=18:4

main33110-3B431iRU25198008-198101

SMG R=18:4,DUMP SPEC

main33110-3B432iRU25198101-198204

SMG R=18:4,M51T/M

main33110-3B432iRU25198101-198204

SMG R=18:4,DUMP SPEC

main33110-3B432iRU25198101-198204

SMG R=18:4

main33110-3B440iRU20..T3..ST..ARL197912-198006

SMG R=16:4,M51T/M

main33110-3B440iRU20..RHD..(T1,T3)..5H..ST..GEN197912-198006

SMG R=16:4,M51T/M,TILT CAB

main33110-3B441iRU20..T3..ST..ARL198006-198008

SMG R=16:4,M51T/M

main33110-3B441iRU20..RHD..(T1,T3)..5H..ST..GEN198006-198008

SMG R=16:4,M51T/M,TILT CAB

main33110-3B450iRU20..(T1,T3)..(5F,5H)..GEN197912-198006

SMG R=16:4,M51T/M,TILT CAB

main33110-3B451iRU20..(T1,T3)..(5F,5H)..GEN198006-198008

SMG R=16:4,M51T/M,TILT CAB

main33110-3B460iRU30..TB..ARL197912-198006

SMG R=18:4,M51T/M

main33110-3B461iRU30..TB..ARL198006-198008

SMG R=18:4,M51T/M

main33110-3B462iRU20..RHD..5H..IV3198008-198101

SMG R=18:4,M51T/M

main33110-3B462iRU30..RHD..TB198008-198101

SMG R=18:4,TILT CAB,DUMP SPEC

main33110-3B463iRU20..RHD..5H..GEN..IV3198101-198204

SMG R=18:4,TILT CAB,DUMP SPEC

main33110-3B463iRU30..RHD..TB198101-198204

SMG R=18:4,M51T/M

main33110-3B470iRU20..RHD..4H197912-198006

SMG R=16:4,M41T/M,TILT CAB

main33110-3B471iRU20..RHD..4H198006-198008

SMG R=16:4,M41T/M,TILT CAB

main33110-3B472iRU20..RHD..4H..ST198008-198104

SMG R=16:4,M41T/M,TILT CAB

main33110-3B480iRU20..RHD..4H197912-198006

SMG R=18:4,M41T/M,TILT CAB

main33110-3B481iRU20..RHD..4H198006-198008

SMG R=18:4,M41T/M,TILT CAB

main33110-3B490iRU20..LHD..TS..4H..ST197912-198006

SMG R=16:4,M50T/M,TILT CAB

main33110-3B491iRU20..LHD..TS..4H..ST198006-198008

SMG R=16:4,M50T/M,TILT CAB

main33110-3B492iRU20..BUS..4H;RU20..LHD..(T1,T3)..ST198008-198204

SMG R=16:4,M50T/M,TILT CAB

main33110-3B500iRU20..LHD..TS..4H..ST197912-198006

SMG R=18:4,M50T/M,TILT CAB

main33110-3B501iRU20..LHD..TS..4H..ST198006-198008

SMG R=18:4,M50T/M,TILT CAB

main33110-3B520iBU20..RHD..WT..GEN..IV3197912-198008

SMG R=17:4,H50T/M,DUMP SPEC

main33110-3B521iBU20..RHD..WT..GEN..IV3198008-198204

SMG R=17:4,H50T/M,DUMP SPEC

main33110-3B530iBU20..LHD..WT..GEN..IV3197912-198008

SMG R=17:4,H50T/M

main33110-3B530iBU25197912-198008

SMG R=17;4,H50T/M,DUMP SPEC

main33110-3B531iBU20..LHD..WT..GEN..IV3198008-198204

SMG R=17:4,H50T/M,DUMP SPEC

main33110-3B531iBU20..LHD..WT..GEN..IV3198008-198204

SMG R=17:4,H50T/M

main33110-3B540iBU20..RHD..WT..IV3197912-198008

SMG R=17:4,DUMP SPEC,W/*EB

main33110-3B542iBU20..ARL..IV3198008-198204

SMG R=17:4,DUMP SPEC

main33110-3B570iBU25197912-198008

SMG R=17:4,H50T/M,TILT CAB

main33110-3B570iBU25197912-198008

SMG R=17:4,TILT CAB,DUMP SPEC

main33110-3B572iBU25198008-198204

SMG R=17:4,H50T/M,TILT CAB

main33110-3B572iBU25198008-198204

SMG R=17:4,TILT CAB,DUMP SPEC

main33110-3B610iRU25..RHD..GEN197912-198008

SMG R=18:4,H50T/M

main33110-3B610iRU20..RHD..WT..GEN..IV3197912-198008

SMG R=18:4,H50T/M,DUMP SPEC

main33110-3B620iRU20..LHD..WT..GEN..IV3197912-198008

SMG R=18:4,H50T/M

main33110-3B620iRU20..LHD..WT..GEN..IV3197912-198008

SMG R=18:4,H50T/M,DUMP SPEC

main33110-3B630iRU25197912-198008

SMG R=18:4,H50T/M,TILT CAB

main33110-3B630iRU20..RHD..WT..IV3197912-198008

SMG R=18:4,TILT CAB,DUMP SPEC

main33110-3B640iRU25..LHD197912-198008

SMG R=18:4,TILT CAB,DUMP SPEC

main33110-3B640iRU20..LHD..WT..GEN..IV3197912-198008

SMG R=18:4,H50T/M,TILT CAB

main33110-3B660iHU30..TS;HU30..IV1197912-198008

SMG R=19:5,H50T/M

main33110-3B661iHU30..TS198008-198104

SMG R=19:5,H50T/M

main33110-3B670iHU30..RHD..(CBU,IV3)197912-198008

SMG R=19:5,H50T/M

main33110-3B672iHU30..TB..ARL198008-198104

SMG R=19:5,H50T/M

main33110-3B680iHU30..LHD197912-198008

SMG R=19:5,H50T/M

main33110-3B682iHU30..GEN198008-198104

SMG R=19:5,H50T/M

main33110-3B700iRU30..4F197912-198006

SMG R=18:4,M41T/M

main33110-3B701iRU30..4F198006-198204

SMG R=18:4,M41T/M

main33110-3B710iRU20..(4F,4H)..WT197912-198006

SMG R=17:4,M41T/M,TILT CAB

main33110-3B711iRU20..(4F,4H)..WT198006-198008

SMG R=17:4,M41T/M,TILT CAB

main33110-3B712iRU20..LHD..(4F,4H)..WT198008-198204

SMG R=17:4,M41T/M,TILT CAB

main33110-3B720iRU30..4F197912-198006

SMG R=18:4,M41T/M,TILT CAB

main33110-3B722iRU30..4F198006-198104

SMG R=18:4,M41T/M,TILT CAB

main33110-3B741iRU20..RHD..4H..WT198008-198104

SMG R=17:4,M41T/M

main33110-3B752iRU20..RHD..4H..WT198008-198104

SMG R=17:4,M41T/M,TILT CAB

main33110-3B762iRU25198008-198101

SMG R=18:4,M51T/M,TILT CAB

main33110-3B762iRU20..LHD..(5F,5H)..GEN..IV3198008-198101

SMG R=18:4,TILT CAB,DUMP SPEC

main33110-3B763iRU25198101-198204

SMG R=18:4,TILT CAB,DUMP SPEC

main33110-3B763iRU30..LHD..TB..(5F,5H)..GEN198101-198204

SMG R=18:4,M51T/M,TILT CAB

main33110-3B770iRU20..(4F,4H)..WT197912-198006

SMG R=17:4,M41T/M

main33110-3B771iRU20..(4F,4H)..WT198006-198204

SMG R=17:4,M41T/M

main33110-3B821iRU20..ARL..CBU198104-198204

SMG R=17:4

main33110-3B851iBU20..ST..EUR198008-198204

SMG R=18:5,M50T/M,TILT CAB

main33110-3B861iBU20..ST..EUR198008-198204

SMG R=19:5,M50T/M,TILT CAB

main33110-3B871iBU20..WT..EUR198008-198204

SMG R=16:4,M50T/M,TILT CAB

main33110-3B881iRU20,30..T3..EUR198008-198204

SMG R=18:4,M51T/M,TILT CAB

main33110-3B891iBU32..TB..ARL198104-198204

SMG R=19:5

main33110-3C050iRU20..RHD..4H..WT..IV3198008-198104

SMG R=17:4,DUMP SPEC

main33110-3C060iRU20..RHD..4H..WT..IV3198008-198104

SMG R=17:4,TILT CAB,DUMP SPEC

main33110-3C070iRU20..LHD..(4F,4H)..WT..IV3198008-198104

SMG R=17:4,DUMP SPEC

main33110-3C080iRU20..LHD..(4F,4H)..WT..IV3198008-198104

SMG R=17:4,TILT CAB,DUMP SPEC

main33110-3C090iBU31,32..GEN198104-198204

SMG R=19:5

main33110-3C100iBU32..TS198104-198204

SMG R=19:5

main33120-36300iBU25197806-197810

SMG R=17:4,H50T/M

main33120-36460iRU20..LHD..(5F,5H)..ST197708-197804

SMG R=16:4,M51T/M

main33120-36460iRU20..RHD..5H..ST197708-197804

SMG R=17:4,M51T/M

main33120-36520iRU20..WT..ARL197708-197804

SMG R=19:4,M51T/M

main33120-36540iJU20197708-197804

SMG R=19:5,M51T/M

main33120-36590iBU20..WT..GEN197708-197804

SMG R=17:4,M50T/M

main33120-3B010iBU40..RHD198204-198403

SMG R=17:4

main33120-3B040iHU40,50198204-198403

SMG R=19:5

main33120-3B070iRU20..4H..ST198204-198403

SMG R=16:4

main33120-3B080iRU20..TS..4H..ST198204-198403

SMG R=16:4,TILT CAB

main33120-3B090iRU20..4H..WT198204-198403

SMG R=17:4

main33120-3B100iRU20..4H..WT198204-198403

SMG R=17:4,TILT CAB

main33120-3B110iRU20..VSG..5H198204-198403

SMG R=16:4

main33120-3B120iRU20..RHD..GEN198204-198403

SMG R=18:4

main33120-3B140iRU20..RHD..WT198204-198403

SMG R=18:4,TILT CAB

main33120-3B150iRU20..LHD..(5F,5H)..ST198204-198403

SMG R=16:4

main33120-3B160iRU20..LHD..(TR,V)..(5F,5H)..GEN198204-198403

SMG R=18:4

main33120-3B170iRU20..LHD..(5F,5H)..WT..GEN198204-198403

SMG R=18:4,TILT CAB

main33120-3B180iRU20..RHD..GEN..IV3198204-198403

SMG R=18:4,DUMP SPEC

main33120-3B180iRU20..RHD..GEN..IV3198204-198408

SMG R=18:4

main33120-3B190iRU30..LHD..GEN198204-198403

SMG R=18:4

main33120-3B190iRU20..LHD..GEN..IV3198204-198408

SMG R=18:4 DUMP SPEC

main33120-3B190iRU20,30..EUR198204-198206

SMG R=18:4,DIFF R=6.833

main33120-3B200iRU30..LHD..TB..GEN198204-198403

SMG R=18:4,TILT CAB

main33120-3B200iRU20,30..T3..EUR198204-198206

SMG=18:4 TILT CAB DIFF R=6.833

main33120-3B210iRU30..RHD198204-198403

SMG R=18:4,TILT CAB

main33120-3B220iRU20..ARL..CBU198204-198403

SMG R=19:5

main33120-3B230iRU20..ARL..CBU198204-198403

SMG R=17:4

main33120-3B250iBU20..RHD..TS..ST198204-198403

SMG R=18:5

main33120-3B260iBU20..RHD..TS..ST198204-198403

SMG R=18:5,W/*EB,TILT CAB

main33120-3B270iBU20,30..T1,T2;BU20..RHD..T3..ST198204-198403

SMG R=19:5,W/*EB

main33120-3B280iBU20..RHD..SRF198204-198403

SMG R=18:5

main33120-3B300iBU20..RHD..SRF198204-198403

SMG R=19:5

main33120-3B310iBU20..LHD..TS..ST198204-198403

SMG R=19:5

main33120-3B320iBU20..LHD..VSG198204-198403

SMG R=19:5

main33120-3B330iBU20,30..T1,T2;BU20..RHD..T3..ST198204-198403

SMG R=19:5

main33120-3B340iBU20..LHD..TS..ST198204-198403

SMG R=18:5,TILT CAB

main33120-3B350iBU20..RHD..TS..WT..GEN198204-198403

SMG R=16:4

main33120-3B360iBU20..RHD..TS..WT..GEN198204-198403

SMG R=17:4

main33120-3B370iBU20..RHD..TS..WT198204-198403

SMG R=16:4,W/*EB OR TILT CAB

main33120-3B380iBU20..LHD..WT..GEN198204-198403

SMG R=16:4

main33120-3B390iBU20..LHD..WT..GEN198204-198403

SMG R=16:4,TILT CAB

main33120-3B400iBU20..LHD..WT..GEN198204-198403

SMG R=17:4

main33120-3B410iBU30..RHD..5H..GEN198204-198403

SMG R=17:4

main33120-3B420iBU30..RHD..5H..GEN198204-198403

SMG R=17:4,W/*EB OR TILT CAB

main33120-3B430iBU30..LHD..GEN198204-198403

SMG R=17:4

main33120-3B440iBU30..LHD..GHI198204-198403

SMG R=17:4,TILT CAB

main33120-3B450iBU30..RHD..GHI198204-198403

SMG R=16:4

main33120-3B460iBU30..RHD..GHI198204-198403

SMG R=16:4,W/*EB OR TILT CAB

main33120-3B470iBU20..RHD..TS..WT..GEN198204-198403

SMG R=17:4,W/*EB

main33120-3B480iBU20..LHD..WT..GEN198204-198403

SMG R=17:4,TILT CAB

main33120-3B530iBU32..TB..ARL198204-198302

SMG R=19:5

main33120-3B590iBU36..RHD198302-198403

main33120-3B620iBU20..RHD..TS..WT..GEN..IV3198204-198403

SMG R=17:4,DUMP SPEC

main33120-3B630iBU20..LHD..WT..GEN..IV3198204-198403

SMG R=17:4,DUMP SPEC

main33120-3B630iBU25198204-198403

SMG R=17:4

main33120-3B640iBU20..LHD..WT..GEN..IV3198204-198408

DUMP SPEC,W/*EB OR TILT CAB

main33120-3B640iBU25198204-198403

SMG R=17:4,W/TILT CAB

main33120-3B650iBU20..RHD..TS..WT..IV3198204-198403

SMG R=17:4,DUMP SPEC,W/*EB

main33120-3B660iBU32..TS198204-198403

SMG R=19:5

main33120-3B680iBU23,31,32..GEN198204-198403

SMG R=19:5

main33120-3B690iBU20..LHD..ST198204-198403

SMG R=18:5

main33120-3B700iBU30..LHD..5F..GHI198204-198403

SMG R=16:4

main33120-3B710iBU30..EUR198204-198403

SMG R=16:4,TILT CAB

main33120-3B720iBU20..EUR198204-198403

SMG R=17:5

main33120-3B730iBU20..EUR198204-198403

SMG R=17:5,TILT CAB

main33120-3B760iRU20,30..EUR198206-198210

SMG R=16:4,DIFF R=6.167

main33120-3B761iRU20,30..EUR198210-198403

SMG R=16:4,DIFF R=6.167

main33120-3B770iRU20,30..T3..EUR198206-198210

SMG=16:4 TILT CAB,DIFF R=6.167

main33120-3B771iRU20,30..T3..EUR198210-198403

SMG=16:4 TILT CAB,DIFF R=6.167

main33120-3B780iBU40..LHD198302-198403

main33120-3B800iBU36..LHD198304-198403

main33120-3B810iWU40..RHD198304-198403

main33120-3B830iWU40,50..LHD198304-198403

main33120-3B902iBU20..TS..WT..GEN..IV3198403-198408

DUMP SPEC,W/*EB OR TILT CAB

main33120-3B902iBU25,40198403-198408

W/TILT CAB

main33120-3B903iHU40,50198403-198408

main33120-3B904iBU23,32,36..TB198403-198408

main33120-3B906iBU25198403-198408

SMG R=17:4,DUMP SPEC

main33120-3B907iBU32..ARL198403-198408

main33120-3B908iWU40,50198403-198408

main33120-3B910iBU20,30..T1,T2,VSG;BU20..(BUS,TR)..5H..ST198403-198411

main33120-3B911iBU20,30..T3..WT198403-198411

main33120-3B912iBU30..T3198403-198408

W/*EB OR TILT CAB

main33120-3B913iBU20,30..T1,T2,VSG;BU20..(BUS,TR)..5H..ST198403-198408

W/*ER OR TILT

main33120-3B913iBU20..EUR198403-198408

SMG R=17:5,TILT CAB

main33120-3B914iRU2#,30..5F,5H198403-198408

main33120-3B916iRU20..ARL..CBU198403-198408

W/TILT CAB

main33120-3B916iRU20..ARL..CBU198403-198408

SMG DRIVE GEAR N=5

main33120-3B917iRU20,30..EUR198403-198408

W/DIFF R=6.167

main33120-3B919iRU20..4H198403-198408

main33120-3B920iRU20..4H198403-198408

W/TILT CAB

2 parts on this diagram · 2 diagrams in section
