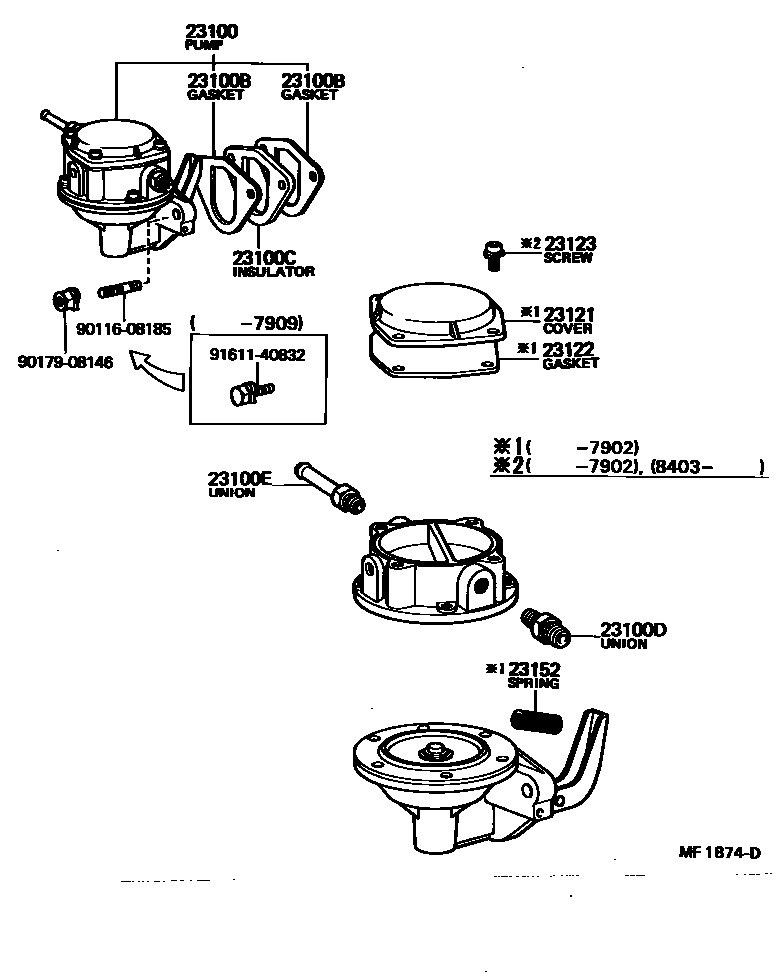

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-49195i5R..RU2#,30197708-197911

main23100-49196i5R..RU2#,30197911-198408

23100BGASKET, FUEL PUMP

main90923-05005×2i5R..RU2#,30197708-198408

T=0.5

23100CINSULATOR, FUEL PUMP

main90923-06001i5R..RU2#,30197708-198408

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main90404-13105i5R..RU2#,30197708-198408

23100EUNION, NIPPLE(FOR FUEL INLET)

main90404-51266i5R..RU2#,30197708-198408

23121COVER, FUEL PUMP

main23121-41030i5R..RU2#,30197708-197902

23122GASKET, FUEL PUMP COVER

main23122-41030i5R..RU2#,30197708-197902

23123SCREW, COVER SET, NO.1

main93319-15014×10i5R..RU2#,30197708-197902

23152SPRING, ROCKER ARM

main23152-44020i5R..RU2#,30197708-197902

9011608185

main90116-08185

9017908146

main90179-08146

9161140832

main91611-40832

12 parts on this diagram · 1 diagram in section
