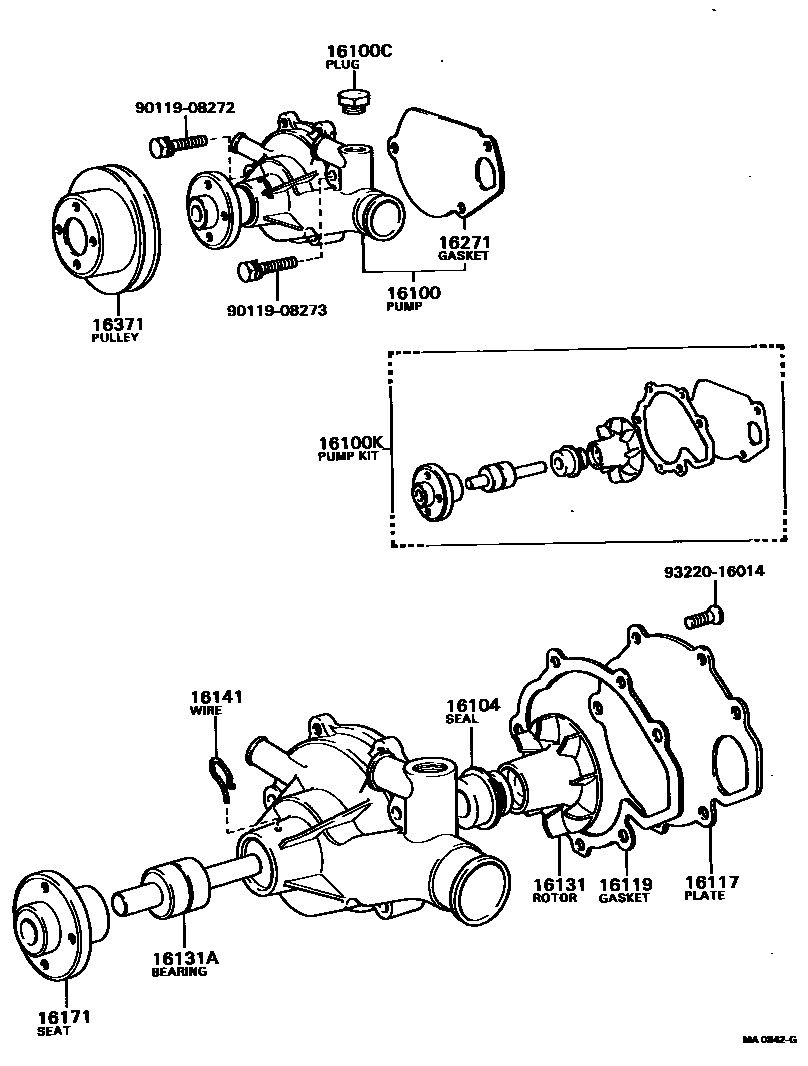

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1

16100PUMP ASSY, ENGINE WATER

main16100-49415i5R..RU2#,30..GEN198208-198408

main16100-49425i5R..RU2#,30..ARL; 5R..RU20,30..RHD..T3..5H..WT..GEN..IV3197912-198408

CAST IRON; SOUTH AFRICA SPEC,CAST IRON

main16100-49525iH..HU30197708-197904

main16100-49526iH..HU30197904-198104

main16100-49535i2J..JU20197708-197904

W/COUPLING

main16100-49575i5R..RU20,30..EUR198208-198209

main16100-49576i5R..RU20,30..EUR198209-198408

main16100-49625iH..HU30197904-198104

W/O THERMOSTAT

main16100-59017iB..BU2#,30197708-197904

main16100-59055iB..BU2#,30197904-198008

main16100-59075iB..BU30..EUR198204-198408

main16100-59095iB..BU20..EUR198204-198408

main16100-69055i2H..HU40,50198204-198408

main16100-78010i1W..WU40,50198304-198408

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010iB,2B,3B..BU2#,3#,40198008-198411

W/O HEATER

main90345-54002i2J..JU20; B..BU2#,30; H..HU30..GEN197805-197904

W/O HEATER

main90345-54004i5R..RU2#,30..GEN197901-198101

W/O HEATER

main90345-54005i5R..RU2#,30..GEN198101-198408

W/O HEATER

main90345-54021i2J..JU20; B..BU2#,30; H..HU30..GEN197708-197805

W/O HEATER

16100KPUMP KIT, WATER

main04161-48020i2J..JU20197708-197904

W/COUPLING

main04161-56020iB..BU2#,30197708-198008

main04161-56040iB,2B,3B..BU2#,3#,40..ARL,GEN,GHI198204-198411

main04161-56050iB..BU20..EUR198204-198408

main04161-68020i2H..HU40,50198204-198408

16104SEAL SET, WATER PUMP

main16104-41110i2J..JU20; 5R..RU2#,30; B..BU2#,30197708-197911

main16104-41111i5R..RU2#,30197911-198408

main16104-52010iH..HU30197708-197904

main16104-52011iH..HU30197904-198104

main16104-78010i1W..WU40,50198304-198408

16117PLATE, WATER PUMP

main16117-44010i5R..RU2#,30197708-198408

main16117-48010i2J..JU20197708-197904

main16117-56010iB..BU2#,30197708-198008

main16117-56040iB,2B,3B..BU2#,3#,40198008-198411

16119GASKET, WATER PUMP BODY

main16119-44010i5R..RU2#,30197708-198408

main16119-56010iB..BU2#,30197708-198008

main16119-56040iB,2B,3B..BU2#,3#,40198008-198411

16131ROTOR, WATER PUMP

main16131-44070i5R..RU2#,30197708-198408

main16131-47020iH..HU30197708-198104

main16131-48013i2J..JU20197708-197904

main16131-56020iB..BU20..EUR198204-198408

main16131-56030iB..BU30..EUR198204-198408

main16131-68010i2H..HU40,50198204-198408

main16131-78010i1W..WU40,50198304-198408

16131ABEARING, WATER PUMP

main16140-47024×2iH..HU30197708-198104

main90369-30005i2J..JU20197708-197904

W/COUPLING,RWF30-2R

main90369-30028i5R..RU2#,30197708-197805

WPB16112-2RS

main90369-30050i1W..WU40,50198304-198408

main90369-30063i5R..RU2#,30197912-198208

WPB16105BRS

main90369-35004i5R..RU20,30..EUR198208-198209

main90369-35015i2H..HU40,50198204-198408

main90369-35026i5R..RU20,30..EUR198209-198408

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i5R..RU2#,30..ARL; 5R..RU20,30..RHD..T3..5H..WT..GEN..IV3197912-198408

CAST IRON

main16141-68010i2H..HU40,50198204-198408

16171SEAT, WATER PUMP PULLEY

main16171-24030i5R..RU20,30..EUR198208-198408

main16171-24031i5R..RU2#,30..ARL,GEN198208-198408

main16171-38022i2J..JU20197708-197904

W/COUPLING

main16171-47011iH..HU30197708-198104

main16171-47021iH..HU30197904-198008

W/O THERMOSTAT

main16171-56010i2H..HU40,50; B,2B,3B..BU2#,3#,40..ARL,GEN,GHI198204-198411

main16171-78010i1W..WU40,50198304-198408

16271GASKET, WATER PUMP

main16271-44010i5R..RU2#,30197708-198101

main16271-44020i5R..RU2#,30198101-198408

main16271-47020iH..HU30197708-197901

main16271-47021iH..HU30197901-198104

main16271-48010i2J..JU20197708-197904

main16271-56012iB..BU2#,30197708-198008

main16271-56020iB,2B,3B..BU2#,3#,40198008-198411

main16271-68010i2H..HU40,50198204-198408

16371PULLEY, FAN

main16173-56020i2J..JU20197708-197904

W/COUPLING

main16173-78010i1W..WU40,50198304-198408

main16371-44010i5R..RU2#,30197708-198408

main16371-47011iH..HU30197708-198104

main16371-56010iB..BU2#,30197708-198008

main16371-56020iB,2B,3B..BU25,3#,40; B..BU20..ARL,GEN198204-198211

main16371-56021iB,2B,3B..BU23,25,3#,40; B..BU20..ARL,GEN198211-198411

main16371-56030iB..BU20..EUR198204-198408

main16371-68020i2H..HU40,50198204-198408

9011908272

main90119-08272

9011908273

main90119-08273

9322016014

main93220-16014

15 parts on this diagram · 8 diagrams in section
