ENGINE OVERHAUL GASKET KIT

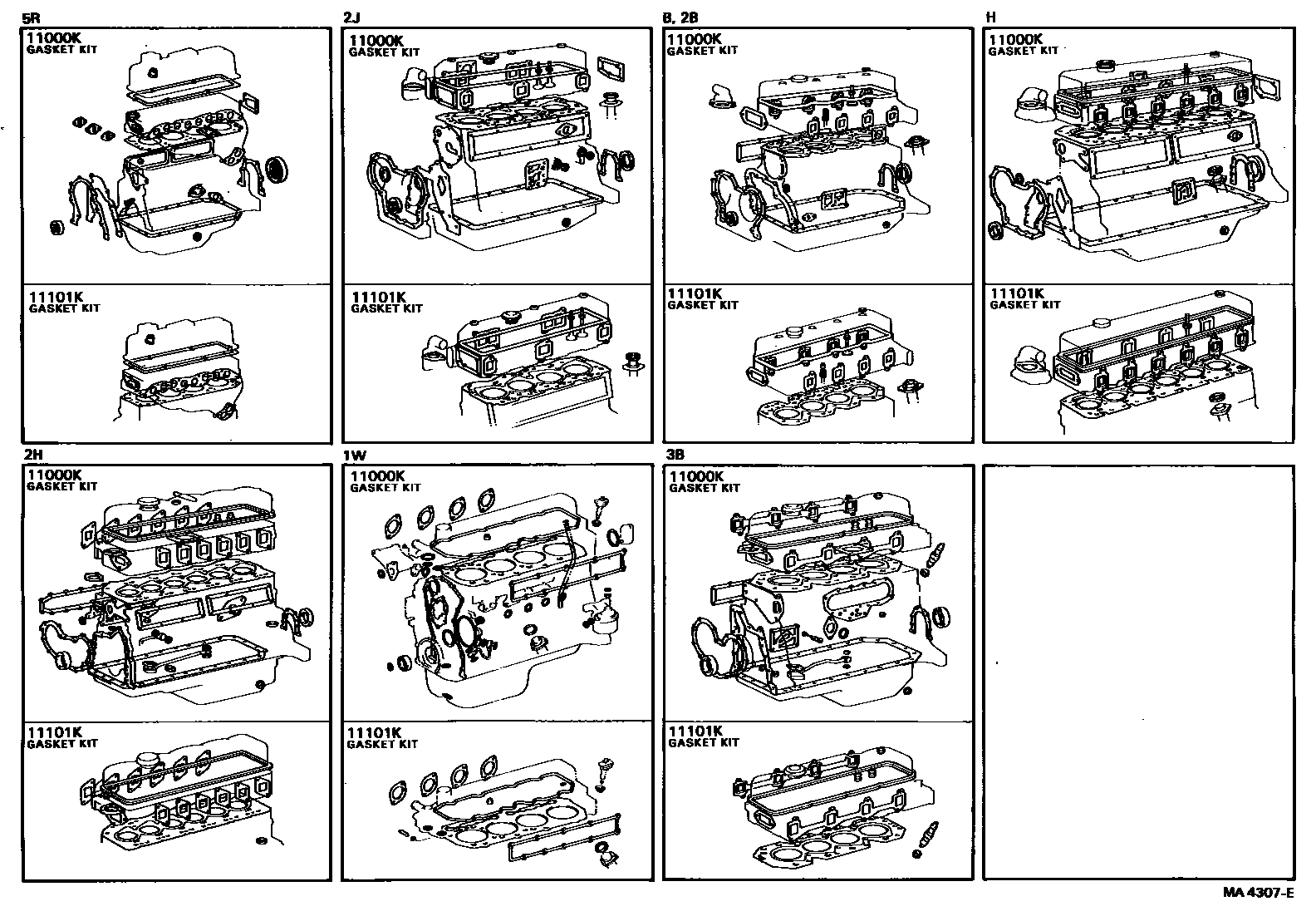

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-44034i197708-197805

main04111-44035i197805-198408

main04111-44042i197708-197805

CHINA SPEC

main04111-44043i198104-198408

CHINA SPEC

main04111-47014i197708-198104

main04111-48013i197708-197904

main04111-56012i197708-197806

main04111-56013i197806-197911

main04111-56014i197911-198008

main04111-56030i198008-198105

main04111-56031i198105-198308

main04111-56032i198308-198408

main04111-58011i198104-198105

main04111-58012i198105-198308

main04111-58013i198308-198408

main04111-68010i198204-198408

main04111-78010i198304-198408

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-44022i197708-197805

main04112-44023i197805-198408

main04112-44030i198104-198408

CHINA SPEC

main04112-47014i197708-198104

main04112-48013i197708-197904

main04112-56012i197708-197806

main04112-56013i197806-198008

main04112-56020i198008-198308

main04112-56021i198308-198408

main04112-58010i198104-198308

main04112-58011i198308-198408

main04112-68010i198204-198408

main04112-78010i198304-198408

2 parts on this diagram · 1 diagram in section
