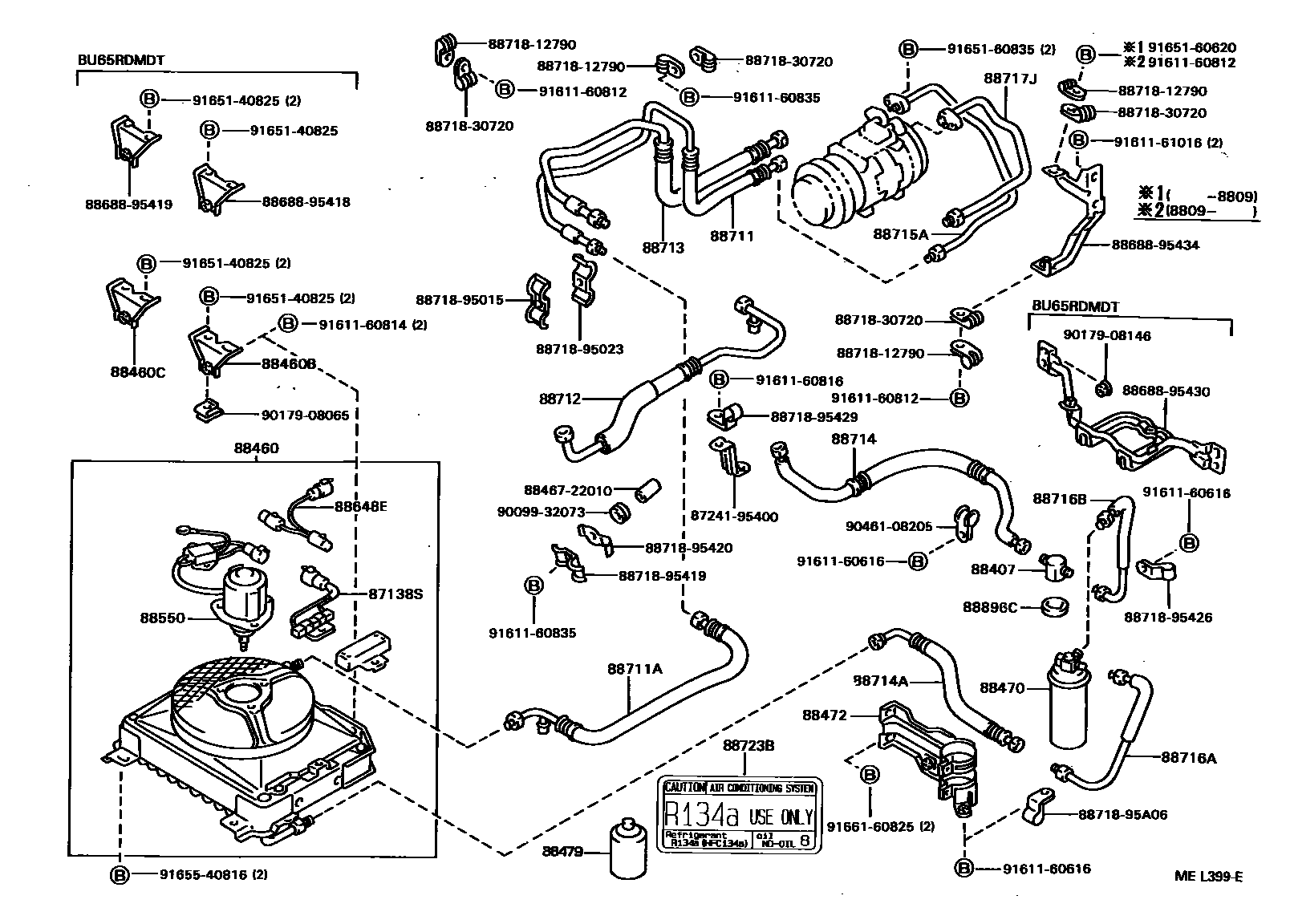

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

87138SRESISTOR, BLOWER

main87138-95410iBU61,87,91..RHD..WT..(GEN,GHD)..IV3; BU96..GEN;BU61..CBU;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU66,70,84,94..5F;BU60,65,83,88..RHD..(GEN,GHD)198808-198910

main87138-95411iBU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL198808-199505

CHINA SPEC

88407GLASS SUB-ASSY, SIGHT

main88407-95701iBU66,84;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU60,83..RHD..WT;BU61,65,70..CBU,IV1; BU87198808-198910

88460CONDENSER ASSY, COOLER

main88460-36140iBU60..ARL199204-199309

main88460-37010iBU61..RHD..WT..CBU;BU60,65,66,83,84,87..RHD..WT; BU61..RHD..WT..IV3; BU61..ST199309-199505

main88460-37020iBU60..T3..ST;BU61,67,70,84..LHD; BU60..TW1..GEN;BU60,83..LHD..WT; BU66..T3..TB..GEN199309-199505

main88460-37030iBU60..TW1..GEN;BU60,83..LHD..WT199309-199505

main88460-37040iBU91..RHD..GEN..IV3; BU96..RHD..GEN199309-199505

main88460-37050iBU88,96..LHD..IV3; BU91..LHD;BU88..LHD..CBU; BU96..CBU199309-199505

main88460-37060iBU88,91..LHD199309-199505

CHINA SPEC

main88460-37100iBU91,96..RHD..GEN..IV3199309-199505

HONG KONG SPEC

main88460-37110iBU60..ARL199309-199505

main88460-95405iBU61..ST..IV3;BU61..RHD..CBU;BU60,65,66,83,84..RHD..WT; BU87198808-198910

main88460-95406iBU60..T3..ST;BU61,70,84..LHD;BU66..T3..TB..GEN; BU60..TW1..GEN;BU60,83..LHD..WT198808-199309

main88460-95408iBU91..RHD..GEN..IV3198808-199109

main88460-95409iBU91,96..RHD..GEN..IV3199112-199309

HONG KONG SPEC

main88460-95410iBU88..LHD..CBU;BU91..LHD..DSL; BU88..LHD..IV3198911-199309

main88460-95412iBU60..TW1..GEN;BU60,83..LHD..WT; BU61..IV1198808-199309

CHINA SPEC

main88460-95413iBU88,91..LHD..DSL198808-199309

CHINA SPEC

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-95416iBU60..T3..ST;BU66,70,84,87;BU61..CBU,IV1;BU61..ST..IV3;BU61..LHD..IV3;BU60,83..RHD..WT198910-199204

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-95417iBU61..ST..CBU;BU61..RHD..IV3; BU66..T3..TB..GEN; BU70,84,87;BU60,83..RHD;BU60..T3..ST;BU61..WT..CBU;BU61..LHD..IV3199309-199505

main88688-95419iBU65..CBU198808-199309

88470RECEIVER & DRYER ASSY, COOLER

main88471-20050iBU60..TW1..GEN;BU88..LHD..CBU;BU60,83,91..LHD..WT; BU61..RHD..WT..IV3; BU61..ST; BU66,96..LHD..T3..TB..IV3; BU88..LHD..IV3; BU91..RHD..GEN..IV3; BU96..RHD..GEN199309-199505

main88471-95400iBU66,84;BU88..IV1;BU96..GEN;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU60,83..RHD..WT;BU61,65,70,94..CBU,IV1; BU87,91..RHD..(GEN,GHD)..IV3198808-198910

A/C=MAKER OPT

main88471-95401iBU88..RHD..GEN..(CBU,IV3); BU91..RHD..GEN..IV3; BU96..RHD..GEN199112-199309

A/C=DEALER OPT

88472BRACKET, RECEIVER TANK, NO.1

main88472-37010iBU61..RHD..WT..CBU;BU60,65,66,83,84,87..RHD; BU61..RHD..WT..IV3; BU61..ST199309-199505

main88472-37020iBU60..T3..ST;BU61,67,70,84..LHD; BU60..TW1..GEN;BU60,83..LHD..WT; BU66..T3..TB..GEN199309-199505

main88472-37030iBU91..RHD..GEN..IV3; BU96..RHD..GEN199309-199505

main88472-37040iBU88..LHD..IV3; BU91..LHD;BU88..LHD..CBU; BU96..CBU; BU96..LHD..IV3199309-199505

main88472-95406iBU91..ARL;BU88,94..RHD;BU91..RHD..CBU; BU91..RHD..GEN..IV3; BU96..RHD..GEN199112-199309

main88472-95407iBU88..LHD..CBU;BU91..LHD..DSL; BU88..LHD..IV3198911-199309

main88472-95408iBU61..ST..IV3;BU61..RHD..CBU;BU60,65,66,83,84..RHD..WT; BU87198808-198910

main88472-95409iBU60..TW1..GEN;BU60,83..LHD..WT; BU61..IV1;BU60..T3..ST;BU61,70,84..LHD;BU66..T3..TB..GEN198808-199309

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iBU61..RHD..WT..GEN..IV3;BU60,66,83,84..RHD..(ARL,GEN)..IV3198808-198910

400G

main90986-02004×2iBU65,88..RHD..(CBU,IV3);BU91..RHD..(ARL,GEN)..IV3198808-198910

250G

main90986-02007iBU65..CBU;BU60,61,70,83,84,87,94..GEN,GHD,SA;BU66,88,91,96..(T3,TW1)..TB..(ARL,GEN)199309-199703

250G

main90986-02008×2iBU65..CBU;BU60,61,70,83,84,87,94..GEN,GHD,SA;BU66,88,91,96..(T3,TW1)..TB..(ARL,GEN)199309-199703

200G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-95406iBU61..CBU;BU60..T3..ST;BU70,84,87,94;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU66,96..T3..TB..DSL..GEN;BU60,65,83,88..RHD..(GEN,GHD)198910-199309

main87104-95407iBU61..IV1198808-199309

88648EWIRING, COOLER

main88648-95419iBU61,87,91..RHD..WT..(GEN,GHD)..IV3; BU96..GEN;BU60..T3..ST;BU61..CBU,IV1;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU66,70,84,94..5F;BU60,65,83,88..RHD..(GEN,GHD)198808-198910

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-36190iBU88,91..LHD..DSL; BU88,94..IV1;BU91..RHD..CBU;BU96..LHD..DSL; BU88,96..RHD..GEN..(CBU,IV3); BU91..RHD..GEN..IV3199210-199309

main88711-37030iBU60..TW1..GEN;BU60,83..LHD..WT; BU61..ST..CBU;BU61..RHD..IV3; BU65..GEN..CBU;BU60,83,84..RHD..GEN..IV3; BU66..T3..TB..GEN; BU67,70,87;BU60..T3..ST;BU83,84..GHD,SA;BU61,84..WT..CBU;BU61,84..LHD..IV3;BU60,83..RHD..GEN..CBU199309-199505

main88711-37040iBU88..LHD..IV3; BU91..LHD;BU88..LHD..CBU; BU91..RHD..GEN..IV3; BU96..LHD..IV3; BU96..RHD..GEN199309-199505

main88711-37090iBU60,61,83,84..RHD..WT..GEN..IV3; BU60,66..ARL199309-199505

A/C=DEALER OPT

main88711-37100iBU65..ARL; BU65..GEN..CBU199309-199505

A/C=DEALER OPT

main88711-95415iBU60,61,83,84..RHD..WT..GEN..IV3198808-199309

A/C=DEALER OPT

main88711-95416iBU65..CBU198808-199309

main88711-95423iBU88..LHD..IV3; BU88..RHD..GEN..(CBU,IV3); BU91..RHD..GEN..IV3; BU96..RHD..GEN199210-199309

A/C=DEALER OPT

main88711-95429iBU60,83,84..RHD..GEN..IV3198808-199309

88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2

main88711-37020iBU60..TW1..GEN;BU60,83..LHD..WT; BU61..RHD..WT..IV3; BU61..ST; BU66..T3..TB..GEN; BU67,70,84;BU60..T3..ST;BU61..WT..CBU;BU61..LHD..IV3;BU60,65,66,83,87..RHD199309-199505

main88711-95417iBU61..RHD..WT..GEN..IV3198808-199109

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-37010iBU61..RHD..WT..IV3; BU61..ST;BU65..GEN..CBU;BU60,83,84..RHD..GEN..IV3; BU83,84,87..GHD,SA;BU60,61,83,84..RHD..WT..GEN..CBU199309-199505

main88712-37040iBU61..ST199309-199505

THAILAND SPEC

main88712-37050iBU60..T3..ST;BU61,67,70,84..LHD; BU60..TW1..GEN;BU60,83..LHD..WT; BU66..T3..TB..GEN199309-199505

main88712-37060iBU91..RHD..GEN..IV3; BU96..RHD..GEN199309-199505

main88712-37070iBU88..LHD..IV3; BU91..LHD;BU88..LHD..CBU; BU96..CBU; BU96..LHD..IV3199309-199505

main88712-37120iBU60,65,66..ARL; BU65..GEN..CBU;BU60,61,83,84..RHD..WT..GEN..IV3199309-199505

A/C=DEALER OPT

main88712-95417iBU91..ARL;BU88..RHD..(CBU,IV3); BU91..RHD..GEN..IV3; BU96..RHD..GEN199112-199309

main88712-95420iBU60..ARL;BU65..CBU199204-199309

main88712-95425iBU91..TD;BU96..LHD198808-199301

main88712-95437iBU61,87..RHD..WT..(GEN,GHD)..IV3; BU61..ST..IV3;BU66,70,83..LHD;BU83,84..GHD,SA;BU83..RHD..GEN..CBU;BU60,61,84..LHD..IV3;BU60,61,84..GEN..CBU198808-198910

A/C=MAKER OPT

88713HOSE, COOLER REFRIGERANT SUCTION, NO.2

main88712-37050iBU61..ST..CBU;BU61..RHD..IV3; BU65..GEN..CBU;BU60,83,84..RHD..GEN..IV3; BU83,84,87..GHD,SA;BU60,61,83,84..RHD..WT..GEN..CBU199309-199505

main88712-37130iBU60,61,83,84..RHD..WT..GEN..IV3; BU60,66..ARL199309-199505

A/C=DEALER OPT

main88712-37140iBU65..ARL; BU65..GEN..CBU199309-199505

A/C=DEALER OPT

main88712-95421iBU60..ARL;BU60,61,83,84..RHD..WT..GEN..IV3199204-199309

main88712-95422iBU65..CBU198808-199309

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-36090iBU61..RHD..WT..GEN..IV3; BU61..ST..IV3;BU61..RHD..CBU;BU60,83,84,87..RHD..(GEN,GHD); BU84..SA199210-199309

main88721-36110iBU66..T3..TB;BU60,61,83,84..LHD; BU70199210-199309

main88721-36120iBU88,94..IV1;BU91..RHD..CBU; BU88,96..RHD..GEN..(CBU,IV3); BU91..RHD..GEN..IV3199210-199309

main88721-36130iBU88,91..LHD..DSL; BU96..LHD..DSL199210-199309

main88721-37030iBU61..RHD..WT..IV3; BU61..ST..IV3;BU61..RHD..CBU;BU60,65,83,84,87..RHD..(GEN,GHD); BU84..SA199309-199505

TAIWAN SPEC & A/C= DEALER OPT; THAILAND SPEC

main88721-37040iBU60..T3..ST;BU61,67,70,84..LHD; BU60..TW1..GEN;BU60,83..LHD..WT; BU66..T3..TB..GEN199309-199505

main88721-37050iBU60,65,66..ARL; BU61..ST; BU65..GEN..CBU;BU60,61,83,84..RHD..WT..GEN..IV3199309-199505

A/C=DEALER OPT; THAILAND SPEC

main88721-37060iBU91..ARL;BU88,94..RHD;BU91..RHD..CBU199309-199703

main88721-37070iBU88..LHD..IV3; BU91..LHD;BU88..LHD..CBU; BU96..CBU; BU96..LHD..IV3199309-199505

main88721-95405iBU60,83,84,87..RHD..(GEN,GHD); BU61..RHD..WT..CBU; BU61..ST..(CBU,IV3)198910-199309

main88721-95406iBU60..TW1..GEN;BU60,83..LHD..WT; BU61..IV1;BU60..T3..ST;BU61,84..LHD;BU66..T3..TB..GEN; BU70198808-199309

main88721-95407iBU65,66..RHD198808-199204

main88721-95408iBU60..TW1..GEN;BU60,83..LHD..WT; BU61..IV1198808-199309

main88721-95409iBU91..ARL;BU88,94..RHD;BU91..RHD..CBU; BU91..RHD..GEN..IV3; BU96..RHD..GEN199112-199210

main88721-95410iBU88..LHD..IV3199210-199309

A/C=DEALER OPT

main88721-95413iBU61,87..RHD..WT..(GEN,GHD)..IV3; BU61..ST..IV3;BU61..RHD..CBU;BU60,83,84..RHD..(GEN,GHD)198808-198910

THAILAND SPEC

main88721-95414iBU60,61,66,83,84..LHD; BU70198808-199210

88714AHOSE, COOLER REFRIGERANT LIQUID, NO.2

main88721-37010iBU61..RHD..WT..CBU;BU60,65,66,83,84,87..RHD; BU61..RHD..WT..IV3; BU61..ST199309-199505

main88721-37020iBU60..T3..ST;BU61,67,70,84..LHD; BU60..TW1..GEN;BU60,83..LHD..WT; BU66..T3..TB..GEN199309-199505

main88721-95405iBU61..ST..IV3;BU61..RHD..CBU;BU60,65,83,84,87..RHD199204-199309

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-37020iBU60..TW1..GEN;BU60,83..LHD..WT; BU61..RHD..WT..IV3; BU61..ST; BU66..T3..TB..GEN; BU67,70,84;BU60..T3..ST;BU61..WT..CBU;BU61..LHD..IV3;BU60,65,66,83,87..RHD199309-199505

main88715-95407iBU66,84;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU60,83..RHD..WT;BU61,65,70..CBU,IV1; BU87198808-198910

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-37030iBU61..RHD..WT..CBU;BU60,65,66,83,84,87..RHD; BU61..RHD..WT..IV3; BU61..ST199309-199505

main88716-37040iBU60..T3..ST;BU61,67,70,84..LHD; BU60..TW1..GEN;BU60,83..LHD..WT; BU66..T3..TB..GEN199309-199505

main88716-37060iBU91..RHD..GEN..IV3; BU96..RHD..GEN199309-199505

main88716-37070iBU88..LHD..IV3; BU91..LHD;BU88..LHD..CBU; BU96..CBU; BU96..LHD..IV3199309-199505

main88716-95410iBU91..ARL;BU88,94..RHD;BU91..RHD..CBU; BU91..RHD..GEN..IV3; BU96..RHD..GEN199112-199309

main88716-95411iBU88,91..LHD198808-198911

main88716-95412iBU61..RHD..WT..GEN..IV3198808-199109

main88716-95414iBU60..TW1..GEN;BU60,83..LHD..WT; BU61..IV1;BU60..T3..ST;BU61,70,84..LHD;BU66..T3..TB..GEN198808-199309

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-37020iBU61..RHD..WT..CBU;BU60,65,66,83,84,87..RHD; BU61..RHD..WT..IV3; BU61..ST199309-199505

main88716-37050iBU60..T3..ST;BU61,67,70,84..LHD; BU60..TW1..GEN;BU60,83..LHD..WT; BU66..T3..TB..GEN199309-199505

main88716-37120iBU91..RHD..GEN..IV3; BU96..RHD..GEN199309-199505

main88716-37130iBU88..LHD..IV3; BU91..LHD;BU88..LHD..CBU; BU96..CBU; BU96..LHD..IV3199309-199505

main88716-95413iBU61..ST..IV3;BU61..RHD..CBU;BU60,65,66,83,84..RHD..WT; BU87198808-198910

main88716-95415iBU60..TW1..GEN;BU60,83..LHD..WT; BU61..IV1;BU60..T3..ST;BU61,70,84..LHD;BU66..T3..TB..GEN198808-199309

88717JPIPE, COOLER REFRIGERANT SUCTION, J

main88717-37020iBU60..TW1..GEN;BU60,83..LHD..WT; BU61..RHD..WT..IV3; BU61..ST; BU66..T3..TB..GEN; BU67,70,84;BU60..T3..ST;BU61..WT..CBU;BU61..LHD..IV3;BU60,65,66,83,87..RHD199309-199505

main88717-95404iBU66;BU61,65..CBU;BU61..ST..IV3;BU61..LHD..IV3;BU60,70,83,84..GEN,GHD,SA; BU87198808-198910

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iBU66,88,96..LHD..T3..TB..IV3; BU70..BUS; BU91,96..RHD..GEN..IV3199309-199505

88896CCOVER, COOLER REFRIGERANT PIPE, NO.1

main88896-95704iBU60..TW1..GEN;BU60,83..LHD..WT; BU65..GEN..CBU;BU60,83,84..RHD..GEN..IV3198808-199309

main88896-95705iBU60,65..ARL199204-199309

8724195400CONTROLLER, WATER VALVE

main87241-95400

8846722010CUSHION, COOLER CONDENSER, NO.1

main88467-22010

8868895418BRACKET, COOLER DIAPHRAGM

main88688-95418

8868895419BRACKET, COOLER DIAPHRAGM

main88688-95419

8868895430BRACKET, COOLER DIAPHRAGM

main88688-95430

8868895434BRACKET, COOLER DIAPHRAGM

main88688-95434

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

8871830720PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30720

8871895015PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95015

8871895023PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95023

8871895419PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95419

8871895420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95420

8871895426PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95426

8871895429PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95429

8871895A06PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A06

9009932073

main90099-32073

9017908065

main90179-08065

9017908146

main90179-08146

9046108205

main90461-08205

9161160616

main91611-60616

9161160812

main91611-60812

9161160814

main91611-60814

9161160816

main91611-60816

9161160835

main91611-60835

9161161016

main91611-61016

9165140825

main91651-40825

9165160620

main91651-60620

9165160835

main91651-60835

9165540816

main91655-40816

9166160825

main91661-60825

52 parts on this diagram · 4 diagrams in section
