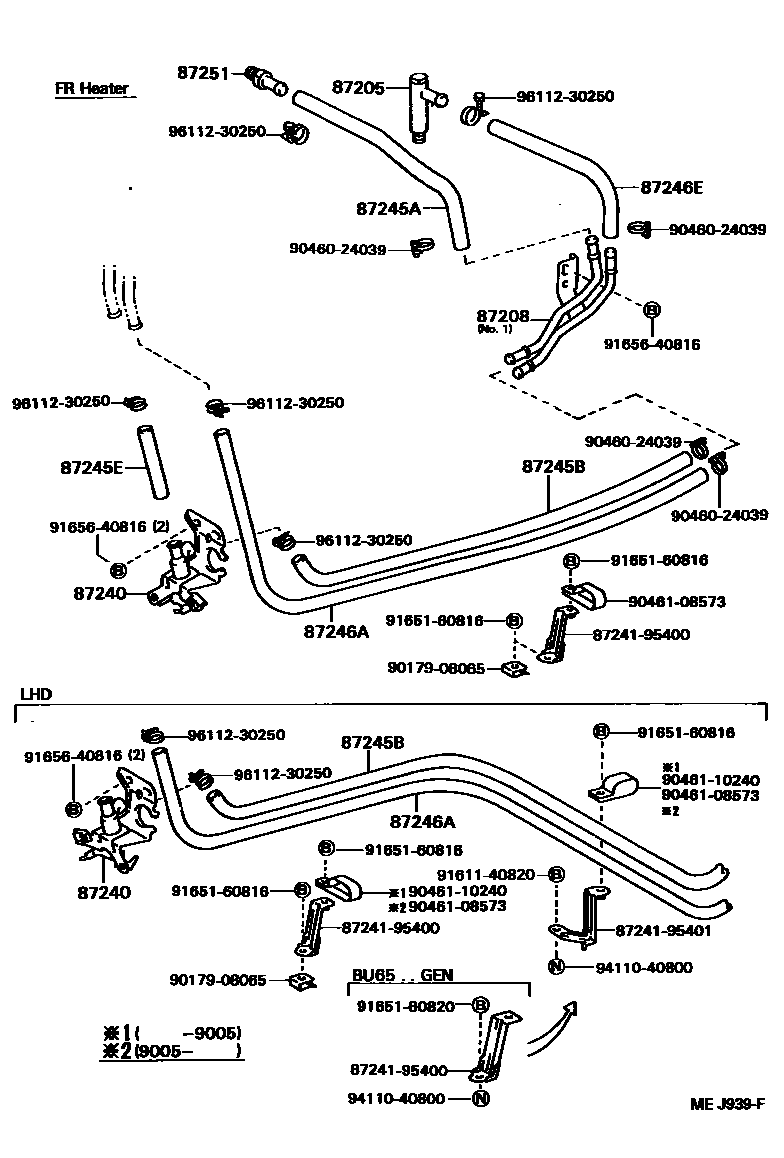

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-95400iBU91..ARL;BU91..CBU;BU6#,70,8#,94;BU96..LHD..DSL;BU91..LHD..DSL..IV3199301-199703

87208PIPE SUB-ASSY, HEATER WATER

main87208-92606iBU88..TW1198808-199309

RR HEATER,NO.1

main87208-92608iBU88..TW1198808-198910

RR HEATER,NO.1

main87208-92609iBU88..TW1198808-199309

RR HEATER,NO.2

main87208-92611iBU88..TW1198910-199309

RR HEATER,NO.3

main87208-95402iBU88,94;BU96..LHD;BU91..ARL;BU91..CBU;BU91..LHD..IV3199112-199301

main87208-95409iBU60,65..RHD;BU60..LHD..T3;BU61,66,70,83,84,87; BU65,67..IV3199008-199505

NO.1

main87208-95413iBU60..TW1..GEN199309-199505

RR HEATER,NO.2

main87208-95416iBU60..TW1198808-198809

RR HEATER

main87208-95417iBU60..TW1..GEN198808-199505

W(RR HEATER)

87240VALVE ASSY, HEATER WATER

main87240-95409iBU60,61,65,66,8#,9#..RHD198808-199112

main87240-95410iBU6#,70,83,84,88,91,96..LHD..DSL199301-199505

87245AHOSE, HEATER WATER, INLET A

main87245-95468iBU91,96..SA198808-199505

main87245-95480iBU88,94;BU96..LHD;BU91..ARL;BU91..CBU;BU91..LHD..IV3199112-199301

L=430

main99556-30300iBU6#,70,83,84,87198808-199505

L=300

87245BHOSE, HEATER WATER, INLET B

main87245-95463iBU91,96..RHD..GEN..IV3199112-199505

HONG KONG SPEC

main87245-95465iBU88,91,96..LHD198808-199301

main99556-30680iBU60,61,65,66,83,84,87..RHD198808-199505

*H,L=680

main99556-30980iBU91,96..SA198808-199505

*H,L=980

87245EHOSE, HEATER WATER, INLET E

main99556-30135iBU91,96..RHD..GEN..IV3199112-199505

*H,L=135

87246AHOSE, HEATER WATER, OUTLET A

main99556-30700iBU88,94;BU91..CBU;BU96..LHD;BU91..LHD..IV3;BU91,96..ARL,SA199112-199301

L=700

main99556-30980iBU60,61,65,66,83,84,87..RHD198808-199505

*H,L=980

87246EHOSE, HEATER WATER, OUTLET E

main87245-95467iBU88,9#..ARL,GEN198808-199112

main99556-30300iBU6#,70,83,84,87198808-199505

L=300

main99556-31930iBU91,96..SA198808-199505

*H,L=1930

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-20160iBU60..RHD;BU60..LHD..T3;BU91,96..ARL,GEN;BU61,65,66,67,70,8#,94; BU60..TW1..GEN198808-199009

main87251-29020iBU60..TW1..GEN199309-199505

RR HEATER

main87251-30200iBU60..TW1..GEN199009-199505

8724195400CONTROLLER, WATER VALVE

main87241-95400

8724195401CONTROLLER, WATER VALVE

main87241-95401

9017908065

main90179-08065

9046024039

main90460-24039

9046108573

main90461-08573

9046110240

main90461-10240

9161140820

main91611-40820

9165160816

main91651-60816

9165160820

main91651-60820

9165640816

main91656-40816

9411040800

main94110-40800

9611230250

main96112-30250

21 parts on this diagram · 4 diagrams in section
