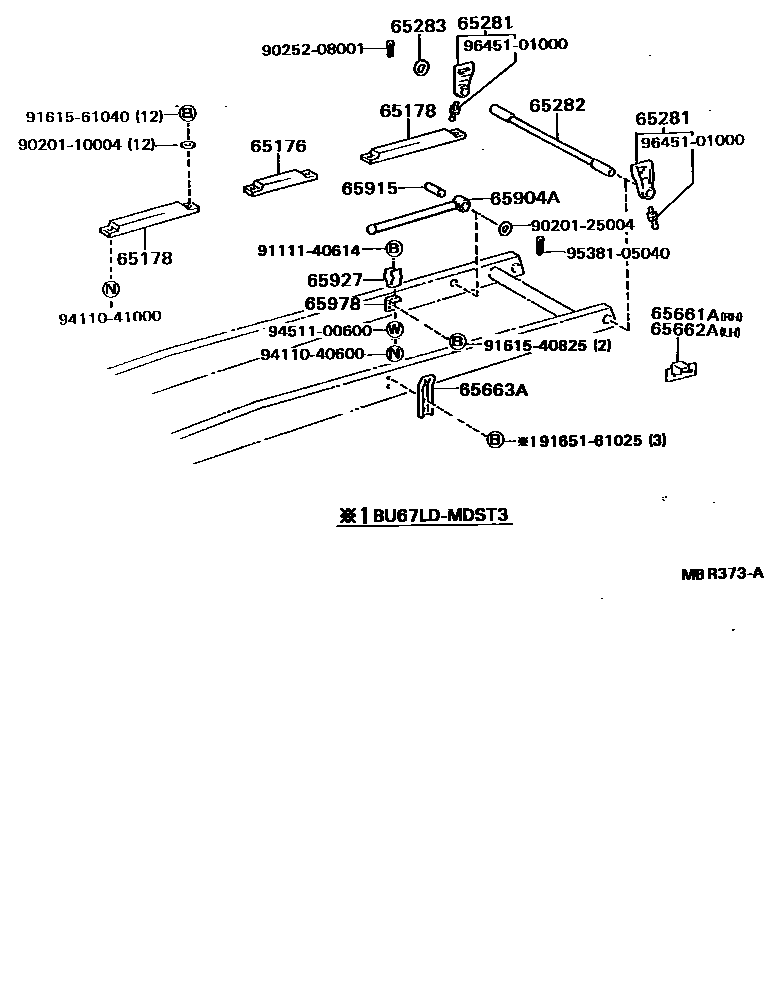

REAR BODY SUB FRAME

65176SILL, BESSEL RAIL, FRONT

main65176-93100×2iBU65..CBU198808-199505

65178SILL, BESSEL RAIL, REAR

main65178-93100×4iBU65..CBU198808-199505

65281BRACKET, BEZEL HINGE

main65281-93101×2iBU65..CBU198808-199505

65282SHAFT, BEZEL HINGE

main65206-93100iBU65..CBU198808-199001

main65206-93101iBU65..CBU199001-199505

65283STOPPER, BEZEL HINGE SHAFT

main65283-93102×2iBU65..CBU198808-199505

65661AGUIDE, ROLLER, RH

main65661-93102iBU65..CBU198808-199505

65662AGUIDE, ROLLER, LH

main65661-93102iBU65..CBU198808-199505

65663AGUIDE, VESSEL

main65663-93100×2iBU65..CBU198808-199010

65904ABAR SUB-ASSY, VESSEL STAND

main65904-93100iBU65..CBU198808-199505

65915PIN, BEZEL STAND

main65974-93100iBU65..CBU198808-199505

65927CLIP, BAR

main90468-12008iBU65..CBU198808-199505

65978BRACKET, VESSEL STAND

main65978-93100iBU65..CBU198808-199505

9020110004

main90201-10004

9020125004

main90201-25004

9025208001

main90252-08001

9111140614

main91111-40614

9161540825

main91615-40825

9161561040

main91615-61040

9165161025

main91651-61025

9411040600

main94110-40600

9411041000

main94110-41000

9451100600

main94511-00600

9538105040

main95381-05040

9645101000

main96451-01000

24 parts on this diagram · 1 diagram in section
