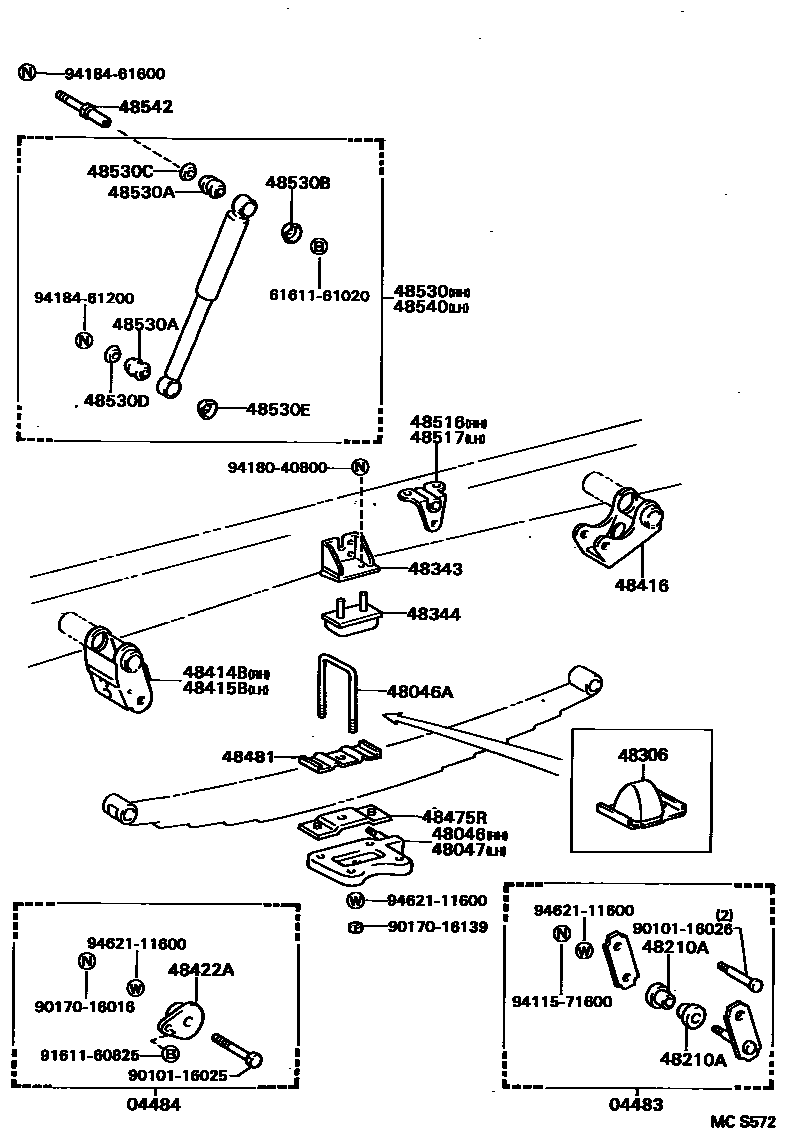

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

04483SHACKLE KIT, REAR SPRING

main04483-36060iBU65,67;BU66..T2;BU60,61,66,70..ST198808-199505

main04483-36070iBU60,61,66,8#,94..(T3,TW1)..WT198808-199703

04484PIN KIT, REAR SPRING

main04484-36030iBU91,96198808-199505

main04484-36040iBU65,67;BU66..T2;BU60,61,66,70..ST198808-199505

main04484-36050iBU60,61,66,8#,94..(T3,TW1)..WT198808-199703

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main42152-36030iBU91,96198808-199505

main48046-36090iBU60,61,66,70..ST198808-199505

main48046-36180iBU66..T2199305-199505

main48046-36190iBU67;BU65..CBU198808-199505

main48046-36220iBU65..IV3199009-199505

main48473-36100iBU66..TS;BU66..4FC;BU60,61,83,84..WT..(ARL,GEN,SA)198808-199505

main48473-36110iBU60,61,83,84..WT..GEN198808-199505

HEAVY DUTY SPEC

main48473-36110iBU88,94;BU66,83,87..5F..(ARL,GHD)199109-199703

main48473-36170iBU84..LHD199009-199505

ALGERIA SPEC

main48473-36190iBU60,61..WT..GEN199109-199505

HEAVY DUTY SPEC

48046ABOLT, U(FOR REAR SPRING)

main90117-16014iBU66..T2199305-199505

L=225

main90117-16018iBU67,88,94198808-199703

L=300

main90117-16018iBU65..CBU198808-199505

L=300,HEAVY DUTY SPEC

main90117-16022iBU65..CBU;BU83,84..GEN,SA198808-199505

L=280

main90117-16022iBU65..CBU;BU83,84..GEN,SA198808-199109

L=280,HEAVY DUTY SPEC

main90117-16023iBU60,61..WT..GEN199109-199408

L=295

main90117-16023iBU65..CBU199109-199408

L=295,HEAVY DUTY SPEC

main90117-16024iBU83,87..GHD198808-199505

L=310

main90117-16025iBU83,84..GEN198808-199505

L=305,HEAVY DUTY SPEC

main90117-16025iBU88;BU65,67,94..IV1,IV3198808-199703

L=305

main90117-16031iBU60..ARL198808-199505

L=200

main90117-16040iBU84..LHD199009-199505

L=320,ALGERIA SPEC

main90117-16103iBU65..CBU;BU83,84..GEN,SA198808-199408

L=275

main90117-16115iBU66..4FC;BU60,61,66..TS..WT198808-199505

L=265

main90117-16122iBU60,61,66,70..ST..GEN198808-199505

L=215

main90117-16142iBU66..4FC;BU60,61,66..TS..WT198808-199505

L=255

main90117-16144iBU65..CBU199109-199505

L=285

main90117-18002iBU91,96198808-199505

L=330

main90117-18003iBU91..RHD..GEN..IV3198808-199505

L=368,THAILAND SPEC

main90117-18005iBU91,96..RHD..GEN..IV3199112-199505

L=350,HONGKONG SPEC OR HEAVY DUTY SPEC

main90117-18005iBU91,96..RHD..GEN..IV3198808-199505

L=350,HEVY DUTY SPEC

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main42152-36030iBU91,96198808-199505

main48046-36090iBU60,61,66,70..ST198808-199505

main48047-36180iBU66..T2199305-199505

main48047-36190iBU65,67198808-199505

main48047-36220iBU65..IV3199009-199505

main48473-36100iBU66..TS;BU66..4FC;BU60,61,83,84..WT..(ARL,GEN,SA)198808-199505

main48473-36110iBU83,84..GEN198808-199505

HEAVY DUTY SPEC

main48473-36110iBU88,94;BU66,83,87..5F..(ARL,GHD)199109-199703

main48473-36170iBU84..LHD199009-199505

ALGERIA SPEC

main48473-36190iBU60,61..WT..GEN199109-199505

HEAVY DUTY SPEC

48210SPRING ASSY, REAR RH

main48210-36690iBU88,94..IV1198808-199703

MAIN 5+HELPER 7-LEAF

main48210-36690iBU88,94..IV1198808-199703

MAIN 5+HELPER 7-LEAF,INDIA, BANGLADESH OR HEAVY DUTY SPEC

main48210-36690iBU88..ARL;BU88..CBU198808-199505

MAIN 5+HELPER 7-LEAF,HEAVY DUTY SPEC

main48210-36690iBU88..ARL;BU88..CBU198808-199505

MAIN 5+HELPER 7-LEAF,TAIWAN SPEC & HEAVY DUTY SPEC

main48210-36800iBU66..WT..GEN198808-199109

MAIN 5+HELPER 6-LEAF

main48210-36800iBU60,61..WT..GEN198808-199109

MAIN 5+HELPER 6-LEAF,HEAVY DUTY SPEC

main48210-36810iBU66..ARL;BU60,61,66..TS..WT198808-199505

MAIN 5+HELPER 5-LEAF

main48210-36850iBU83,87..GHD198808-199505

MAIN 8+HELPER 8-LEAF

main48210-36861iBU83,84..GEN,SA198808-199505

MAIN 7+HELPER 7-LEAF

main48210-3B060iBU88..CBU,IV3198808-199703

MAIN 7+HELPER 6-LEAF

main48210-3B190iBU60,61,66..ST..GEN198808-199505

6-LEAF

main48210-3B210iBU70198808-199505

6-LEAF

main48210-3B220iBU66..T2199305-199505

6-LEAF

main48210-3B270iBU65..CBU198808-199109

MAIN 4+HELPER 5-LEAF

main48210-3B280iBU60..ARL198808-199505

4-LEAF

main48210-3B290iBU67198808-199505

MAIN 5+HELPER 6-LEAF

main48210-3B300iBU91,96198808-199505

MAIN 6+HELPER 6-LEAF

main48210-3B310iBU91,96..DSL..(ARL,GEN)198808-199505

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

main48210-3B320iBU91..RHD..GEN..IV3198808-199505

MAIN 6+HELPER10-LEAF,THAILAND SPEC

main48210-3B620iBU84..LHD199009-199505

MAIN 8+HELPER 8-LEAF,ALGERIA SPEC

main48210-3B630iBU65..IV3199009-199505

MAIN 5+HELPER 6-LEAF

main48210-3B640iBU66..T3..TB..WT..GEN199109-199505

MAIN 5+HELPER 5-LEAF,HEAVY DUTY SPEC

main48210-3B640iBU66..T3..TB..WT..GEN199109-199505

MAIN 5+HELPER 5-LEAF

main48210-3B710iBU65..CBU199109-199505

MAIN 4+HELPER 5-LEAF

main48210-3B730iBU91..RHD..GEN..IV3199112-199211

MAIN 4+HELPER 3-LEAF,HONGKONG SPEC

main48210-3B731iBU91..RHD..GEN..IV3199211-199505

MAIN 4+HELPER 3-LEAF,HONGKONG SPEC

main48210-3B740iBU96..RHD..GEN199112-199505

MAIN 6+HELPER 6-LEAF,HONGKONG SPEC

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-23002iBU65,67;BU66..T2;BU60,61,66,70..ST198808-199505

48306BUMPER SUB-ASSY, REAR SPRING

main48306-36031iBU66..T2199305-199505

48343BRACKET, REAR AXLE CUSHION

main48343-36040iBU60,61,66,70..ST198808-199505

main48343-36060iBU65,67198808-199505

48344STOPPER, BUMPER, REAR

main48344-36140iBU70198808-199505

main48344-36150iBU60,61,66..ST198808-199505

main48344-36170iBU65,67..IV3198808-199505

main48344-36180iBU60,61,66..T3..WT198808-199505

main48344-36190iBU83,84,87,91,96198808-199505

main48344-36200iBU88,94198808-199703

main48344-36270iBU65..CBU198808-199109

main48344-36310iBU66..T2199305-199505

main48344-36430iBU91..RHD..GEN..IV3199112-199505

HONGKONG SPEC

main48344-36440iBU96..RHD..GEN199112-199505

HONGKONG SPEC

48414BBRACKET, SPRING, NO.3 RH

main48414-36150iBU91,96198808-199505

main48414-36210iBU60,61,66,8#..(T3,TW1)..WT..(CBU,IV3)198808-199703

main48414-36230iBU60,61,66,70..ST198808-199505

main48414-36250iBU66..T2199305-199505

main48414-36270iBU65,67198808-199505

48415BBRACKET, SPRING, NO.3 LH

main48414-36150iBU91,96198808-199505

main48414-36210iBU60,61,66,8#..(T3,TW1)..WT..(CBU,IV3)198808-199703

main48414-36250iBU66..T2199305-199505

main48414-36270iBU65,67198808-199505

main48415-36070iBU60,61,66,70..ST198808-199505

48416BRACKET, SPRING, NO.4

main48416-36160iBU91,96198808-199505

main48416-36190iBU60,61,66,8#..(T3,TW1)..WT..(CBU,IV3)198808-199703

main48416-36240iBU66..T2199305-199505

RH

main48416-36260iBU65,67198808-199505

RH

main48416-36270iBU60,61,66,70..ST198808-199505

main48417-36120iBU66..T2199305-199505

LH

main48417-36140iBU65,67198808-199505

LH

48422ASUPPORT, REAR SPRING PIN

main48422-36030iBU60,61,66,8#,94..(T3,TW1)..WT198808-199703

main48422-36090iBU65,67;BU66..T2;BU60,61,66,70..ST198808-199505

48475RPLATE, DISTANCE(FOR REAR)

main48475-36051iBU60,61,66..TS..WT198808-199505

main48475-36090iBU67,88;BU65,94..RHD198808-199703

main48475-36090iBU83,84..GEN198808-199505

HEAVY DUTY SPEC

48481SEAT, REAR SPRING, UPPER

main48481-36040iBU66..TS;BU66..ST;BU66..4FC;BU60,61,70,83,84..ARL,GEN,SA198808-199505

main48481-36050iBU83,87..GHD;BU66,88,94..(T3,TW1)..TB..5F..WT198808-199703

main48481-36050iBU60,61,83,84..WT..GEN198808-199505

HEAVY DUTY SPEC

main48481-36050iBU84..RHD..GEN;BU60,61,83..WT..GEN199008-199505

ALGERIA SPEC OR HEAVY DUTY SPEC

main48481-37011iBU91,96198808-199505

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36040iBU84..LHD199009-199505

ALGERIA SPEC

main48505-36040iBU88,94;BU66..T2;BU83,87..GHD198808-199703

main48505-36050iBU60,61,66,83,84..T3..WT..(ARL,GEN,SA)198808-199505

main48516-36050iBU60,61,66,70..ST198808-199505

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-36040iBU88,94;BU66..T2;BU83,87..GHD198808-199703

main48505-36040iBU84..LHD199009-199505

ALGERIA SPEC

main48505-36050iBU60,61,66,83,84..T3..WT..(ARL,GEN,SA)198808-199505

main48516-36050iBU60,61,66,70..ST198808-199505

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39715iBU60,61,66,70..ST198808-199201

main48531-39716iBU60,61,66,70..ST199201-199505

main48531-39725iBU60,61,66,83,84,91,96..WT..(ARL,GEN,SA)198808-199201

main48531-39726iBU60,61,66,83,84,91,96..T3..WT..(ARL,GEN,SA)199201-199505

main48531-39735iBU84..LHD199008-199201

ALGERIA SPEC

main48531-39735iBU88,94;BU83,87..GHD198808-199201

main48531-39735iBU91,96..RHD..GEN..IV3199112-199201

HONGKONG SPEC

main48531-39736iBU84..LHD199201-199403

HONGKONG SPEC

main48531-39736iBU88,94;BU83,87..GHD199201-199403

ALGERIA SPEC

main48531-39736iBU88,94199505-199703

main48531-39745iBU65,67198808-199201

main48531-39746iBU67;BU65..CBU199201-199505

main48531-39756iBU66..T2199305-199505

main48531-80104iBU65..IV3199009-199201

main48531-80137iBU65..IV3199201-199505

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16011iBU6#,70,8#,9#198808-199703

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBU60,61,66,83,84,91,96..WT..(ARL,GEN,SA)198808-199505

main90948-03004iBU60,61,66,70..ST198808-199505

main90948-03007iBU84..LHD199008-199505

ALGERIA SPEC

main90948-03007iBU91,96..RHD..GEN..IV3199112-199505

HONGKONG SPEC

main90948-03007iBU83..GHD;BU65,67,87,88,94198808-199703

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU6#,8#,9#..WT198808-199703

main90948-03007iBU60,61,66,70..ST198808-199505

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBU84..LHD199008-199505

ALGERIA SPEC

main90948-03003iBU91,96..RHD..GEN..IV3199112-199505

HONGKONG SPEC

main90948-03003iBU88,94;BU66..T2;BU83,87..GHD;BU60,61,66,70..ST198808-199703

main90948-03007iBU66..T3..WT;BU60,61,65,67,83,84,91,96..WT..(ARL,GEN,SA)198808-199505

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBU6#,70,8#,9#198808-199703

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39715iBU60,61,66,70..ST198808-199201

main48531-39716iBU60,61,66,70..ST199201-199505

main48531-39725iBU60,61,66,83,84,91,96..WT..(ARL,GEN,SA)198808-199201

main48531-39726iBU60,61,66,83,84,91,96..T3..WT..(ARL,GEN,SA)199201-199505

main48531-39735iBU84..LHD199008-199201

ALGERIA SPEC

main48531-39735iBU88,94;BU83,87..GHD198808-199201

main48531-39735iBU91,96..RHD..GEN..IV3199112-199201

HONGKONG SPEC

main48531-39736iBU84..LHD199201-199403

ALGERIA SPEC

main48531-39736iBU88,94;BU83,87..GHD199201-199403

HONGKONG SPEC

main48531-39736iBU88,94199505-199703

main48531-39745iBU65,67198808-199201

main48531-39746iBU67;BU65..CBU199201-199505

main48531-39756iBU66..T2199305-199505

main48531-80104iBU65..IV3199009-199201

main48531-80137iBU65..IV3199201-199505

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-26020iBU60,61,66,8#,94..(T3,TW1)..WT198808-199703

main48542-36020iBU60,61,66,70..ST198808-199505

6161161020PANEL, QUARTER, RH

main61611-61020

9010116025

main90101-16025

9010116026

main90101-16026

9017016016

main90170-16016

9017016139

main90170-16139

9161160825

main91611-60825

9411571600

main94115-71600

9418040800

main94180-40800

9418461200

main94184-61200

9418461600

main94184-61600

9462111600

main94621-11600

37 parts on this diagram · 11 diagrams in section
