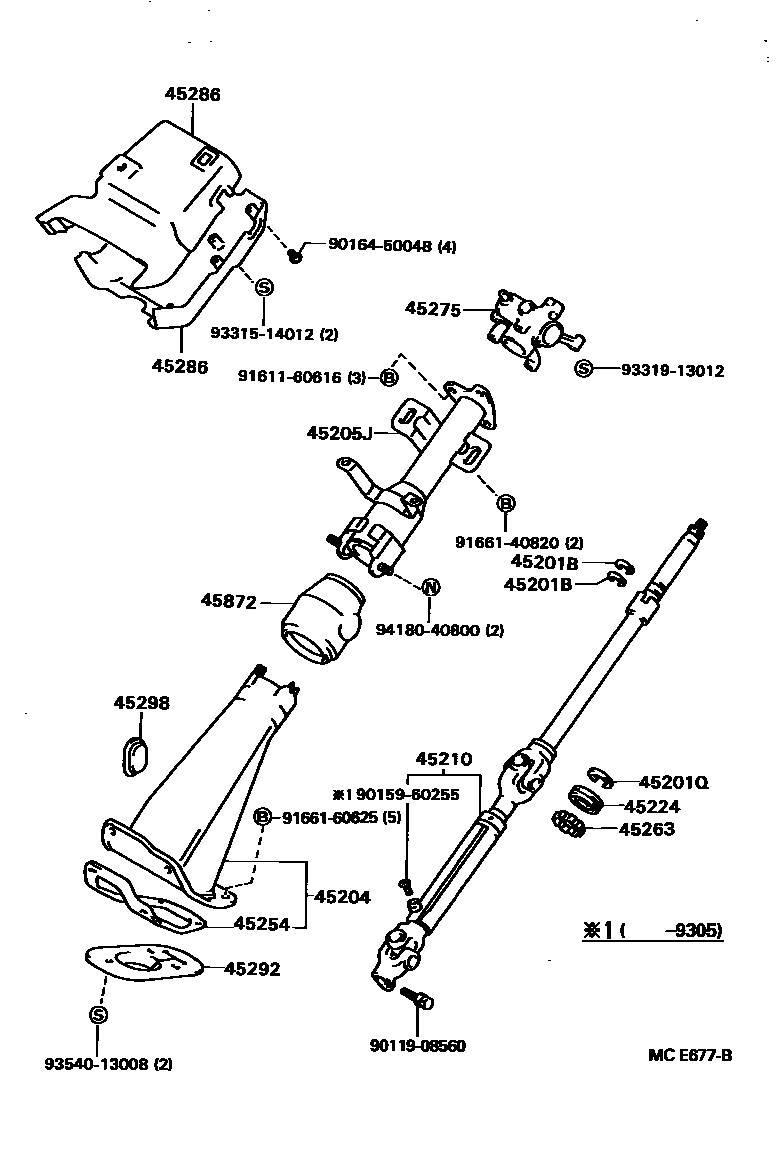

STEERING COLUMN & SHAFT
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LWR
T=1.20,UPR
45201QRING(FOR STEERING COLUMN RING)
45204TUBE ASSY, STEERING COLUMN, LOWER
W(PTO); W(PTO);W(TILT & TELESCOPIC STEERING)
main45204-36061iBU88,91..ARL; BU91,96..RHD..GEN..IV3; BU91..RHD..CBU;BU88..RHD..GEN..(CBU,IV3)199309-199402
ALGERIA SPEC OR W(TILT & TELESCOPIC STEERING); W(TILT & TELESCOPIC STEERING)
ALGERIA SPEC OR W(TILT & TELESCOPIC STEERING)
W(TILT & TELESCOPIC STEERING)
W(TILT & TELESCOPIC STEERING)
W(TILT & TELESCOPIC STEERING)
main45204-36090iBU60,61,83,84,87..RHD..WT..(GEN,GHD); BU61..ARL; BU65..ARL; BU65..GEN..CBU198808-199109
W(PTO); W(PTO);W(TILT & TELESCOPIC STEERING); W(TILT & TELESCOPIC STEERING)
W(TILT & TELESCOPIC STEERING)
W(TILT & TELESCOPIC STEERING)
W(TILT & TELESCOPIC STEERING)
W(PTO);W(TILT & TELESCOPIC STEERING)
W(TILT & TELESCOPIC STEERING)
W(PTO); W(PTO);W(TILT & TELESCOPIC STEERING)
W(PTO)
W(PTO)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
main45205-36180iBU96..LHD..DSL;BU65,91..GEN..CBU;BU91..LHD..DSL..IV3;BU88..GEN..(CBU,IV3);BU60,61,66,67,70,83,84,87..GEN,GHD199112-199305
W(TILT & TELESCOPIC STEERING)
45210SHAFT ASSY, STEERING MAIN
INDIA OR BANGRDESH SPEC
45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)
L=16
45254SHIELD, STEERING COLUMN HOLE
45263RING, STEERING COLUMN, NO.1
45275BRACKET, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
BROWN,TRIM4#,UPR
GRAY,TRIM1#,UPR
BROWN,TRIM4#,UPR
GRAY,TRIM1#,UPR
main45286-36790-06iBU60,61,65,66,88,91..ARL; BU88..RHD..GEN..(CBU,IV3);BU60,61,65,83,84,87,91,96..RHD..(GEN,GHD)198808-199109
BROWN,TRIM4#,UPR; W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR
W(TILT & TELESCOPIC) OR HONGKONG CUSTOM PACKAGE,GRAY,TRIM1#,UPR
W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR
GRAY,TRIM1#,UPR; W(TILT & TELESCOPIC),GRAY,TRIM1#,UPR
BROWN,TRIM4#,LWR
GRAY,TRIM1#,LWR
BROWN,TRIM4#,LWR
GRAY,TRIM1#,LWR
45292SEAL, MAIN SHAFT LOWER DUST
45298PLUG, STEERING COLUMN COVER
45872COVER, STEERING COLUMN TUBE
main45872-36020iBU96..LHD..DSL;BU65,91..GEN..CBU;BU91..LHD..DSL..IV3;BU88..GEN..(CBU,IV3);BU60,61,66,67,70,83,84,87..GEN,GHD199112-199305
W(TILT & TELESCOPIC STEERING)
9011908560
main90119-08560
9015960255
main90159-60255
9016450048
main90164-50048
9161160616
main91611-60616
9166140820
main91661-40820
9166160625
main91661-60625
9331514012
main93315-14012
9331913012
main93319-13012
9354013008
main93540-13008
9418040800
main94180-40800
23 parts on this diagram · 2 diagrams in section
