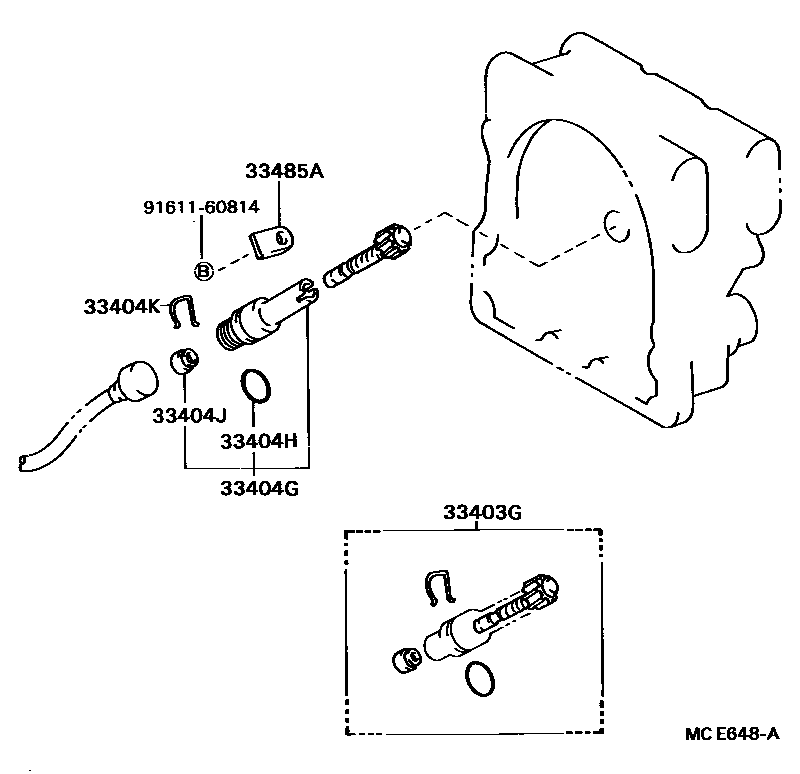

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-39156iBU66..ARL198808-199204

N=16,MARK 16:4

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-36010iBU66..ARL198808-199204

sub33404-37010

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iBU66..ARL198808-199204

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-10001iBU66..ARL198808-199204

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBU66..ARL198808-199204

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iBU66..ARL198808-199204

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
