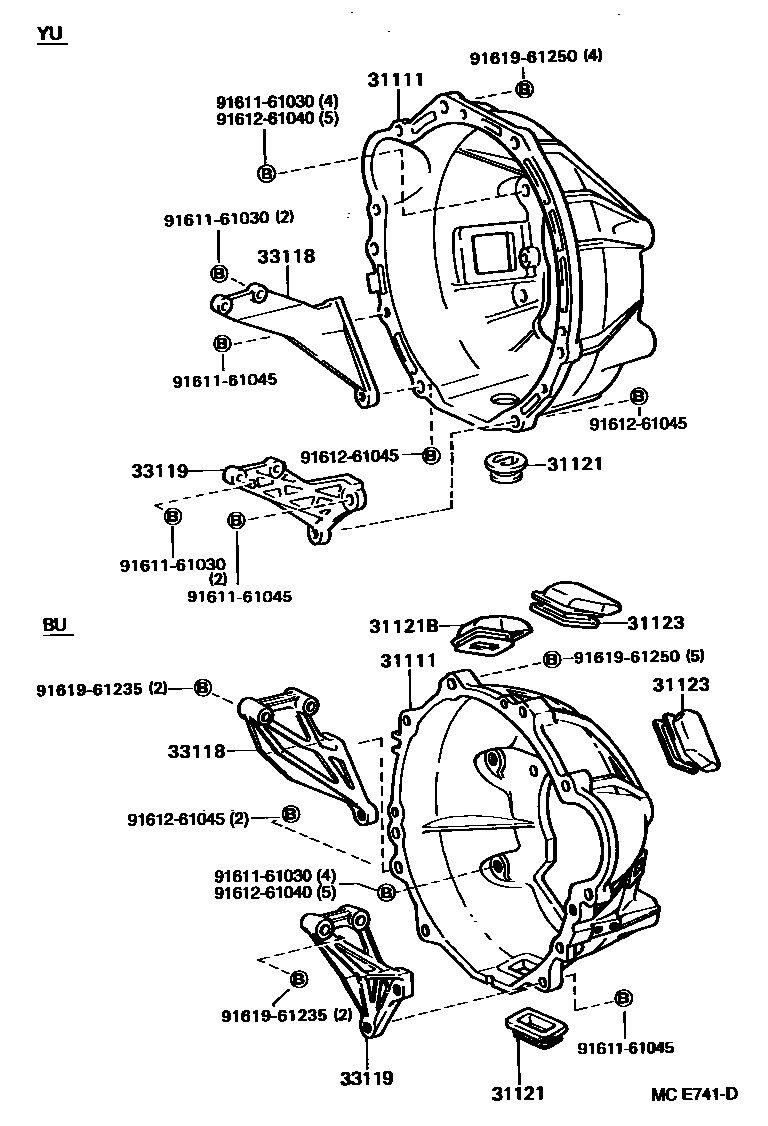

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0003 1 0004 1 0005 1

31111HOUSING, CLUTCH

main31111-36210iBU91,96..SA198808-199505

main31111-36221iBU88..RHD..GEN..IV3198910-199004

INDIA SPEC

sub31111-36222

main31111-36221iBU91,96..GEN;BU6#,70,8#,94..5F198808-198910

sub31111-36222

main31111-36222iBU88..RHD..GEN..IV3199004-199301

INDIA SPEC

main31111-36250iBU91..ARL198808-199505

main31111-36280iBU91..GEN;BU88,96..(ARL,GEN)..(CBU,IV3)198910-199410

sub31111-36281

main31111-36281iBU88..IV3199505-199703

VENEZUELA SPEC OR W(*EB) OR *AXC=Q424

main31111-36281iBU91..GEN;BU88,96..(ARL,GEN)..(CBU,IV3)199410-199505

main31111-36310iBU88..IV3199505-199703

INDIA SPEC OR INDIA SPEC & W(*EB)

main31111-36310iBU88..IV1;BU6#,70,83,84,87,94199301-199505

INDIA SPEC

31121COVER, CLUTCH HOUSING, NO.1

main31121-36040iBU88..RHD..GEN..IV3198910-199505

LWR

sub31121-36110

main31121-36040iBU91,96..ARL,GEN;BU6#,70,8#,94..5F198808-198910

sub31121-36110

main31121-36040iBU91..GEN;BU88,96..(ARL,GEN)..(CBU,IV3)198910-199505

INDIA SPEC

sub31121-36110

main31121-36040iBU88,94..IV1199505-199703

VENEZUELA SPEC OR W(*EB) OR *AXC=Q424,LWR

sub31121-36110

main31121-36040iBU88,94..IV1199505-199703

INDIA SPEC OR INDIA SPEC & W(*EB)

sub31121-36110

main31121-36070iBU91..GEN;BU88,96..(ARL,GEN)..(CBU,IV3)198910-199505

UPR

main31121-36070iBU88..IV3199505-199703

VENEZUELA SPEC OR W(*EB) OR *AXC=Q424,UPR

31121BCOVER, CLUTCH HOUSING, NO.3

main31121-28030iBU88..IV1;BU6#,70,83,84,87,94199301-199703

31123COVER, CLUTCH HOUSING, NO.2

main31121-28040iBU88..RHD..GEN..IV3199301-199505

sub31121-28041

main31121-28041iBU88,94..IV1199505-199703

33118PLATE, STIFFENER, RH(MTM)

main33118-36021iBU91,96..ARL,GEN;BU6#,70,8#,94..5F198808-199703

33119PLATE, STIFFENER, LH(MTM)

main33119-36040iBU91,96..ARL,GEN;BU6#,70,8#,94..5F198808-198910

sub33119-36041

main33119-36041iBU91,96..ARL,GEN;BU6#,70,8#,94..5F198910-199505

sub33119-36042

main33119-36042iBU88,94199505-199703

9161161030

main91611-61030

9161161045

main91611-61045

9161261040

main91612-61040

9161261045

main91612-61045

9161961235

main91619-61235

9161961250

main91619-61250

12 parts on this diagram · 4 diagrams in section
