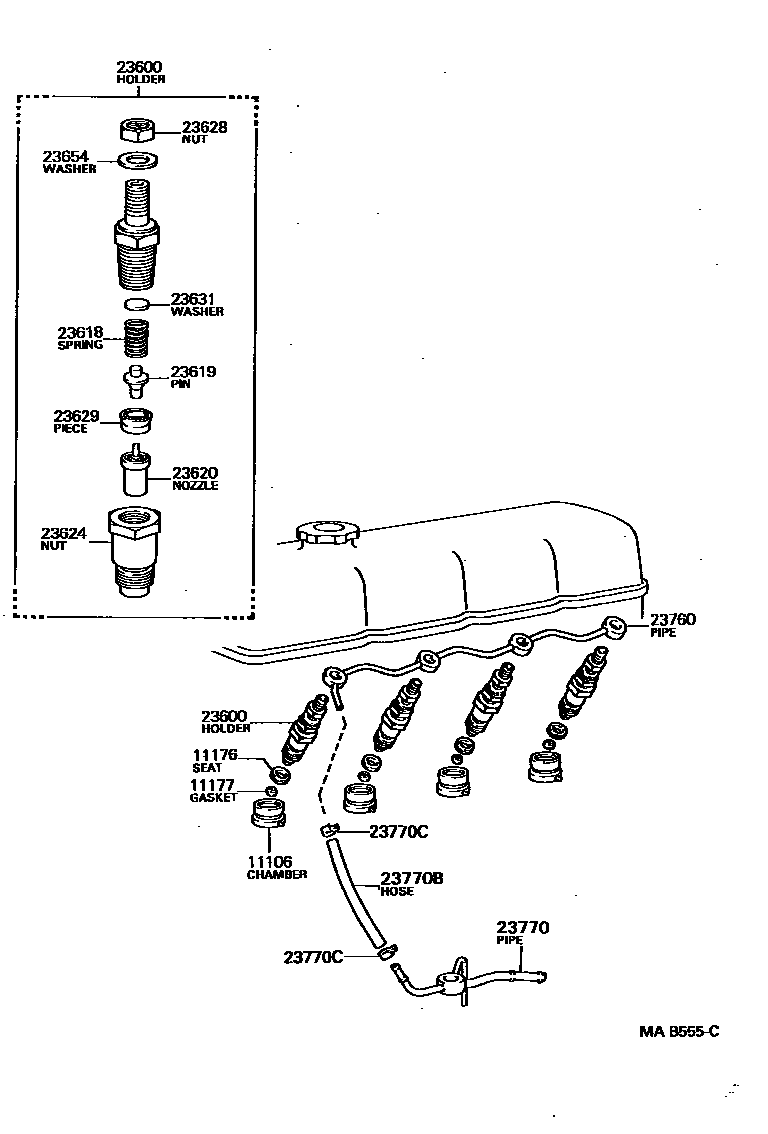

INJECTION NOZZLE

0001 1 0002 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-56032iB..BU60,70,83198808-199505

11176SEAT, INJECTION NOZZLE

main11176-56010iB..BU60,70,83198808-199505

main11176-56030i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

sub11176-56031

11177GASKET, INJECTION NOZZLE SEAT

main11177-56010iB..BU60,70,83198808-199505

main90430-17003i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

23600HOLDER & NOZZLE SET, NOZZLE

main23600-56020iB..BU60,70,83198808-199505

main23600-56040i11B..BU61,65,84198808-199505

main23600-58030i14B..BU66,67,87,88,9#198808-199703

sub23600-59415

main23600-58040i14BT..BU91,96199004-199305

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-56010iB..BU60,70,83198808-199505

main23618-58030i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

23619PIN, NOZZLE HOLDER PRESSURE

main23619-46010iB..BU60,70,83198808-199505

main23619-58030i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

23620NOZZLE ASSY

main23620-56020iB..BU60,70,83198808-199505

main23620-56040i11B..BU61,65,84198808-199505

main23620-58030i14B..BU66,67,87,88,9#198808-199703

main23620-58040i14BT..BU91,96199004-199305

23624NUT, NOZZLE RETAINING

main23624-54020iB..BU60,70,83198808-199505

sub23624-58080

main23624-58010i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

23628NUT(FOR RING PACKING SETTING)

main23628-46010iB..BU60,70,83198808-199505

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-46010iB..BU60,70,83198808-199505

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-46010iB..BU60,70,83198808-199505

T=1.000

main23631-58010i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.000

main23631-58011i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.050

main23631-58012i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.100

main23631-58013i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.150

main23631-58014i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.200

main23631-58015i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.250

main23631-58016i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.300

main23631-58017i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.350

main23631-58018i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.400

main23631-58019i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.450

main23632-46010iB..BU60,70,83198808-199505

T=1.050

main23632-58010i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.500

main23632-58011i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.550

main23632-58012i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.600

main23632-58013i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.650

main23632-58014i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.700

main23632-58015i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.750

main23632-58016i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.800

main23632-58017i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.275

main23632-58018i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.325

main23632-58019i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.375

main23633-46010iB..BU60,70,83198808-199505

T=1.100

main23633-58010i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.425

main23633-58011i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.475

main23633-58012i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=0.950

main23633-58013i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=0.700

main23633-58014i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=0.750

main23633-58015i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=0.800

main23633-58016i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=0.850

main23633-58017i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=0.900

main23633-58018i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=0.975

main23633-58019i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.025

main23634-46010iB..BU60,70,83198808-199505

T=1.150

main23634-58010i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.075

main23634-58011i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.125

main23634-58012i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.175

main23634-58013i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

T=1.225

main23635-46010iB..BU60,70,83198808-199505

T=1.200

main23636-46010iB..BU60,70,83198808-199505

T=1.250

main23637-46010iB..BU60,70,83198808-199505

T=1.300

main23638-46010iB..BU60,70,83198808-199505

T=1.350

main23639-46010iB..BU60,70,83198808-199505

T=1.400

main23641-46010iB..BU60,70,83198808-199505

T=1.450

main23642-46010iB..BU60,70,83198808-199505

T=1.500

main23643-46010iB..BU60,70,83198808-199505

T=1.550

main23644-46010iB..BU60,70,83198808-199505

T=1.600

main23645-46010iB..BU60,70,83198808-199505

T=1.650

main23646-46010iB..BU60,70,83198808-199505

T=1.700

main23647-46010iB..BU60,70,83198808-199505

T=1.750

main23648-46010iB..BU60,70,83198808-199505

T=1.800

main23649-46010iB..BU60,70,83198808-199505

T=1.850

main23651-46010iB..BU60,70,83198808-199505

T=1.900

main23652-46010iB..BU60,70,83198808-199505

T=1.950

23654WASHER(FOR RING PACKING)

main23654-46010iB..BU60,70,83198808-199505

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-56040iB..BU60,70,83198808-199505

main23760-56060i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-56090i14B..BU91,96;B,11B,14B..BU6#,70,8#,94..ARL,GEN,GHD198808-199703

main23770-56100i11B..BU65..GEN..CBU;B,11B,14B..BU60,61,66,70,83,84,88,91,96..(GEN,GHD)..(CBU,IV3)198808-199703

W(HAC)

main23770-56100i11B..BU84..SA198808-199505

main23770-58030i14BT..BU91,96199004-199305

23770BHOSE, FUEL

main90447-11027i11B..BU61,65,84198808-199703

main95333-04020iB..BU60,70,83198808-199505

L=200

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-30400iB,11B,14B#..BU6#,70,8#,9#198808-199302

sub96132-51000

main96132-41000iB,11B,14B#..BU6#,70,8#,9#199302-199703
