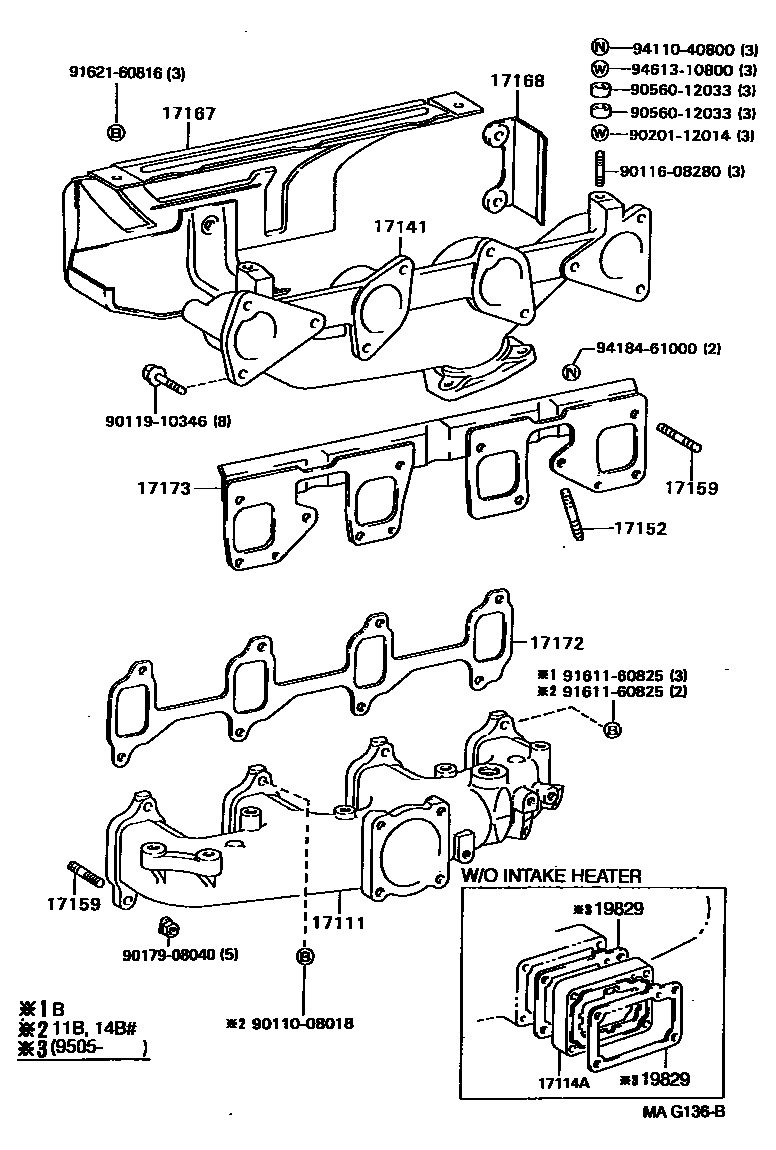

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17111-56180iB..BU60,70,83198808-199505

sub17111-58090

sub17171-58020

sub90341-18006

sub90430-18002

main17111-56190i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199505

sub17111-58060

sub17171-58020

main17111-58060i14B..BU88,94199505-199703

17114AFLANGE, INTAKE

main17114-58010i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199505

sub17114-58020

sub19829-17010

main17114-58020i14B..BU88,94199505-199703

17141MANIFOLD, EXHAUST

main17141-56060iB,11B,14B..BU6#,70,8#,9#198808-199703

main17141-58020i14BT..BU91,96199004-199305

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10087iB,11B,14B#..BU6#,70,8#,9#198808-199505

main90126-10006i14B..BU88,94199505-199703

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08352iB,11B,14B#..BU6#,70,8#,9#199002-199703

INTAKE MANIFOLD

main90116-10063i14B..BU88,94199505-199703

EXHAUST MANIFOLD

main90116-10098iB,11B,14B#..BU6#,70,8#,9#198904-199505

EXHAUST MANIFOLD

sub90116-10063

main90116-10147iB,11B,14B..BU6#,70,8#,9#198808-198904

EXHAUST MANIFOLD

sub90116-10098

main92132-60825iB,11B,14B..BU6#,70,8#,9#198808-199002

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-56040i11B,14B..BU61,65,66,88,91..ARL198808-199505

sub17167-56060

sub91621-B0816

main17167-56050i11B,14B..BU61,65,88,91..GEN,SA;B,11B,14B..BU60,66,67,70,83,84,87,94,96..5F198808-199212

sub17167-56060

main17167-56060i11B,14B..BU61,65,66,88,91..GEN,SA;B,11B,14B..BU60,67,70,83,84,87,94,96199212-199703

main17167-58020i14BT..BU91,96199004-199305

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-56010iB,11B,14B#..BU6#,70,8#,9#198808-199505

sub17168-58060

main17168-58060i14B..BU88,94199505-199703

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-56010iB,11B,14B#..BU6#,70,8#,9#198808-199505

main17171-58020i14B..BU88,94199505-199703

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-56040iB,11B,14B..BU6#,70,8#,9#198808-199703

main17173-58020i14BT..BU91,96199004-199305

19829GASKET, INTAKE HEATER

main19829-17010i14B..BU88,94199505-199703

9011008018

main90110-08018

9011608280

main90116-08280

9011910346

main90119-10346

9017908040

main90179-08040

9020112014

main90201-12014

9056012033

main90560-12033

9161160825

main91611-60825

9162160816

main91621-60816

9411040800

main94110-40800

9418461000

main94184-61000

9461310800

main94613-10800

21 parts on this diagram · 3 diagrams in section
