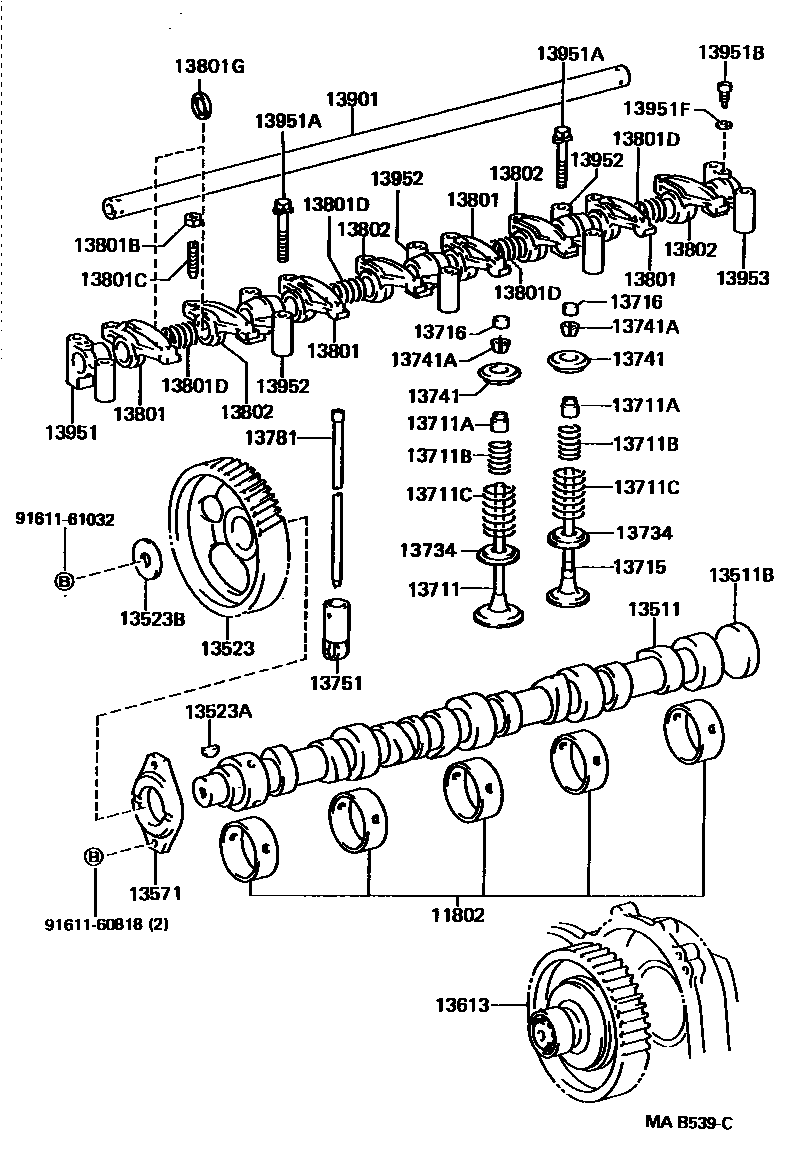

CAMSHAFT & VALVE

11802BEARING SET, CAMSHAFT

main11802-56030iB,11B,14B#..BU6#,70,8#,9#198808-199703

STD

13511CAMSHAFT

main13511-56060iB..BU60,70,83198808-199505

main13511-56070i11B,14B..BU61,65,66,67,84,87,88,9#198808-199703

main13511-58010i14BT..BU91,96199004-199305

13511BPLUG, EXPANSION(FOR CAMSHAFT)

main90331-58001iB,11B,14B#..BU6#,70,8#,9#198808-199703

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-56040iB,11B,14B#..BU6#,70,8#,9#198808-199505

main13523-58010i14B..BU88,94199505-199703

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main95161-10519iB,11B,14B#..BU6#,70,8#,9#198808-199301

main95161-30519iB,11B,14B#..BU6#,70,8#,9#199301-199703

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-10227iB,11B,14B#..BU6#,70,8#,9#198808-199703

13571PLATE, CAMSHAFT THRUST

main13571-56030iB,11B,14B#..BU6#,70,8#,9#198808-199703

13613GEAR, INJECTION PUMP DRIVE

main22407-56030iB,11B,14B#..BU6#,70,8#,9#198808-199505

main22407-58010i14B..BU88,94199505-199703

13711VALVE, INTAKE

main13711-56050×4iB..BU60,70,83198808-199505

main13711-56060×4i11B..BU61,65,84198808-199505

main13711-58020×4i14B#..BU66,67,87,88,9#198808-199505

main13711-58021×4i14B..BU88,94199505-199703

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02076×8iB,11B,14B#..BU6#,70,8#,9#198808-199703

13711BSPRING, COMPRESSION(FOR INNER)

main90501-33012×8iB,11B..BU60,61,65,70,83,84198808-198905

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-45032×8iB,11B,14B#..BU6#,70,8#,9#198808-199703

13715VALVE, EXHAUST

main13715-56050×4iB..BU60,70,83198808-199505

main13715-56060×4i11B..BU61,65,84198808-199505

main13715-58040×4i14B..BU66,67,87,88,9#198808-199505

main13715-58041×4i14B..BU88,94199505-199703

main13715-58060×4i14BT..BU91,96199004-199305

13716CAP, VALVE STEM

main13716-56010×8iB,11B,14B#..BU6#,70,8#,9#198808-199703

13734SEAT, VALVE SPRING

main13734-56010×8iB,11B,14B#..BU6#,70,8#,9#198808-199703

13741RETAINER, VALVE SPRING

main13741-56040×8iB,11B,14B#..BU6#,70,8#,9#198808-199703

13741ALOCK, VALVE SPRING RETAINER

main90913-03024×16iB,11B,14B#..BU6#,70,8#,9#198808-199703

13751LIFTER, VALVE

main13750-58010×8i14B..BU87;B,11B,14B#..BU6#,70,83,84,88,9#..ARL,GEN,SA198808-199008

13781ROD, VALVE PUSH

main13781-56020×8iB,11B,14B#..BU6#,70,8#,9#198808-199703

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-56050×4iB..BU60,70,83198808-199505

main13811-56060×4i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199505

main13811-58030×4i14B..BU88,94199505-199703

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90179-08129×8iB,11B,14B#..BU6#,70,8#,9#198808-199505

main90179-08248×8i14B..BU88,94199505-199703

13801CSCREW, VALVE ADJUSTING

main90913-05022×8iB,11B,14B#..BU6#,70,8#,9#198808-199505

main90913-05025×8i14B..BU88,94199505-199703

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16114×4iB,11B,14B#..BU6#,70,8#,9#198808-199703

13801GWASHER, PLATE(FOR VALVE ROCKER ARM)

main90201-19009×8iB,11B,14B#..BU6#,70,8#,9#198808-199703

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13811-56060×4i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199505

main13811-58030×4i14B..BU88,94199505-199703

main13812-56040×4iB..BU60,70,83198808-199505

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-56030iB,11B,14B#..BU6#,70,8#,9#198808-199703

13951SUPPORT, VALVE ROCKER, NO.1

main13951-56030iB..BU60,70,83198808-199505

main13951-56040i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08165×5iB,11B,14B#..BU6#,70,8#,9#198808-199703

*8-1.25X53-30

main90105-08177×5iB,11B,14B#..BU6#,70,8#,9#198808-199703

*8-1.25X63-30

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main13958-56010×2iB,11B,14B#..BU6#,70,8#,9#198808-199703

13951FWASHER, PLATE(FOR VALVE ROCKER SUPPORT)

main90201-06350×2iB,11B,14B#..BU6#,70,8#,9#198808-199703

13952SUPPORT, VALVE ROCKER, NO.2

main13952-56030×3iB..BU60,70,83198808-199505

main13952-56040×3i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

13953SUPPORT, VALVE ROCKER, NO.3

main13953-56030iB..BU60,70,83198808-199505

main13953-56040i11B,14B#..BU61,65,66,67,84,87,88,9#198808-199703

9161160818

main91611-60818

9161161032

main91611-61032

34 parts on this diagram · 1 diagram in section
