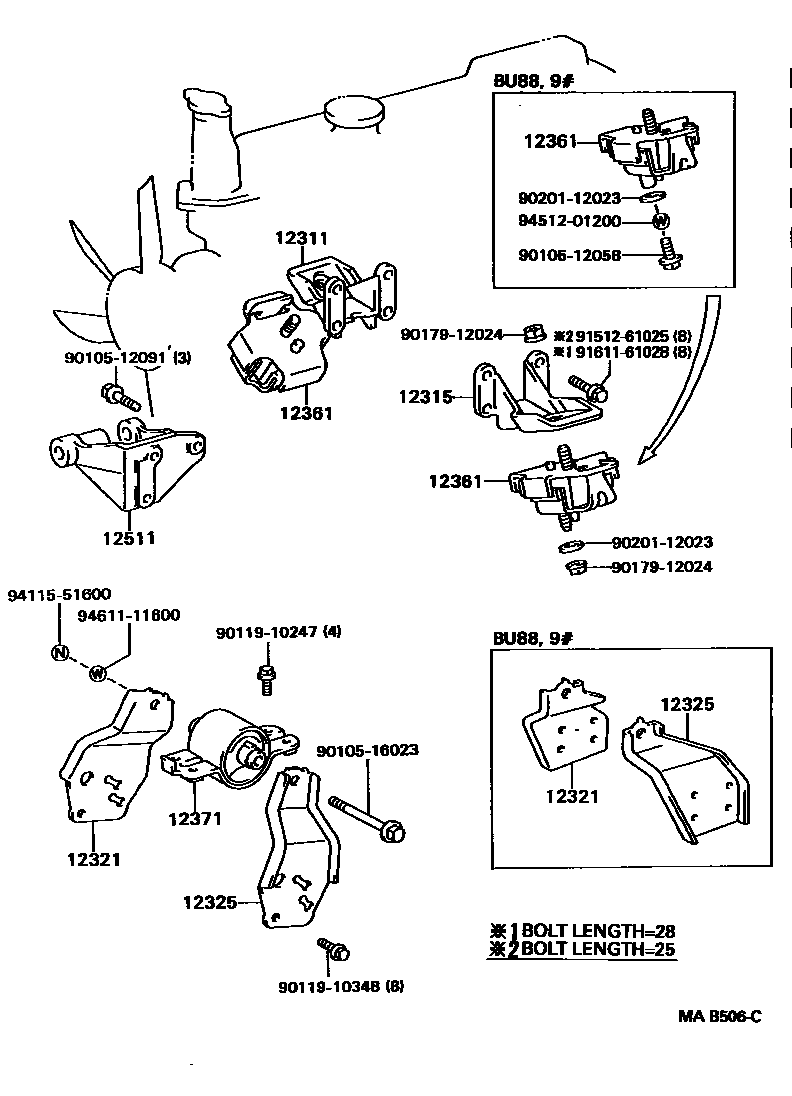

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-56040iB,11B,14B..BU6#,70,83,84,87198808-198905

main12311-58021i14B#..BU88,9#198808-199703

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-56040iB,11B,14B..BU6#,70,83,84,87198808-198905

main12311-58021i14B#..BU88,9#198808-199703

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-56070i14B..BU66..ARL198808-199204

main12321-56080iB,11B,14B..BU6#,70,83,84,87..5F198808-199505

main12321-58050i14B#..BU88,94,96;14B#..BU91..GEN,SA198808-199703

main12321-78010i14B..BU91..ARL198808-199505

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-56060i14B..BU66..ARL198808-199204

main12325-56070iB,11B,14B..BU6#,70,83,84,87..5F198808-199505

main12325-58050i14B#..BU88,94,96;14B#..BU91..GEN,SA198808-199703

main12325-78010i14B..BU91..ARL198808-199505

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-56071iB,11B,14B..BU6#,70,83,84,87198808-199505

RH

main12361-58040×2i14B#..BU88,9#198808-199703

main12362-56011iB,11B,14B..BU6#,70,83,84,87198808-199505

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-56041i14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-199703

main12371-56050i14B..BU91,96..SA198808-199505

12511BRACKET, ALTERNATOR, NO.1

main12501-56010iB,11B,14B#..BU6#,70,8#,9#198808-199703

9010512058

main90105-12058

9010512091

main90105-12091

9010516023

main90105-16023

9011910247

main90119-10247

9011910348

main90119-10348

9017912024

main90179-12024

9020112023

main90201-12023

9151261025

main91512-61025

9161161028

main91611-61028

9411551600

main94115-51600

9451201200

main94512-01200

9461111600

main94611-11600

19 parts on this diagram · 1 diagram in section
