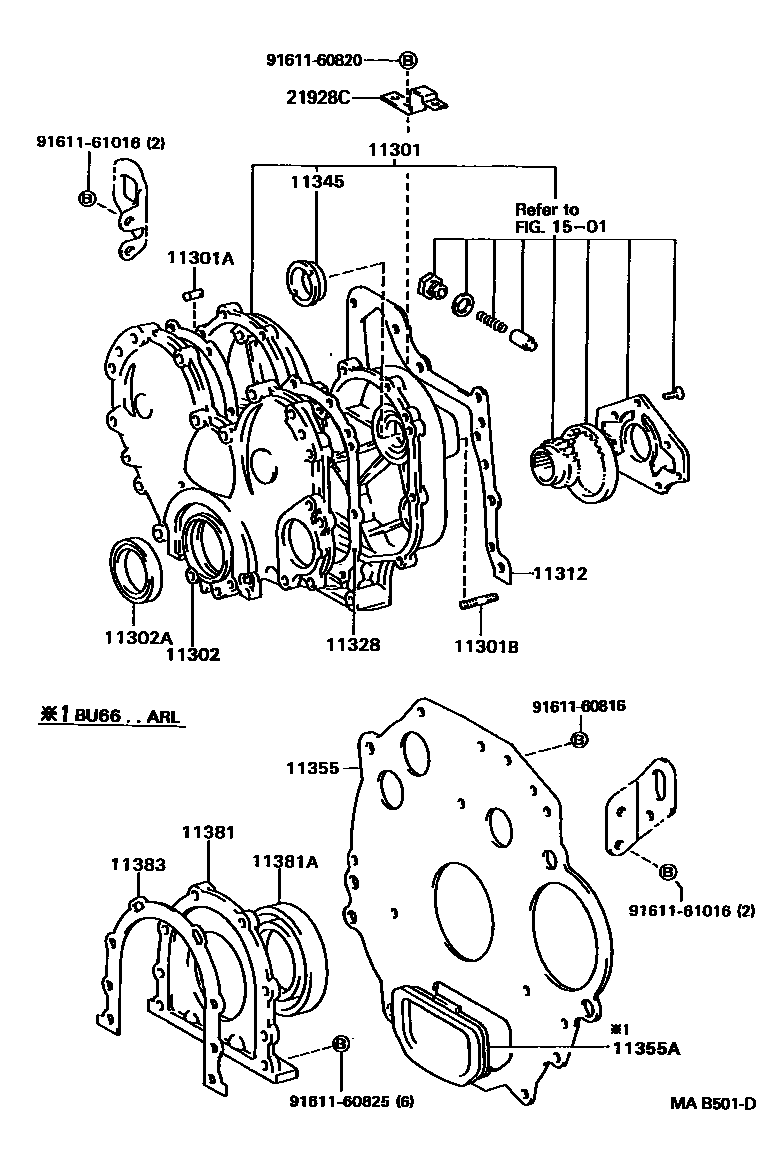

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-56080iB,11B,14B..BU6#,70,8#,9#198808-199505

main11301-56090i14BT..BU91,96199004-199305

main11301-58020i14B..BU88,94199505-199703

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120×2iB,11B,14B#..BU6#,70,8#,9#198808-199703

L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-08169×2iB,11B,14B#..BU6#,70,8#,9#198808-199703

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-56060i11B..BU65..ARL;B,11B..BU60,61,83,84..(T1,T3)..(ARL,GEN,GHD)..(CBU,IV3); 14B..BU66,88,91,96..(ARL,GEN)..(CBU,IV3)198810-198903

W(POWER STEERING)

main11302-56061i11B..BU65..ARL;14B..BU66..T3..TB;B,14B..BU60,91..T3..GEN;B,11B,14B..BU61,67,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3); 14BT..BU91,96;14B..BU66..TS;14B..BU66..T2;14B..BU91..ARL198910-199505

W(POWER STEERING)

main11302-56070iB,11B..BU60,61,65,70,83,84198810-198903

main11302-56071i14B..BU91..GEN,SA;14B..BU66..T3..TB;B,11B,14B..BU60,61,65,67,70,8#,94,96198910-199505

main11302-58020i14B..BU88,94199505-199703

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-50013iB,11B,14B#..BU6#,70,8#,9#198808-199703

11312GASKET, FRONT END PLATE

main11312-56040iB,11B,14B#..BU6#,70,8#,9#198808-199703

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-56050iB,11B,14B#..BU6#,70,8#,9#198808-199703

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010iB,11B,14B#..BU6#,70,8#,9#198808-199703

11355PLATE, REAR END

main11355-56060iB,11B,14B..BU6#,70,8#,9#..5F198808-198910

main11355-56061iB,11B,14B#..BU6#,70,8#,9#..5F198910-199703

main11355-58020i14B..BU66..ARL198808-198910

main11355-58021i14B..BU66..ARL198910-199204

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263i14B..BU66..ARL198808-199204

11381RETAINER, ENGINE REAR OIL SEAL

main11381-56032iB,11B..BU60,61,65,70,83,84198808-198901

main11381-56033iB,11B,14B#..BU6#,70,8#,9#198910-199411

main11381-58010iB,11B,14B..BU6#,70,8#,9#199411-199703

11381ASEAL, ENGINE REAR OIL

main90311-95005iB,11B,14B..BU6#,70,8#,9#198808-199001

main90311-95008iB,11B,14B#..BU6#,70,8#,9#199001-199303

main90311-95010iB,11B,14B#..BU6#,70,8#,9#199303-199412

main90311-95011i14B..BU88,94199505-199703

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56040iB,11B,14B#..BU6#,70,8#,9#198808-199703

1501ENGINE OIL PUMP

→ Go to FIG 15-01

21928CSUPPORT, THROTTLE WIRE

main21928-58060i14BT..BU91,96199004-199305

9161160816

main91611-60816

9161160820

main91611-60820

9161160825

main91611-60825

9161161016

main91611-61016
