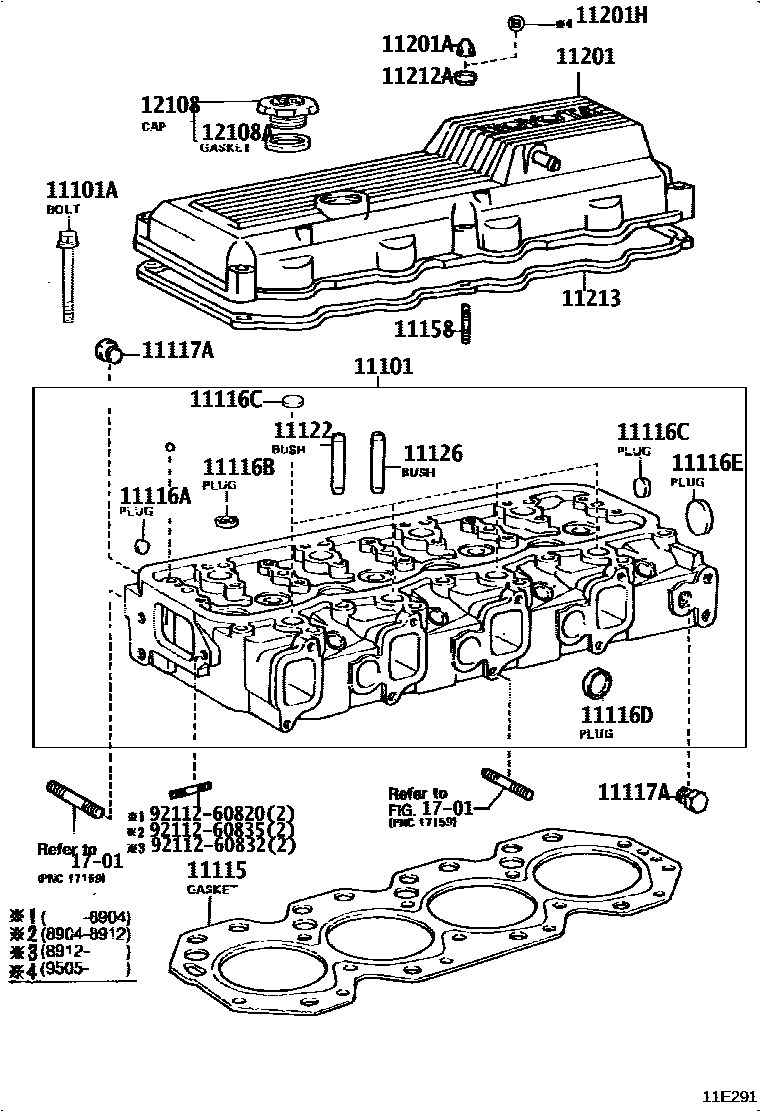

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-56050iB..BU60,70,83198808-199505

main11101-56060i11B..BU61,65,84198808-199505

main11101-58040i14B..BU66,67,87,88,9#198808-199505

main11101-58041i14B..BU88,94199505-199703

main11101-58060i14BT..BU91,96199004-199305

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02084×18iB,11B,14B#..BU6#,70,8#,9#198808-199703

11115GASKET, CYLINDER HEAD

main11115-56090iB,11B..BU60,61,65,70,83,84198808-199505

T=1.50

main11115-56100i11B..BU61,65,84198808-199505

T=1.60

main11115-56110i11B..BU61,65,84198808-199505

T=1.70

main11115-58070i14B#..BU66,67,87,88,9#198808-199703

T=1.50

main11115-58090i14B#..BU66,67,87,88,9#198808-199703

T=1.60

main11115-58100i14B#..BU66,67,87,88,9#198808-199703

T=1.70

11116APLUG, TIGHT, NO.1

main90331-12004×4iB,11B,14B..BU6#,70,8#,9#199411-199703

main96411-41200×4iB,11B,14B#..BU6#,70,8#,9#198808-199411

11116BPLUG, TIGHT, NO.2

main96411-44000×4iB,11B,14B#..BU6#,70,8#,9#198808-199411

main96411-64000×4iB,11B,14B..BU6#,70,8#,9#199411-199703

11116CPLUG, TIGHT, NO.3

main90331-21001i11B,14B#..BU61,65,66,67,84,87,88,9#; B..BU60,70,83198808-199411

main96411-62000×5iB..BU60,70,83199411-199505

11116DPLUG, TIGHT, NO.4

main96411-42800×3iB,11B,14B#..BU6#,70,8#,9#198808-199411

main96411-62800×3iB,11B,14B..BU6#,70,8#,9#199411-199703

11116EPLUG, TIGHT, NO.5

main96411-44000iB,11B,14B#..BU6#,70,8#,9#198808-199411

main96411-64000iB,11B,14B..BU6#,70,8#,9#199411-199703

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90345-54005×2i14B..BU88,91,96..GEN;B,11B,14B..BU6#,70,83,84,87,94..5F198808-198905

11122BUSH, INTAKE VALVE GUIDE

main11122-56030×4iB,11B,14B#..BU6#,70,8#,9#198808-199703

STD

11126BUSH, EXHAUST VALVE GUIDE

main11122-56030×4iB,11B,14B#..BU6#,70,8#,9#198808-199703

STD

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-08282×6iB,11B,14B#..BU6#,70,8#,9#198808-199505

L=60

main92112-60850×2i14B..BU88,94199505-199703

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-56100iB,11B,14B..BU6#,70,8#,9#198808-198910

main11201-56101iB,11B,14B#..BU6#,70,8#,9#198910-199505

main11201-58050i14B..BU88,94199505-199703

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08038×6iB,11B,14B#..BU6#,70,8#,9#198808-199302

main90179-08025×2i14B..BU88,94199505-199703

main90179-08159×6iB,11B,14B#..BU6#,70,8#,9#199302-199505

11201HBOLT(FOR CYLINDER HEAD COVER)

main91511-60850×4i14B..BU88,94199505-199703

11212ACUSHION, CYLINDER HEAD COVER

main11228-56010×6iB,11B,14B#..BU6#,70,8#,9#198808-199703

11213GASKET, CYLINDER HEAD COVER

main11213-56030iB,11B,14B#..BU6#,70,8#,9#198808-199505

main11213-58030i14B..BU88,94199505-199703

12108CAP SUB-ASSY, OIL FILLER

main12180-13030iB,11B,14B#..BU6#,70,8#,9#198808-199312

main12180-55010iB,11B,14B..BU6#,70,8#,9#199312-199703

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140iB,11B,14B#..BU6#,70,8#,9#198808-199703

1701MANIFOLD

→ Go to FIG 17-01

9211260820

main92112-60820

9211260832

main92112-60832

9211260835

main92112-60835

23 parts on this diagram · 1 diagram in section
