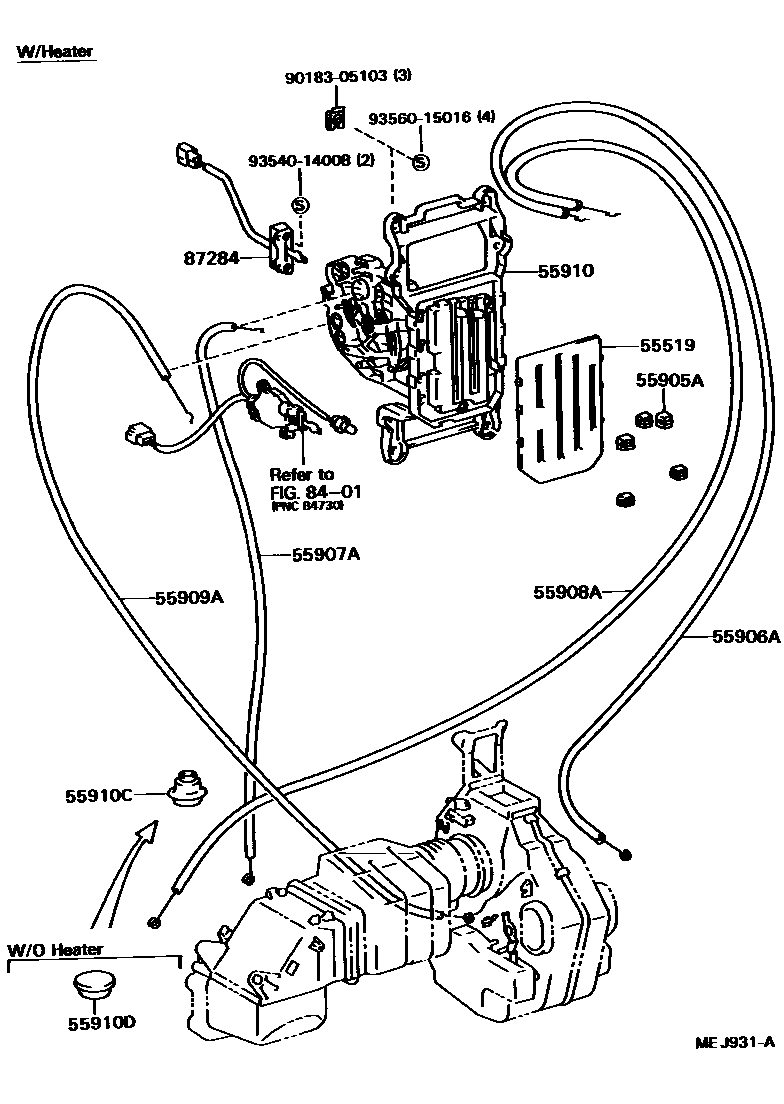

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1

55519PLATE, HEATER CONTROL NAME

main55519-95403iBU80..LHD..CBU;BU65,80,81..RHD..(GEN,GHD);BU60,61,62,70,82,85,86,93..GEN,GHD198710-198808

W(BOOST VENTILATOR)

main55519-95404iBU65..GEN..CBU;BU60,61,62,70,8#,93..GEN,GHD198710-198808

W(FOOT VENTILATOR)

main55519-95406iBU60..LHD..WT;BU80..LHD..CBU; BU60..TW1..GEN; BU65..IV3;BU6#,81,85..ARL,SA; BU80..LHD..IV3; BU81..LHD; BU85..LHD198708-198808

W(HEATER)

55905AKNOB, HEATER CONTROL

main55905-10110×3iBU60..TW1..GEN; BU65..IV3;BU6#,81,85..ARL,SA; BU80..LHD..CBU;BU60,85..LHD..WT; BU80..LHD..IV3198708-198808

W(HEATER),CABLE LEVER

main55905-95707iBU6#,85..ARL; BU60,80,85..LHD..WT; BU60..TW1..GEN; BU65..GEN..CBU;BU60,61,80,81..RHD..WT..GEN..IV3; BU65..IV3;BU6#,81,85..ARL,SA; BU80..LHD..CBU;BU60,85..LHD..WT; BU80..LHD..IV3; BU81..SA; BU85..RHD..GEN..(CBU,IV3)198708-198808

BLOWER SW; BLOWER SW OR VARIABLE RESISTOR

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95404iBU6#,81..ARL,SA; BU60,61,65,80,81,82..RHD..(GEN,GHD)198708-198808

main55906-95405iBU85,86..RHD..GEN198708-198710

main55906-95406iBU60..LHD..WT;BU80..LHD..CBU; BU60..T3..ST;BU61,62,70..LHD; BU60..TW1..GEN; BU65..IV3; BU80..LHD..IV3; BU81..LHD198708-198808

main55906-95407iBU85..LHD198708-198808

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95404iBU6#,81..ARL,SA; BU60,61,65,80,81,82..RHD..(GEN,GHD)198708-198808

main55907-95405iBU85,86..RHD..GEN198708-198710

main55907-95406iBU60..LHD..WT;BU80..LHD..CBU; BU60..T3..ST;BU61,62,70..LHD; BU60..TW1..GEN; BU65..IV3; BU80..LHD..IV3; BU81..LHD198708-198808

main55907-95407iBU85..LHD198708-198808

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95402iBU60..LHD..WT;BU80..LHD..CBU; BU60..T3..ST;BU61,62,70,82..GEN,GHD;BU60,65,80,81..RHD..(GEN,GHD); BU60..TW1..GEN; BU65..IV3;BU6#,81..ARL,SA; BU80..LHD..IV3; BU81..LHD198708-198808

W(BOOST VENTILATOR) OR W(HEATER); W(HEATER)

main55908-95403iBU85..ARL; BU85..LHD198708-198808

W(BOOST VENTILATOR) OR W(HEATER); W(HEATER)

main55908-95404iBU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD198708-198808

W(FOOT VENTILATOR)

main55908-95405iBU85,86,93..GEN198710-198808

W(FOOT VENTILATOR)

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iBU6#,81..ARL,SA; BU60,61,65,80,81,82..RHD..(GEN,GHD)198708-198808

main55909-95405iBU85,86,93..RHD..GEN198710-198808

main55909-95406iBU60..LHD..WT;BU80..LHD..CBU; BU60..T3..ST;BU61,62,70..LHD; BU60..TW1..GEN; BU65..IV3; BU80..LHD..IV3; BU81..LHD198708-198808

main55909-95407iBU85..LHD198708-198808

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95409iBU60..LHD..WT;BU80..LHD..CBU; BU60..TW1..GEN; BU65..IV3;BU6#,81,85..ARL,SA; BU80..LHD..IV3; BU81..LHD; BU85..LHD198708-198808

W(HEATER)

main55910-95410iBU80..LHD..IV3; BU81..LHD198708-198808

W(BOOST VENTILATOR)

main55910-95411iBU65..GEN..CBU;BU60,61,62,70,8#..GEN,GHD198708-198710

W(FOOT VENTILATOR)

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-15001iBU85,86,93..RHD..GEN198710-198808

main90480-24215iBU60..LHD..WT;BU80..LHD..CBU; BU60..T3..ST;BU61,62,70,82..GEN,GHD;BU60,65,80,81..RHD..(GEN,GHD); BU60..TW1..GEN; BU65..IV3;BU6#,81..ARL,SA; BU80..LHD..IV3; BU81..LHD198708-198808

55910DPLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)

main90950-01127iBU80..LHD..CBU;BU60,61,62,70,82..GEN,GHD;BU65,80,81..RHD..(GEN,GHD); BU80..LHD..IV3; BU81..LHD198708-198808

main90950-01258iBU85,86..GEN198708-198710

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iBU6#,85..ARL; BU60,80..LHD..WT; BU60..TW1..GEN; BU65..GEN..CBU;BU60,61,80,81..RHD..WT..GEN..IV3; BU81..SA; BU85..LHD; BU85..RHD..GEN..(CBU,IV3)198708-198808

9018305103

main90183-05103

9354014008

main93540-14008

9356015016

main93560-15016

14 parts on this diagram · 5 diagrams in section
