MIRROR

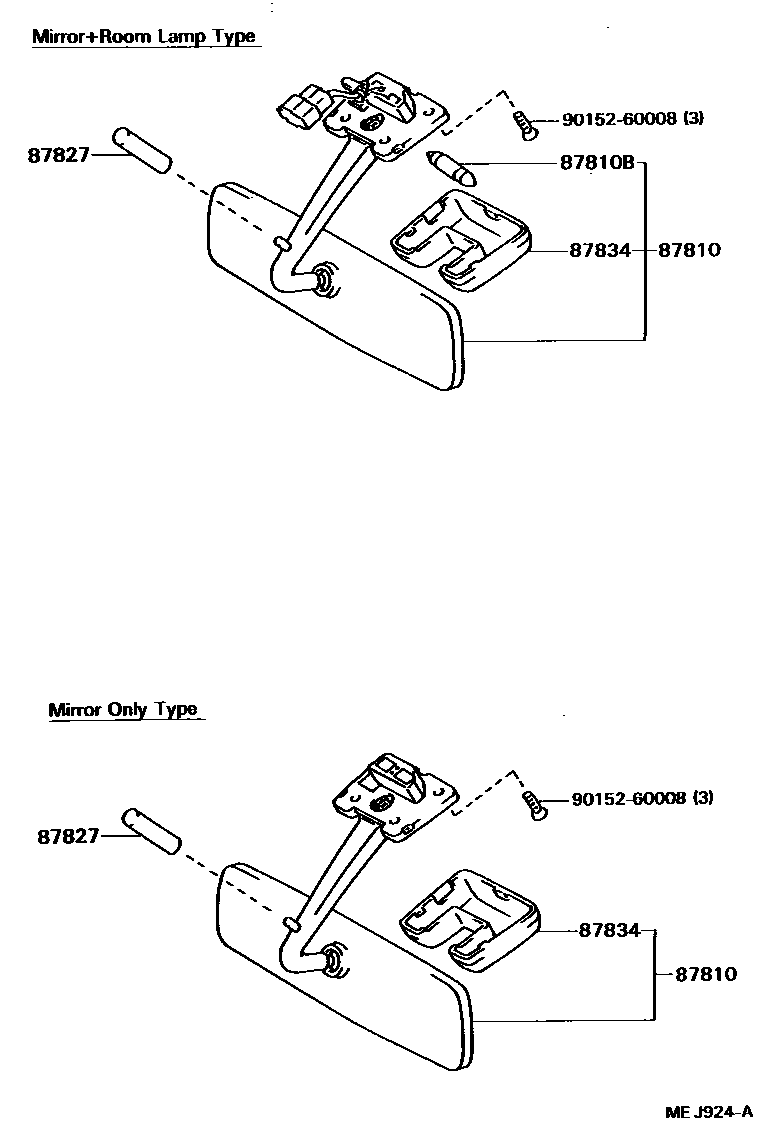

87810MIRROR ASSY, INNER REAR VIEW
ALGERIA SPEC,BLACK,TRIM4#; BLACK,TRIM4#; CHINA SPEC,BLACK,TRIM4#
BLACK,TRIM4#
CHINA SPEC,BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
SWITZERLAND SPEC
87810BBULB, INNER REAR VIEW MIRROR LAMP
12V 10W
main90981-16019iBU60..TW1..GEN;BU80..LHD..CBU;BU60,85..LHD..WT; BU65..IV3; BU80..LHD..IV3; BU81..LHD198708-198808
24V 10W
87827ABSORBER, INNER REAR VIEW MIRROR
L=38.5
L=43.5
L=46.5
L=49.5
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
9015260008
main90152-60008
5 parts on this diagram · 2 diagrams in section
