REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-92601×2iBU70198708-198808

main81270-95015×2iBU60,61,62,85,86,93198708-198808

main81270-95423×2iBU60..TW1..GEN;BU60,85..LHD..WT198708-198808

CHINA SPEC

main81270-95424×2iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

main81270-95425×2iBU80..LHD; BU81..LHD198708-198808

ALGERIA SPEC; CHINA SPEC

main81270-95426×2iBU80,81;BU65,82..RHD198708-198808

main81270-95427×2iBU65..IV3198708-198808

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2iBU65..CBU;BU60,61,62,70,8#,93198708-198808

12V 10W

main90981-16017×2iBU65..IV3; BU80..LHD..IV3198708-198808

24V 10W; 24V 10W,SWITZERLAND SPEC

main99134-11120×2iBU60..TW1..GEN;BU60,80,85..LHD..WT; BU81..LHD198708-198808

24V 12W,ALGERIA SPEC; 24V 12W,CHINA SPEC

81271LENS, LICENSE PLATE LAMP

main81271-10010×2iBU6#,70,8#,93198708-198808

81272GASKET, LICENSE PLATE LAMP LENS

main81272-10010×2iBU6#,70,8#,93198708-198808

81278COVER, LICENSE PLATE LAMP

main81278-10011×2iBU60,61,62,85,86,93; BU80..LHD..IV3198708-198808

SWITZERLAND SPEC

main81278-95425×2iBU65,70,80,81,82198708-198808

9017904092

main90179-04092

9324964005

main93249-64005

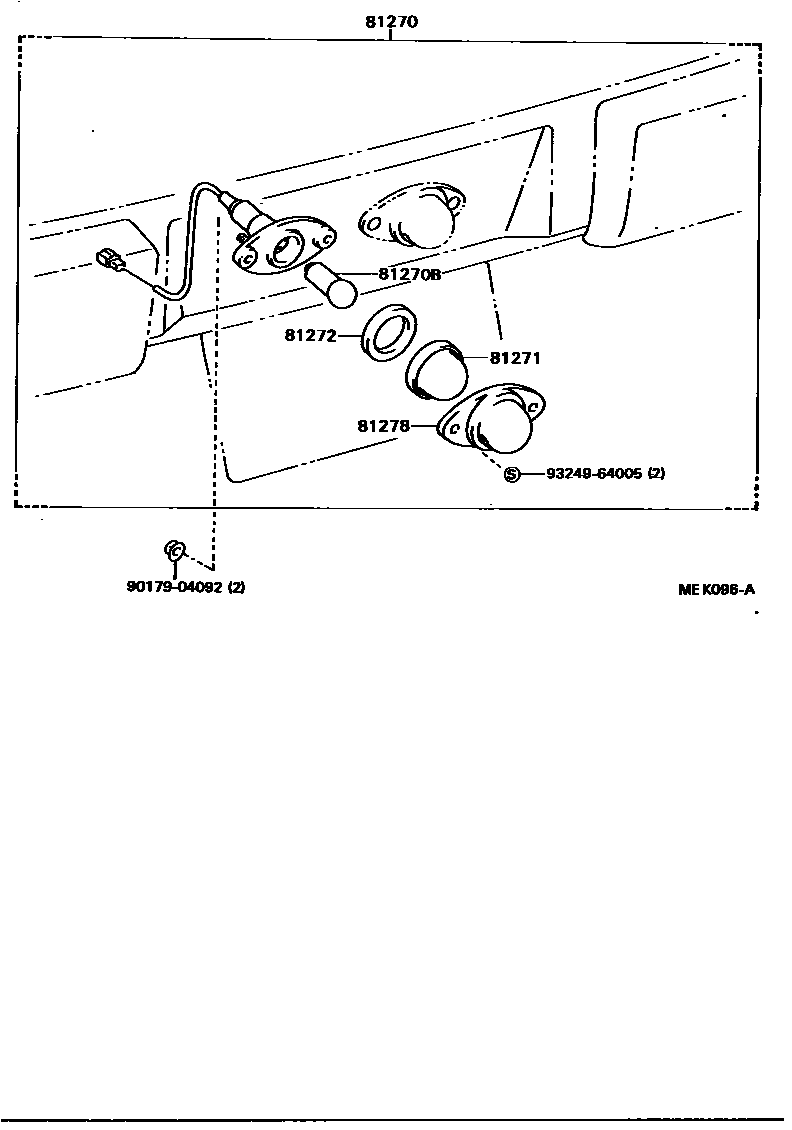

7 parts on this diagram · 1 diagram in section
