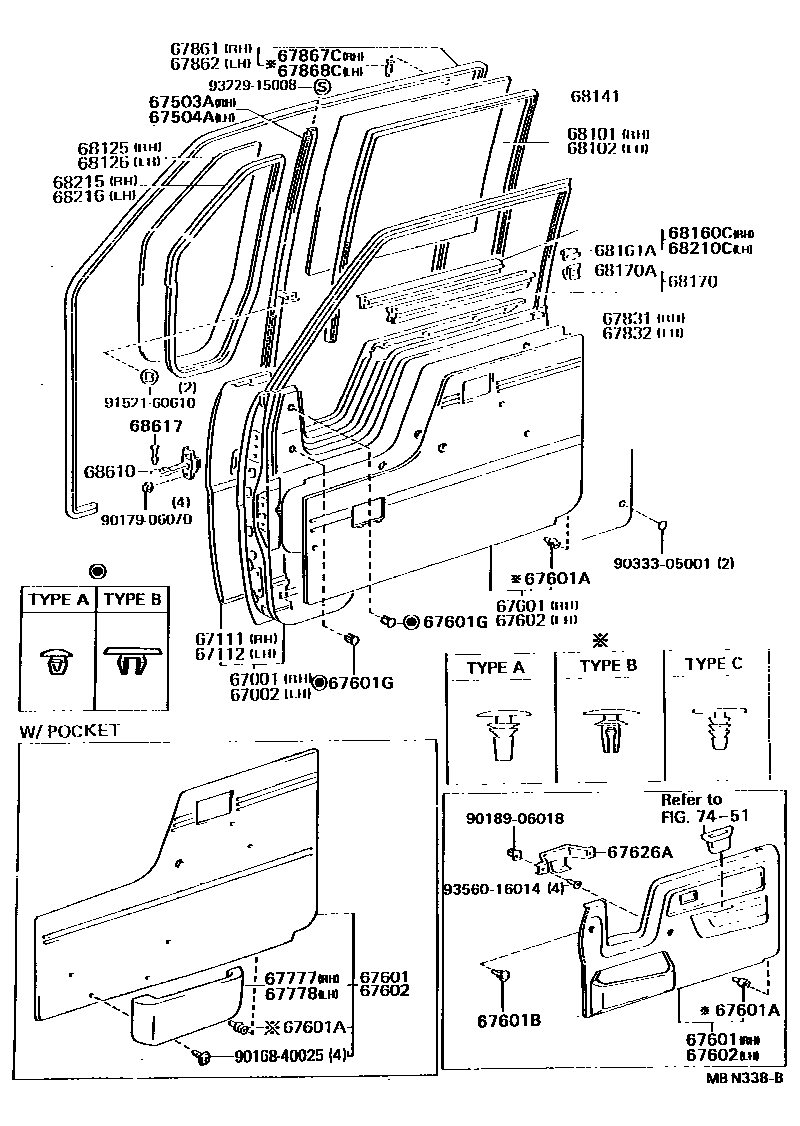

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95429iBU6#,70,8#..CBU,IV3198708-198801

main67001-95432iBU6#,70,8#..CBU,IV3198801-198808

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95433iBU6#,70,8#..CBU,IV3198708-198801

main67002-95438iBU6#,70,8#..CBU,IV3198801-198808

67111PANEL, FRONT DOOR, OUTER RH

main67111-95406iBU6#,70,8#..CBU,IV3198708-198801

main67111-95407iBU61,80..RHD..WT..GEN..IV3; BU80..LHD..IV3198708-198801

IRELAND SPEC; SWITZERLAND SPEC

67112PANEL, FRONT DOOR, OUTER LH

main67112-95405iBU6#,70,8#..CBU,IV3198708-198801

main67112-95406iBU61,80..RHD..WT..GEN..IV3; BU80..LHD..IV3198708-198801

IRELAND SPEC; SWITZERLAND SPEC

67503ABAR SUB-ASSY, FRONT DOOR DIVISION, RH

main67503-95400iBU6#,70,8#..CBU,IV3198708-198808

67504ABAR SUB-ASSY, FRONT DOOR DIVISION, LH

main67504-95400iBU6#,70,8#..CBU,IV3198708-198808

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95019-06iBU6#,70,8#..(GEN,GHD,SA)..(CBU,IV3)198708-198808

BROWN,TRIM4#

main67610-95022-06iBU60,61,65,80,81,82,86..RHD..(GEN,GHD,SA)..(CBU,IV3); BU85..RHD..GEN..(CBU,IV3)198708-198808

W(DOOR POCKET),BROWN,TRIM4#

main67610-95412-06iBU85..LHD198708-198808

W(ASH TRAY),BROWN,TRIM4#

main67610-95413-06iBU6#,85..ARL; BU80..LHD..IV3198708-198808

BROWN,TRIM4#; SWITZERLAND SPEC,BROWN,TRIM4#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020×26iBU6#,70,8#..(GEN,GHD,SA)..(CBU,IV3)198708-198808

main67771-30060×22iBU6#,85..ARL; BU80..LHD..IV3198708-198808

SWITZERLAND SPEC

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07041-01iBU85..GEN..(CBU,IV3)198708-198808

BLACK,TRIM4#

main90467-07043-16×2iBU6#,85..ARL; BU80..LHD..IV3198708-198808

BROWN,TRIM4#; SWITZERLAND SPEC,BROWN,TRIM4#

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01324-06×2iBU6#,70,8#..(GEN,GHD,SA)..(CBU,IV3)198708-198808

BROWN,TRIM4#,TYPE A

main90950-01607-06×2iBU6#,70,8#..(GEN,GHD,SA)..(CBU,IV3)198708-198808

BROWN,TRIM4#,TYPE B

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95022-06iBU6#,70,8#..(GEN,GHD,SA)..(CBU,IV3)198708-198808

BROWN,TRIM4#

main67620-95026-06iBU60,61,62,70,80,81..LHD; BU85..LHD198708-198808

W(DOOR POCKET),BROWN,TRIM4#

main67620-95419-06iBU85..RHD..GEN..(CBU,IV3)198708-198808

W(ASH TRAY),BROWN,TRIM4#

main67620-95420-06iBU6#,85..ARL; BU80..LHD..IV3198708-198808

BROWN,TRIM4#; SWITZERLAND SPEC,BROWN,TRIM4#

67626ABRACKET, DOOR TRIM, NO.2

main67626-95400×2iBU6#,85..ARL; BU80..LHD..IV3198708-198808

67777POCKET, FRONT DOOR TRIM, RH

main67777-22040-16iBU60,61,62,70,80,81,85..LHD198708-198808

BROWN,TRIM4#

main67778-22030-16iBU60,61,65,80,81,82,86..RHD..(GEN,GHD,SA)..(CBU,IV3); BU85..RHD..GEN..(CBU,IV3)198708-198808

BROWN,TRIM4#

67778POCKET, FRONT DOOR TRIM, LH

main67777-22040-16iBU85..LHD198708-198808

BROWN,TRIM4#

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95406iBU6#,70,8#..CBU,IV3198708-198808

main67831-95407iBU60..LHD..WT;BU60..TW1..GEN;BU81..LHD..CBU;BU70,80,85..LHD..(BUS,TR)198708-198808

SAUDI ARABIA & GULF SPEC

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95407iBU6#,70,8#..CBU,IV3198708-198808

main67832-95408iBU60..LHD..WT;BU60..TW1..GEN;BU81..LHD..CBU;BU70,80,85..LHD..(BUS,TR)198708-198808

SAUDI ARABIA & GULF SPEC

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95406iBU6#,70,8#..CBU,IV3198708-198808

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95406iBU6#,70,8#..CBU,IV3198708-198808

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-30040×28iBU6#,70,8#..CBU,IV3198708-198808

TYPE A

main67868-89101×28iBU6#,70,8#..CBU,IV3198708-198808

TYPE B

main67868-95401×28iBU6#,70,8#..CBU,IV3198708-198808

TYPE C

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-89103×28iBU6#,70,8#..CBU,IV3198708-198808

TYPE B

main67867-95401×28iBU6#,70,8#..CBU,IV3198708-198808

TYPE C

main67868-30040×28iBU6#,70,8#..CBU,IV3198708-198808

TYPE A

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95406×2iBU6#,70,8#..CBU,IV3198708-198808

*TEM,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95406×2iBU6#,70,8#..CBU,IV3198708-198808

*TEM,T=4.0

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-95400iBU6#,70,8#..CBU,IV3198708-198808

*TEM,T=3.5

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-95400iBU6#,70,8#..CBU,IV3198708-198808

*TEM,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-95407×2iBU6#,70,8#..CBU,IV3198708-198808

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-95402iBU6#,70,8#..CBU,IV3198708-198808

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-30080×8iBU6#,70,8#..CBU,IV3; BU60,85,86..TW1198708-198808

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95407iBU6#,85..ARL; BU80..LHD..IV3198708-198808

RH; SWITZERLAND SPEC,RH

main68171-95410iBU6#,70,8#..(GEN,GHD,SA)..(CBU,IV3)198801-198808

RH

main68172-95402iBU6#,70,8#..(GEN,GHD,SA)..(CBU,IV3)198708-198711

main68172-95404iBU6#,85..ARL; BU80..LHD..IV3198708-198808

LH; SWITZERLAND SPEC,LH

main68172-95407iBU6#,70,8#..(GEN,GHD,SA)..(CBU,IV3)198801-198808

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080×6iBU6#,70,8#..(GEN,GHD,SA)..(CBU,IV3); BU6#,85..ARL; BU80..LHD..IV3198708-198808

SWITZERLAND SPEC,WHITE; WHITE

main68211-95400×2iBU6#,85..ARL; BU80..LHD..IV3198708-198808

ORANGE; SWITZERLAND SPEC,ORANGE

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68160-95402iBU6#,70,8#..CBU,IV3198708-198808

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-95402iBU6#,70,8#..CBU,IV3198708-198808

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-95402iBU6#,70,8#..CBU,IV3198708-198808

68610CHECK ASSY, FRONT DOOR

main68610-95400×2iBU6#,70,8#..CBU,IV3198708-198808

68617PIN, FRONT DOOR CHECK

main68617-90A01×2iBU6#,70,8#..CBU,IV3198708-198808

7451ARMREST & VISOR

→ Go to FIG 74-51

9016840025

main90168-40025

9017906070

main90179-06070

9018906018

main90189-06018

9033305001

main90333-05001

9152160610

main91521-60610

9322915008

main93229-15008

9356016014

main93560-16014

42 parts on this diagram · 1 diagram in section
