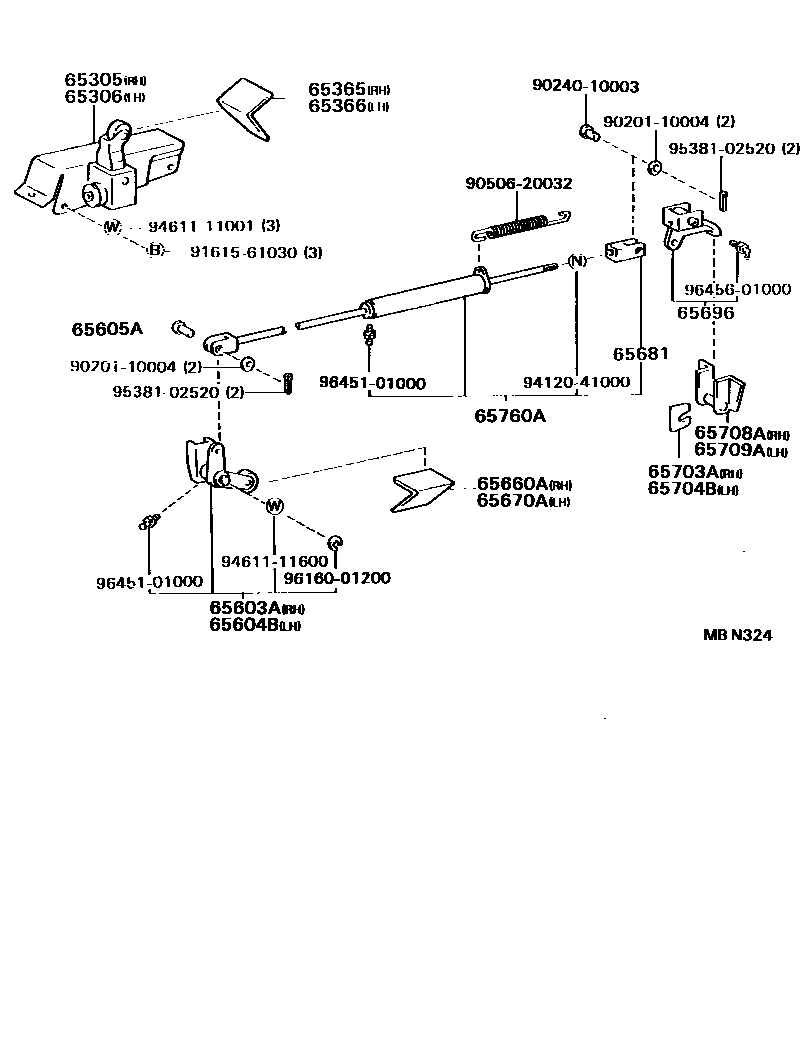

REAR BODY SIDE GATE LOCK & TAIL GATE LOCK
65305LOCK SUB-ASSY, BEZEL, RH
65306LOCK SUB-ASSY, BEZEL, LH
65365GUIDE, VESSEL LOCK, RH
65366GUIDE, VESSEL LOCK,
65603AARM ASSY, TAIL GATE LOCK ROLLER, RH
65604BARM ASSY, TAIL GATE LOCK ROLLER, LH
65605APIN, TAIL GATE LOCK LINK
65660AGUIDE, ROLLER
65670AGUIDE, ROLLER
65681END, TAIL GATE LOCK LINK
65696LATCH, TAIL GATE LOCK
RH
LH
65703AGUIDE SUB-ASSY, TAIL GATE LOCK HINGE, RH
65704BGUIDE SUB-ASSY, TAIL GATE LOCK HINGE, LH
65708ABAR SUB-ASSY, TAIL GATE LOCK, RH
65709ABAR SUB-ASSY, TAIL GATE LOCK, LH
65760ACONTROL SUB-ASSY, TAIL GATE
9020110004
main90201-10004
9024010003
main90240-10003
9050620032
main90506-20032
9161561030
main91615-61030
9412041000
main94120-41000
9461111001
main94611-11001
9461111600
main94611-11600
9538102520
main95381-02520
9616001200
main96160-01200
9645101000
main96451-01000
9645601000
main96456-01000
27 parts on this diagram · 1 diagram in section
