REAR BODY FLOOR & FENDER

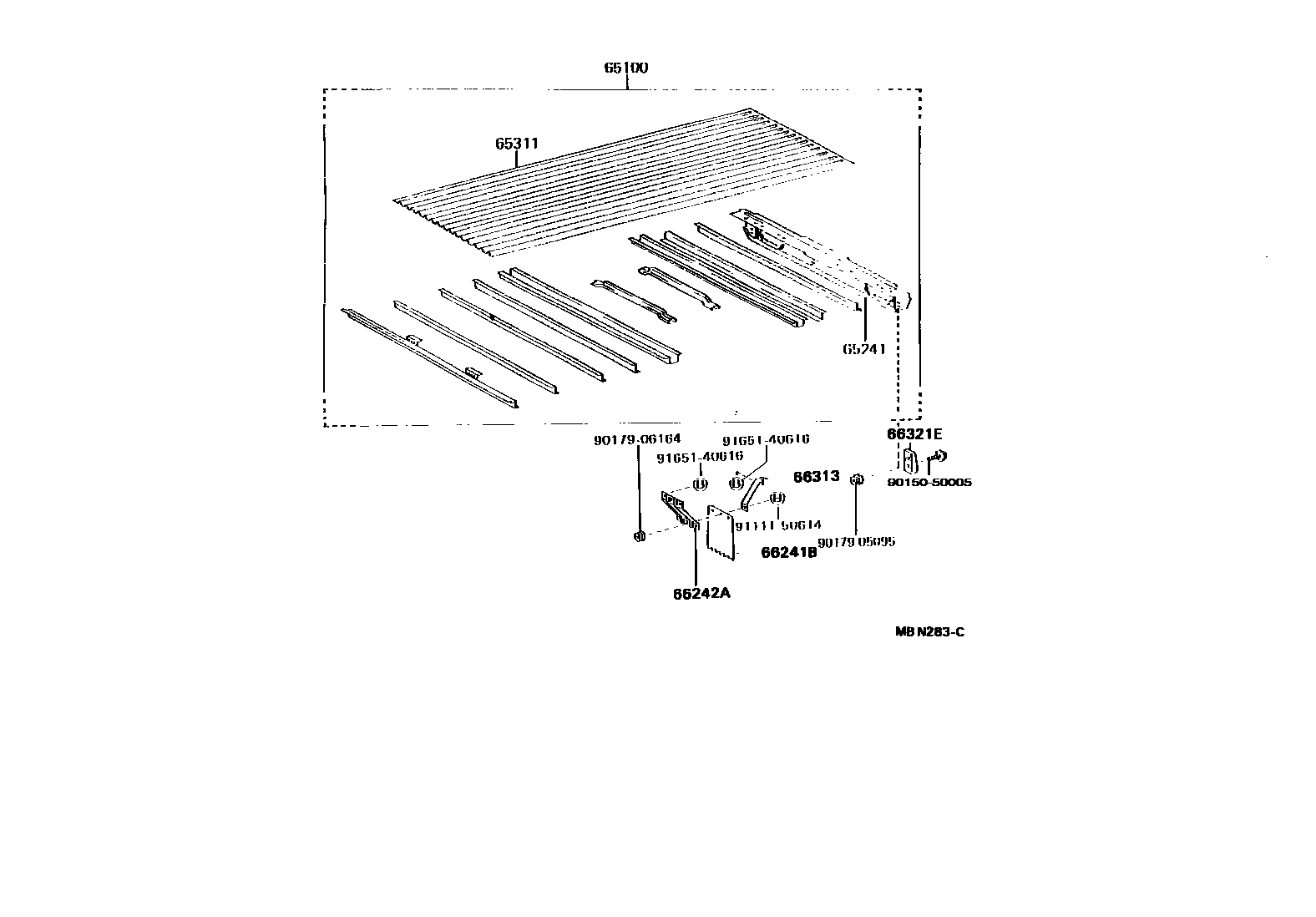

Parts diagram
65100FLOOR ASSY, REAR BODY
main65100-95431i198708-198808
sub65100-37100
main65100-95432i198708-198808
W(REAR SCHNORKEL TNF PRE-CLEANER)
sub65100-37110
main65100-95433i198708-198808
sub65100-37070
main65100-95434i198708-198808
W(REAR SCHNORKEL TNF PRE-CLEANER)
sub65100-37080
main65100-95437i198708-198808
sub65100-37280
main65100-95438i198708-198808
65241SILL, REAR CROSS
main65240-92833i198708-198808
main65240-92837i198708-198808
main65240-95418i198708-198808
sub65240-37060
main65240-95419i198708-198808
sub65240-37040
main65240-95420i198708-198808
sub65240-37020
65311PANEL, FLOOR, CENTER
main65311-95027i198708-198808
sub65311-25010
main65311-95409i198708-198808
sub65311-37030
main65311-95411i198708-198808
66241BBAFFLE, RUBBER
main66241-92802i198708-198808
LH
main66241-92809i198708-198808
RH
main66241-95401i198708-198808
LH
main66241-95405i198708-198808
RH
main66241-95408i198708-198808
RH
main66241-95600i198708-198808
LH
66242APLATE, BAFFLE RUBBER
main66225-95403i198708-198808
RR-RH
main66226-95402i198708-198808
RR-LH
main66231-95011i198708-198808
FR-RH
main66232-95011i198708-198808
FR-LH
main66242-92707i198708-198808
LH
main66242-92805i198708-198808
RH
main66243-95400i198804-198808
main66332-93103i198708-198808
66313SUPPORT, REAR FENDER
main66235-92701i198708-198808
REAR
main66235-95404i198708-198808
main66235-95405i198708-198808
main66236-92702i198708-198808
FRONT
sub66236-92704
66321EBUMPER, GATE RUBBER
main66321-92803i198708-198808
SIDE GATE
main66321-92805i198708-198808
TAIL GATE
main66321-95012i198708-198808
SIDE GATE
main66321-95406i198708-198808
sub66321-37010
main66321-95407i198708-198808
TAIL GATE
9015050005
main90150-50005
9017905095
main90179-05095
9017906164
main90179-06164
9111150614
main91111-50614
9165140616
main91651-40616

12 parts on this diagram · 5 diagrams in section
