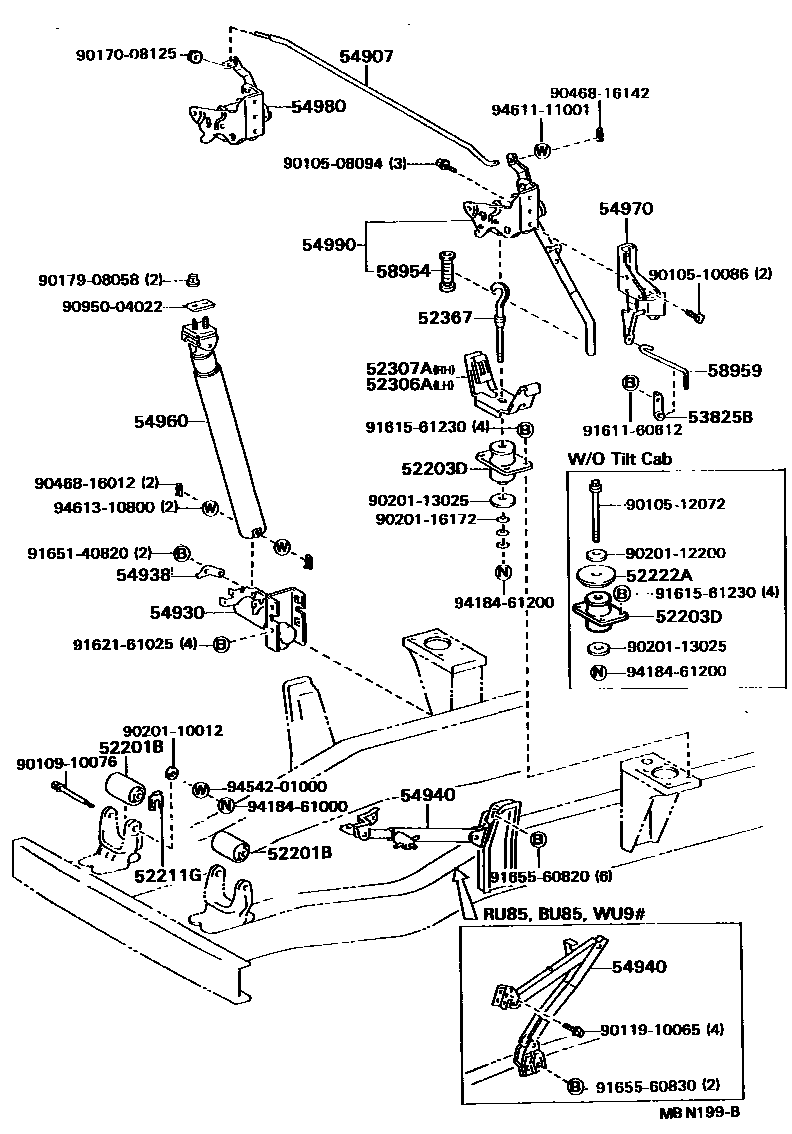

CAB MOUNTING & BODY MOUNTING
52201BCUSHION SUB-ASSY, CAB FRONT MOUNTING
52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
NO.5
NO. 2
NO. 1
NO.3,4
52211GSPACER, CAB FRONT MOUNTING
52222ASPACER, CAB REAR MOUNTING, UPPER
main52222-36030×2iBU61..GEN;BU85..TW1;BU85..IV1;BU65..GEN..CBU;BU60,62,70,80,81,82..5F..(ARL,GEN,GHD)198708-198710
52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1
main52306-36020iBU65..GEN..CBU;BU60,61,62,80,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU86;BU65..IV3;BU85..T3..(CBU,IV3);BU61,62,65,81..ARL,SA198708-198808
52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2
main52307-36020iBU65..GEN..CBU;BU60,61,62,80,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU86;BU65..IV3;BU85..T3..(CBU,IV3);BU61,62,65,81..ARL,SA198708-198808
52367HOOK, CAB REAR MOUNTING
main52367-36030×2iBU65..GEN..CBU;BU60,61,62,80,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU86;BU65..IV3;BU85..T3..(CBU,IV3);BU61,62,65,81..ARL,SA198708-198808
53825BBRACKET, REAR LOCK HANDLE ROD
SWITZERLAND SPEC
54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING
main54907-95400iBU65..IV3;BU61,62,65,81..ARL,SA; BU80..LHD..CBU;BU65,80..RHD..(GEN,GHD);BU60,61,62,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU80..LHD..IV3198708-198808
SWITZERLAND SPEC OR W(TILT CAB)
54930BRACKET ASSY, TILT CAB COIL SPRING, LOWER
main54930-95401iBU65..IV3;BU61,62,65,81..ARL,SA; BU80..LHD..CBU;BU65,80..RHD..(GEN,GHD);BU60,61,62,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU80..LHD..IV3198708-198808
SWITZERLAND SPEC OR W(TILT CAB)
54938PLATE, TILT CAB COIL SPRING SUPPORT
main54938-95400×2iBU65..IV3;BU85..T3..(CBU,IV3);BU61,62,65,81..ARL,SA; BU80..LHD..CBU;BU65,80..RHD..(GEN,GHD);BU60,61,62,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU80..LHD..IV3198708-198808
SWITZERLAND SPEC OR W(TILT CAB)
54940STAY ASSY, TILT CAB
main54940-95400iBU65..IV3;BU61,62,65,81..ARL,SA; BU80..LHD..CBU;BU65,80..RHD..(GEN,GHD);BU60,61,62,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU80..LHD..IV3198708-198808
SWITZERLAND SPEC OR W(TILT CAB)
54960SPRING ASSY, TILT CAB COIL
main54960-95400iBU65..IV3;BU61,62,65,81..ARL,SA; BU80..LHD..CBU;BU65,80..RHD..(GEN,GHD);BU60,61,62,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU80..LHD..IV3198708-198808
SWITZERLAND SPEC OR W(TILT CAB)
54970LATCH ASSY, TILT CAB STOPPER
main54970-95400iBU65..GEN..CBU;BU60,61,62,80,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU65..IV3;BU61,62,65,81..ARL,SA198708-198808
W(TILT CAB)
SWITZERLAND SPEC
54980LOCK ASSY, TILT CAB MOUNTING, RH
main54980-95400iBU80..LHD..CBU;BU65,80..RHD..(GEN,GHD);BU60,61,62,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU80..LHD..IV3; BU81..SA;BU65..IV3;BU85..T3..(CBU,IV3)198708-198808
54990LOCK ASSY, TILT CAB MOUNTING, LH
main54990-95403iBU65..GEN..CBU;BU60,61,62,80,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU65..IV3;BU61,62,65,81..ARL,SA198708-198808
W(TILT CAB)
SWITZERLAND SPEC
58954COVER, REAR LOCK HANDLE GRIP
main58954-95400iBU65..IV3;BU85..T3..(CBU,IV3);BU61,62,65,81..ARL,SA; BU80..LHD..CBU;BU65,80..RHD..(GEN,GHD);BU60,61,62,81..(T1,T3)..(GEN,GHD)..(CBU,IV3); BU80..LHD..IV3198708-198808
SWITZERLAND SPEC OR W(TILT CAB)
58959ROD, REAR LOCK, HANDLE LATCH
SWITZERLAND SPEC
9010508094
main90105-08094
9010510086
main90105-10086
9010512072
main90105-12072
9010910076
main90109-10076
9011910065
main90119-10065
9017008125
main90170-08125
9017908058
main90179-08058
9020110012
main90201-10012
9020112200
main90201-12200
9020113025
main90201-13025
9020116172
main90201-16172
9046816012
main90468-16012
9046816142
main90468-16142
9095004022
main90950-04022
9161160612
main91611-60612
9161561230
main91615-61230
9162161025
main91621-61025
9165140820
main91651-40820
9165560820
main91655-60820
9165560830
main91655-60830
9418461000
main94184-61000
9418461200
main94184-61200
9454201000
main94542-01000
9461111001
main94611-11001
9461310800
main94613-10800
43 parts on this diagram · 2 diagrams in section
