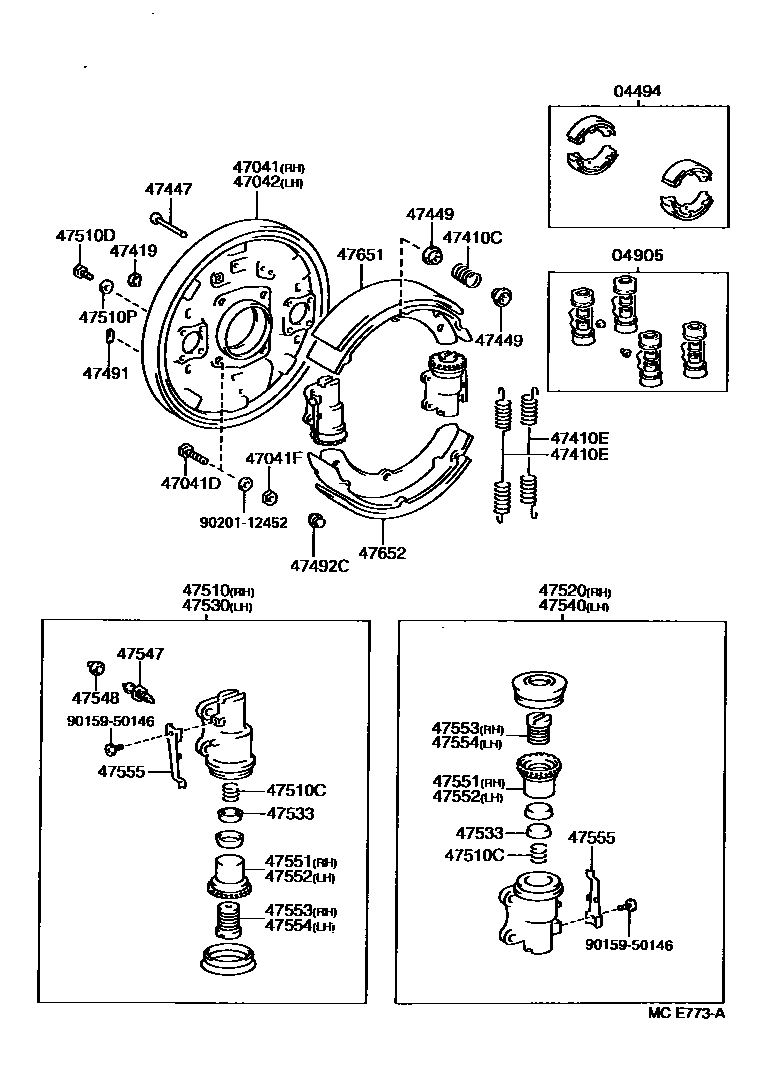

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1W/O(AUTO ADJUSTER) 0002 1W(AUTO ADJUSTER)

04494SHOE KIT, FRONT BRAKE

main04494-36080iBU60,61,62,70..ST198708-198808

sub04494-36160

main04494-36090iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

sub04494-36150

main04494-36100iBU6#,8#,93..WT198710-198802

sub04494-36140

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36070iBU60,61,62,70..ST198708-198808

main04905-36080iBU60,65..RHD..WT..CBU198708-198808

main04905-36100iBU62..ARL198708-198808

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36110iBU60,61,62,70..ST198708-198808

sub47041-36111

main47041-36121iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

sub47041-36170

main47041-36130iBU6#,8#..WT198708-198710

sub47041-36131

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12113×8iBU6#,70,8#,93198710-198808

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-71200×8iBU6#,70,8#198708-198710

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36110iBU60,61,62,70..ST198708-198808

sub47042-36111

main47042-36121iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

sub47042-36170

main47042-36130iBU6#,8#..WT198708-198710

sub47042-36131

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012×4iBU6#,70,8#,93198710-198808

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29006×4iBU60,61,62,70..ST198708-198808

main90507-29004×2iBU80..LHD..IV3198708-198808

SWITZER LAND SPEC,RH

main90507-29005×2iBU80..LHD..IV3198708-198808

SWITZER LAND SPEC,LH

main90507-29006×4iBU6#,8#,93..WT198710-198808

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011×2iBU85,93..IV1198802-198808

INDIA SPEC

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20010×4iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

main47447-35020×4iBU60,61,62,70..ST198708-198808

main47447-36030×4iBU6#,8#..WT198708-198710

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8iBU6#,70,8#198708-198710

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010×8iBU62..ARL198708-198808

sub47491-36020

47492CPLUG, HOLE(FOR FRONT BRAKE)

main47492-28010×4iBU6#,70,8#..5F198708-198710

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36090iBU60,61,62,70..ST198708-198808

SWITZERLAND SPEC

main47510-36100iBU6#,8#,93..5F..WT198710-198808

main47510-36120iBU62..ARL198708-198808

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122×4iBU6#,70,8#..5F198708-198710

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-08081×16iBU60,61,62,70..ST198708-198808

SWITZERLAND SPEC

main90101-10127×16iBU6#,8#,93..WT198710-198808

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-08002×16iBU60,61,62,70..ST198708-198808

SWITZERLAND SPEC

main90201-10287×16iBU6#,8#..WT198708-198710

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36090iBU60,61,62,70..ST198708-198808

SWITZERLAND SPEC

main47520-36100iBU6#,8#..5F..WT198708-198710

main47520-36120iBU62..ARL198708-198808

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36090iBU60,61,62,70..ST198708-198808

SWITZERLAND SPEC

main47530-36100iBU6#,8#..5F..WT198708-198710

main47530-36120iBU62..ARL198708-198808

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-30011×4iBU6#,70,8#..5F198708-198710

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36090iBU60,61,62,70..ST198708-198808

SWITZERLAND SPEC

main47540-36100iBU6#,8#..5F..WT198708-198710

main47540-36120iBU62..ARL198708-198808

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×2iBU6#,70,8#198708-198710

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iBU6#,70,8#198708-198710

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47506-36010×2iBU62..ARL198708-198808

main47551-36120×2iBU60,61,62,70..ST198708-198808

SWITZERLAND SPEC

main47551-36130×2iBU6#,8#..5F..WT198708-198710

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47507-36010×2iBU62..ARL198708-198808

main47552-36120×2iBU60,61,62,70..ST198708-198808

SWITZERLAND SPEC

main47552-36130×2iBU6#,8#,93..5F..WT198710-198808

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36050×2iBU60,61,62,70..ST198708-198808

SWITZERLAND SPEC

main47553-36060×2iBU6#,8#,93..5F..WT198710-198808

main47553-36070×2iBU62..ARL198708-198808

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36050×2iBU60,61,62,70..ST198708-198808

SWITZERLAND SPEC

main47554-36060×2iBU6#,8#,93..5F..WT198710-198808

main47554-36070×2iBU62..ARL198708-198808

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-36040×4iBU6#,70,8#..5F198708-198710

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-36100×2iBU60,61,62,70..ST198708-198808

main47651-36120×2iBU61..ARL;BU61..LHD;BU60,62,65,8#..5F..WT198708-198710

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-36120×2iBU61..ARL;BU61..LHD;BU60,62,65,8#..5F..WT198708-198710

9015950146

main90159-50146

9020112452

main90201-12452

32 parts on this diagram · 2 diagrams in section
