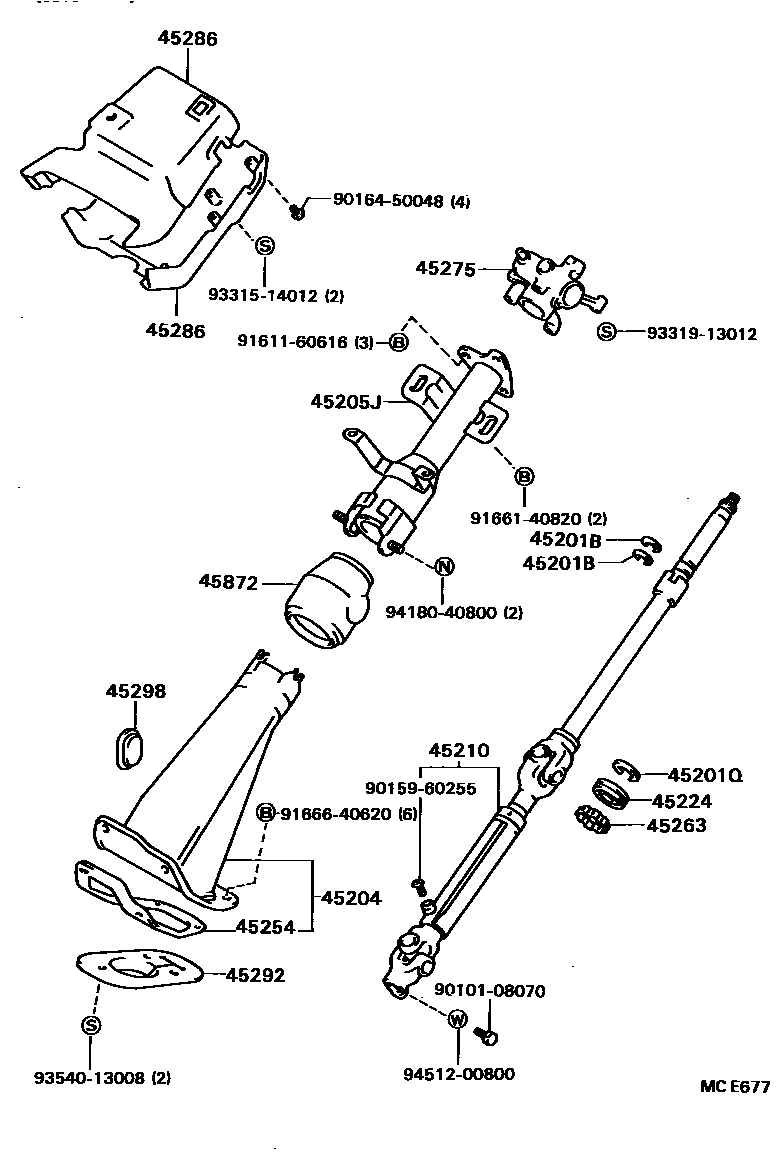

STEERING COLUMN & SHAFT

0001 1 0002 1TILT STEERING

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iBU6#,70,8#198708-198710

T=1.20

main90520-17269iBU6#,70,8#198708-198710

T=1.20

45201QRING(FOR STEERING COLUMN RING)

main96152-00300iBU6#,70,8#,93198710-198808

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-36060iBU85,86..RHD..GEN..(CBU,IV3); BU85..ARL198708-198808

W(TILT & TELESCOPIC)

main45204-36070iBU85..LHD198708-198808

W(TILT & TELESCOPIC)

main45204-36090iBU6#..ARL; BU60,61,80,81,82..RHD..WT..(GEN,GHD); BU61..ST;BU65..GEN..CBU198708-198808

W(TILT & TELESCOPIC)

main45204-36110iBU60,61,62,80,81..LHD..WT; BU60,62,70..ST..GEN198708-198808

W(TILT & TELESCOPIC)

main45204-36140iBU60,61,65,80,81,82..RHD..(GEN,GHD,SA)198708-198808

main45204-36150iBU6#,70,80,81..LHD198708-198808

main45204-36170iBU85..LHD198708-198808

main45204-36180iBU85,86..RHD..GEN198708-198710

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-36180iBU6#,85..ARL; BU85..LHD;BU65..GEN..CBU;BU60,61,62,70..ST..GEN; BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD)198708-198808

W(TILT & TELESCOPIC)

main45205-36190iBU6#,70,8#..GEN,GHD,SA198708-198710

45210SHAFT ASSY, STEERING MAIN

main45210-36050iBU85,86..CBU,IV3198710-198808

main45210-36060iBU6#,70,80,81,82198708-198808

main45210-36080iBU85,93..IV1; BU85..RHD..GEN..IV3198710-198808

INDIA SPEC

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iBU6#,70,8#198708-198710

L=16

45254SHIELD, STEERING COLUMN HOLE

main45254-36070iBU85,86,93..RHD198710-198808

main45254-36080iBU85..LHD198708-198808

main45254-36090iBU6#,80,81,82..RHD198708-198808

main45254-36100iBU6#,70,80,81..LHD198708-198808

45263RING, STEERING COLUMN, NO.1

main45263-32010iBU6#,70,8#198708-198710

45275BRACKET, STEERING COLUMN, UPPER

main45307-36150iBU6#,70,8#198708-198710

45286COVER, STEERING COLUMN

main45286-36770-06iBU60,61,65,8#,93..RHD..(GEN,GHD,SA)198708-198808

BROWN,TRIM4#,UPR

main45286-36780-06iBU6#,70,80,81,85..LHD198708-198808

BROWN,TRIM4#,UPR

main45286-36790-06iBU6#,85..ARL; BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD)198708-198808

BROWN,TRIM4#,UPR; W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR

main45286-36800-06iBU60,61,62,70,80,81,85..LHD198708-198808

W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR

main45287-36330-06iBU6#,8#,93..RHD198708-198808

BROWN,TRIM4#,LWR

main45287-36340-06iBU6#,70,80,81,85..LHD198708-198808

BROWN,TRIM4#,LWR

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36030iBU6#,8#,93..RHD198710-198808

main45292-36040iBU6#,70,80,81,85..LHD198708-198808

45298PLUG, STEERING COLUMN COVER

main45298-36020iBU6#,70,8#198708-198710

45872COVER, STEERING COLUMN TUBE

main45872-36020iBU6#,85..ARL; BU85..LHD;BU65..GEN..CBU;BU60,61,62,70..ST..GEN; BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD)198708-198808

W(TILT & TELESCOPIC)

main45872-36030iBU6#,70,8#,93..GEN,GHD,SA198710-198808

9010108070

main90101-08070

9015960255

main90159-60255

9016450048

main90164-50048

9161160616

main91611-60616

9166140820

main91661-40820

9166640620

main91666-40620

9331514012

main93315-14012

9331913012

main93319-13012

9354013008

main93540-13008

9418040800

main94180-40800

9451200800

main94512-00800

24 parts on this diagram · 2 diagrams in section
