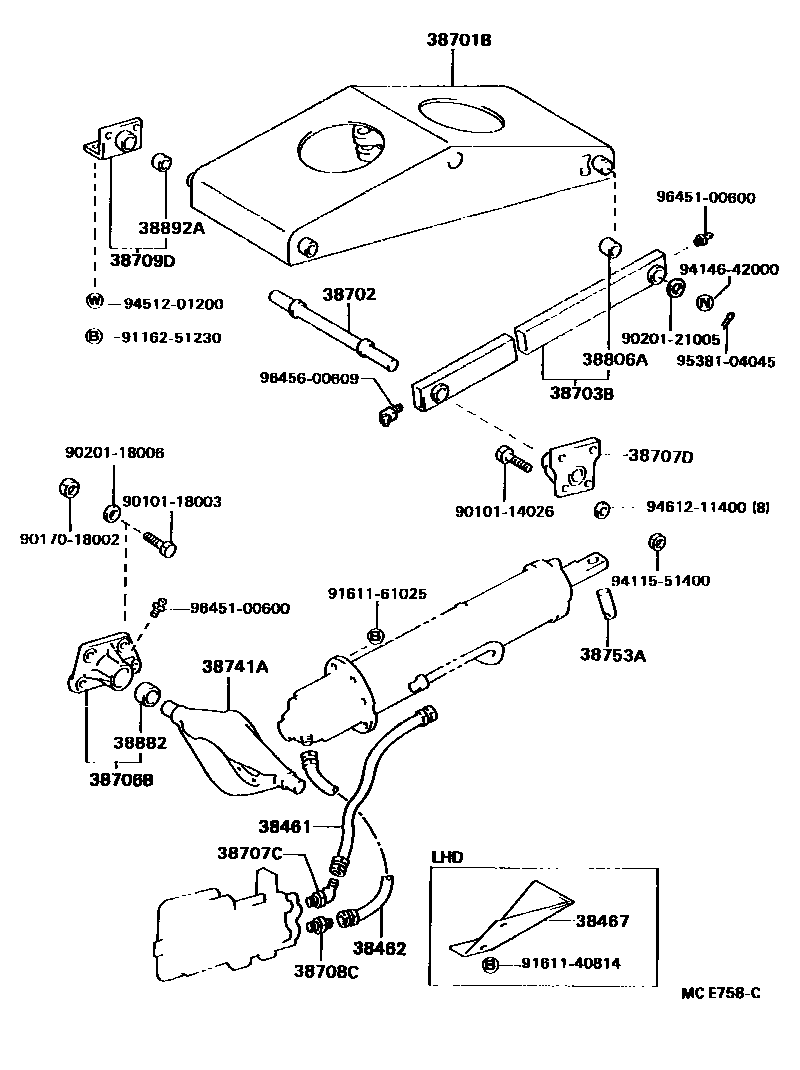

HOIST CYLINDER TRUNNION & LIFT ARM
38461HOSE, POWER OIL PUMP SUCTION
38462HOSE, POWER OIL PUMP DELIVERY
38467INSULATOR, POWER OIL HOSE
38701BARM SUB-ASSY, LIFT
38702SHAFT SUB-ASSY, TENSION ARM
38703BARM SUB-ASSY, TENSION
38706BBRACKET SUB-ASSY, TRUNNION
38707CUNION (FOR SUCTION HOSE)
38707DBRACKET SUB-ASSY, TENSION ARM SHAFT
38708CUNION (FOR DELIVERY HOSE)
38709DBRACKET SUB-ASSY, LIFT ARM
38741ATRUNNION, HOIST CYLINDER
38753APIN, CROSSHEAD
38806ABUSH, TENSION ARM HEAD
38882BUSH, TRUNNION
38892ABUSH (FOR LINK ARM BODY BRACKET)
9010114026
main90101-14026
9010118003
main90101-18003
9017018002
main90170-18002
9020118006
main90201-18006
9020121005
main90201-21005
9116251230
main91162-51230
9161140814
main91611-40814
9161161025
main91611-61025
9411551400
main94115-51400
9414642000
main94146-42000
9451201200
main94512-01200
9461211400
main94612-11400
9538104045
main95381-04045
9645100600
main96451-00600
9645600609
main96456-00609
31 parts on this diagram · 1 diagram in section
