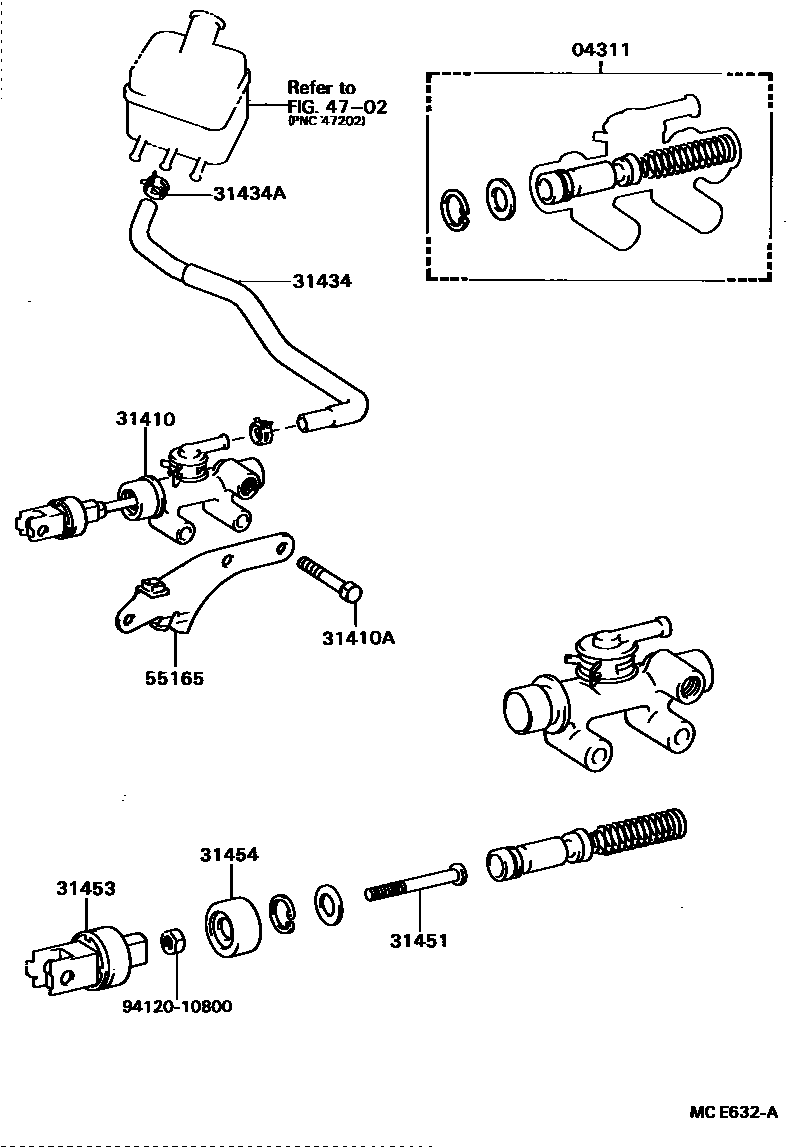

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-36080iBU6#,70,8#,93..5F198708-198808

sub04311-36081

main04311-36090iBU85,86..GEN..(CBU,IV3)198708-198710

W(CLUCH BOOSTER)

sub04311-36091

main04311-36100iBU85,86..GEN..(CBU,IV3)198710-198808

W(CLUCH BOOSTER)

31410CYLINDER ASSY, CLUTCH MASTER

main31401-36012iBU85,86..GEN..(CBU,IV3)198708-198710

W(CLUCH BOOSTER)

main31401-36013iBU85,86..GEN..(CBU,IV3)198710-198808

W(CLUCH BOOSTER)

main31420-36130iBU6#,70,8#,93..5F198710-198808

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865×2iBU6#,70,8#,93..5F198710-198808

31434TUBE, CLUTCH RESERVOIR

main31434-36140iBU85,86..RHD..GEN..(CBU,IV3)198708-198808

W(CLUCH BOOSTER)

main31434-36150iBU85..LHD198708-198808

W(CLUCH BOOSTER)

main31434-36190iBU60,61,65,80,81,82..RHD198708-198808

main31434-36200iBU6#,70,80,81..LHD198708-198808

main31434-36210iBU85,86,93..RHD198710-198808

main31434-36220iBU85..LHD198708-198808

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800×2iBU6#,70,8#..5F198708-198710

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040iBU6#,70,8#,93..5F198710-198808

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-360 0iBU6#,70,8#,93..5F198710

main31404-36020iBU6#,70,8#..5F198708-198710

sub31404-36021

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iBU6#,70,8#,93..5F198710-198808

4702

55165SUPPORT, CLUTCH MASTER CYLINDER

main55105-95410iBU85,86..GEN..(CBU,IV3)198708-198808

W(CLUCH BOOSTER)

main55105-95411iBU85..LHD..CBU;BU85,86..RHD..GEN..(CBU,IV3)198708-198808

W(EXHAUST BRAKE) & W(CLUCH BOOSTER)

main55165-95401iBU85..GEN..(CBU,IV3);BU6#,70,80,81,82,86..5F..(ARL,GEN,GHD)198708-198808

main55165-95402iBU80..LHD..IV3198708-198808

W(EXHAUST BRAKE)

9412010800

main94120-10800

11 parts on this diagram · 2 diagrams in section
