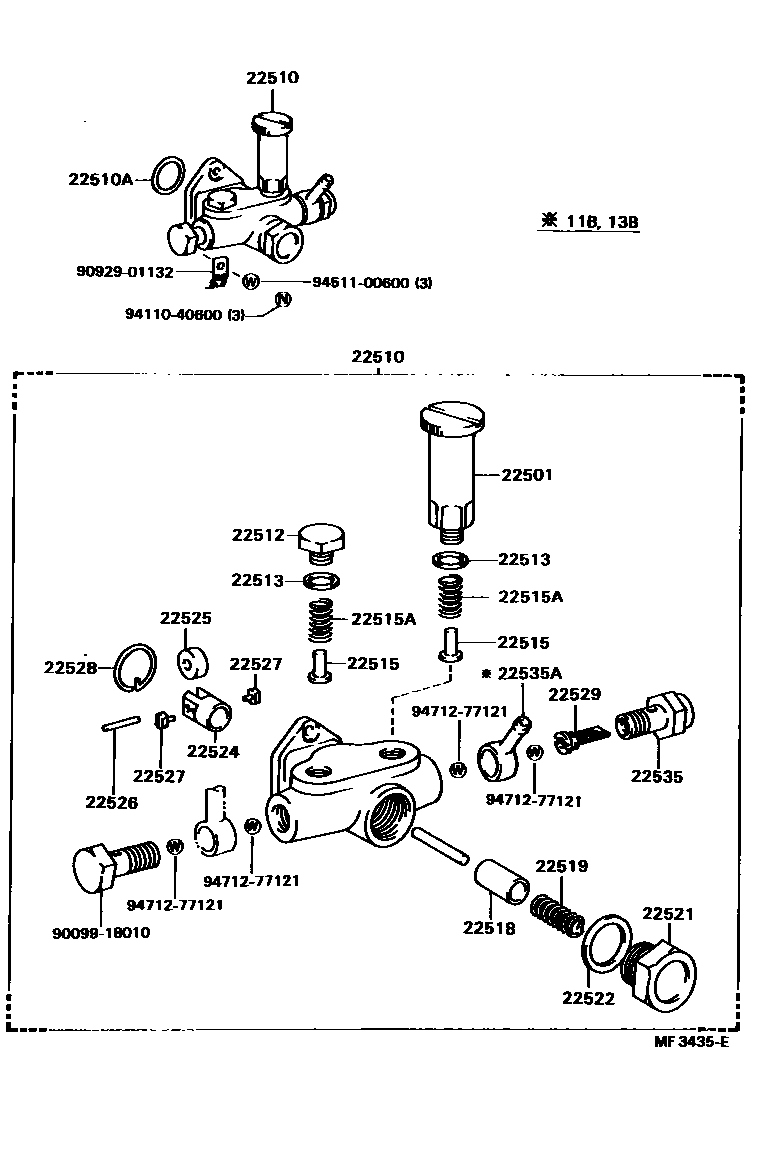

FUEL FEED PUMP

22501PUMP SUB-ASSY, PRIMING

main22501-77021iB,11B,13B..BU6#,70,8#,93198710-198808

22510PUMP ASSY, FUEL FEED

main22510-56040i13B..BU85..LHD..IV3; B..BU60,70,80198708-198808

TAIWAN SPEC

main22510-58230i11B,13B..BU61,62,65..ARL; 11B..BU65..GEN..CBU;11B..BU61,81,86..(GEN,GHD)..(CBU,IV3)198708-198808

W(TACHOMETER)

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14015iB,11B,13B..BU6#,70,8#..GEN,GHD,SA198708-198710

22512PLUG, FEED PUMP CHECK VALVE CHAMBER

main22512-77020iB,11B,13B..BU6#,70,8#,93198710-198808

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2iB,11B,13B..BU6#,70,8#,93198710-198808

22515VALVE, FEED PUMP CHECK

main22515-77021×2iB,11B,13B..BU6#,70,8#,93198710-198808

22515ASPRING, FEED PUMP CHECK VALVE

main90501-05141×2iB,11B,13B..BU6#,70,8#198708-198710

22518PISTON, FEED PUMP

main22518-56012iB,11B,13B..BU6#,70,8#,93198710-198808

GREEN

main22518-77020i11B,13B..BU61,62,65,81,82,85,86; B,11B,13B..BU6#,70,8#198708-198710

BLUE

22519SPRING, FEED PUMP PISTON

main22519-48010i11B,13B..BU61,62,65,81,82,85,86198708-198710

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77021i11B,13B..BU61,62,65,81,82,85,86,93198710-198808

22522GASKET, FEED PUMP PISTON PLUG

main90099-01432i11B,13B..BU61,62,65,81,82,85,86198708-198710

22524TAPPET, FEED PUMP

main22524-77021×2i11B,13B..BU61,62,65,81,82,85,86198708-198710

22525ROLLER, FEED PUMP TAPPET

main22525-77020×2i11B,13B..BU61,62,65,81,82,85,86198708-198710

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020iB..BU60,70,80..GEN,GHD198708-198808

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2iB,11B,13B..BU6#,70,8#198708-198710

22528RING, FEED PUMP TAPPET SNAP

main22528-77020×2i11B,13B..BU61,62,65,81,82,85,86198708-198710

22529FILTER, FUEL PUMP

main22529-67010×2i11B,13B..BU61,62,65,81,82,85,86198708-198710

22535SCREW, FUEL PIPE FOLLOW

main22535-46010×2i11B,13B..BU61,62,65,81,82,85,86198708-198710

22535ANIPPLE(FOR FUEL FEED PUMP)

main23323-56020i11B,13B..BU61,62,65,81,82,85,86198708-198710

9009918010

main90099-18010

9092901132

main90929-01132

9411040600

main94110-40600

9451100600

main94511-00600

9471277121

main94712-77121

24 parts on this diagram · 1 diagram in section
