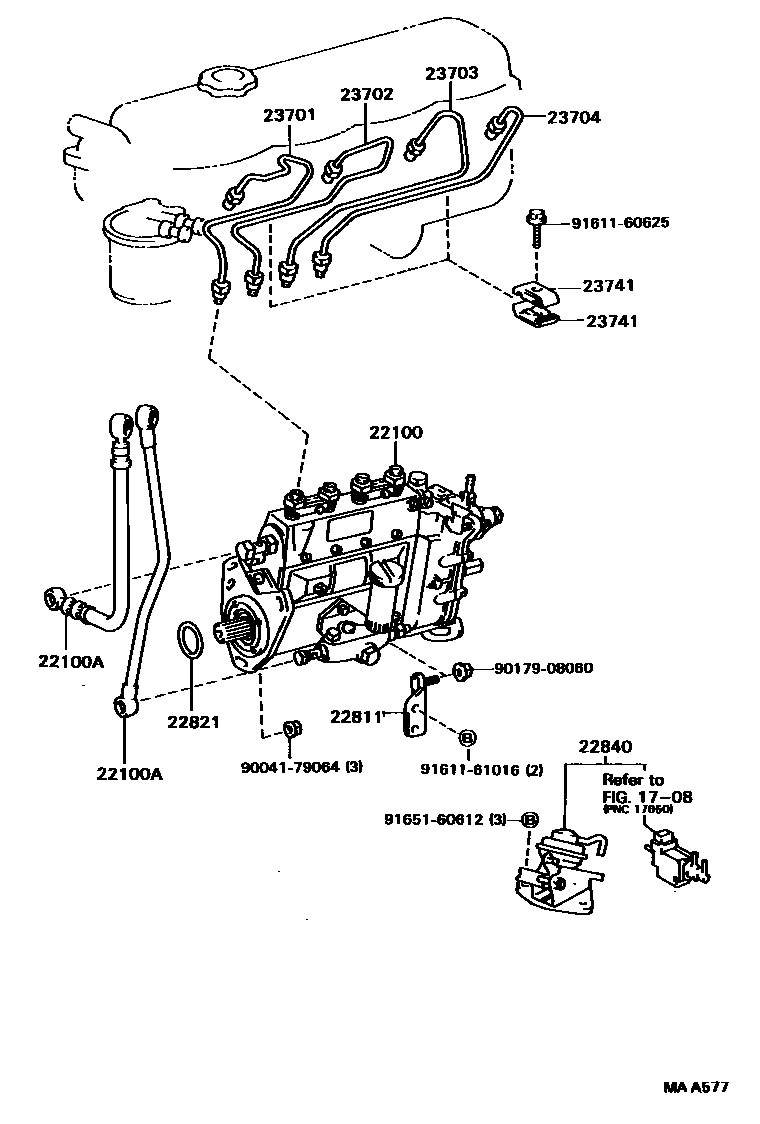

INJECTION PUMP ASSEMBLY

0001 1 0002 1

1708

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-56082iB..BU60,70,80..GEN,GHD198708-198808

main22100-56093iB..BU60,70,80..GEN,GHD198708-198808

W(HAC)

main22100-56211iB..BU60,70,80..GEN,GHD198708-198808

W(TACHOMETER)

main22100-56221iB..BU60,70,80..GEN,GHD198708-198808

W(HAC) & W(TACHOMETER)

main22100-56241i11B..BU61,65,81,86..GEN,GHD198708-198808

main22100-56252i11B..BU61,65..ARL198708-198808

W(TACHOMETER)

main22100-56260i11B..BU65..GEN..CBU;11B..BU61,81,86..(GEN,GHD)..(CBU,IV3)198708-198808

W(HAC)

main22100-56271i11B..BU65..GEN..CBU;11B..BU61,81,86..(GEN,GHD)..(CBU,IV3)198708-198808

W(HAC) & W(TACHOMETER)

main22100-58042i13B..BU85..LHD..IV3198708-198808

TAIWAN SPEC

main22100-58250i13B..BU85..GEN198708-198808

W(HAC)

main22100-58261i13B..BU62,82,85..GEN,GHD198708-198808

main22100-58281i13B..BU62,85..GEN..(CBU,IV3)198708-198808

W(HAC) & W(TACHOMETER)

main22100-58292i13B..BU85..ARL198708-198808

W(TACHOMETER)

main22100-58384i13B..BU62..ARL198708-198808

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56060iB,11B,13B..BU6#,70,8#198708-198808

PIPE L=300

main23802-56040iB,11B,13B..BU6#,70,8#198708-198808

HOSE L=210

22811STAY, INJECTION PUMP, NO.1

main22811-56011iB..BU60,70,80198708-198808

main22811-56040i11B,13B..BU61,62,65,81,82,85,86,93198708-198808

22821GASKET, INJECTION PUMP

main90301-77001iB..BU60,70,80198708-198808

22840DIAPHRAGM ASSY, FUEL CUT

main22840-56011iB..BU60,70,80198708-198808

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56030iB..BU60,70,80198708-198808

main23701-56060i11B,13B..BU61,62,65,81,82,85,86,93198708-198808

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56030iB..BU60,70,80198708-198808

main23702-56060i11B,13B..BU61,62,65,81,82,85,86198708-198808

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56020iB..BU60,70,80198708-198808

main23703-56060i11B,13B..BU61,62,65,81,82,85,86,93198708-198808

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56020iB..BU60,70,80198708-198808

main23704-56060i11B,13B..BU61,62,65,81,82,85,86198708-198808

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iB,11B,13B..BU6#,70,8#198708-198808

9004179064

main90041-79064

9017908060

main90179-08060

9161160625

main91611-60625

9161161016

main91611-61016

9165160612

main91651-60612

16 parts on this diagram · 2 diagrams in section
