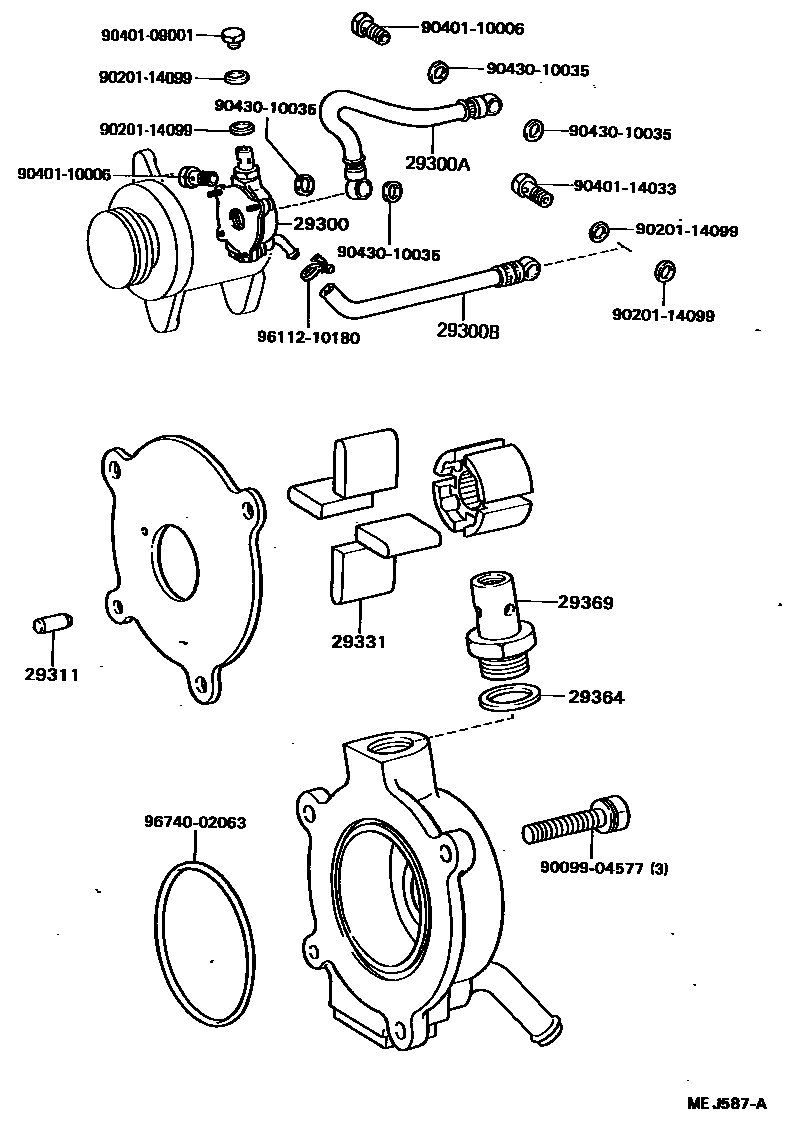

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-56090iB,11B,13B..BU6#,70,8#198708-198710

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02072iB,11B,13B..BU6#,70,8#198708-198710

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02068i11B..BU65..GEN..CBU;11B..BU61..GEN..(CBU,IV3);B,11B,13B..BU60,70,80,81,85,86..GEN,GHD198708-198710

ELEMENT TYPE

main90923-02073iB,11B,13B..BU6#,70,8#,93198710-198808

29311PIN, VACUUM PUMP DOWEL, NO.1

main90099-08082iB,11B,13B..BU6#,70,8#198708-198710

29331BLADE, VACUUM PUMP, A

main29331-78010×4iB,11B,13B..BU6#,70,8#198708-198710

29364WASHER, VACUUM PUMP

main29364-66010iB,11B,13B..BU6#,70,8#198708-198710

29369VALVE SUB-ASSY, CHECK

main29369-56070iB,11B,13B..BU6#,70,8#198708-198710

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114033

main90401-14033

9043010035

main90430-10035

9611210180

main96112-10180

9674002063

main96740-02063

15 parts on this diagram · 1 diagram in section
