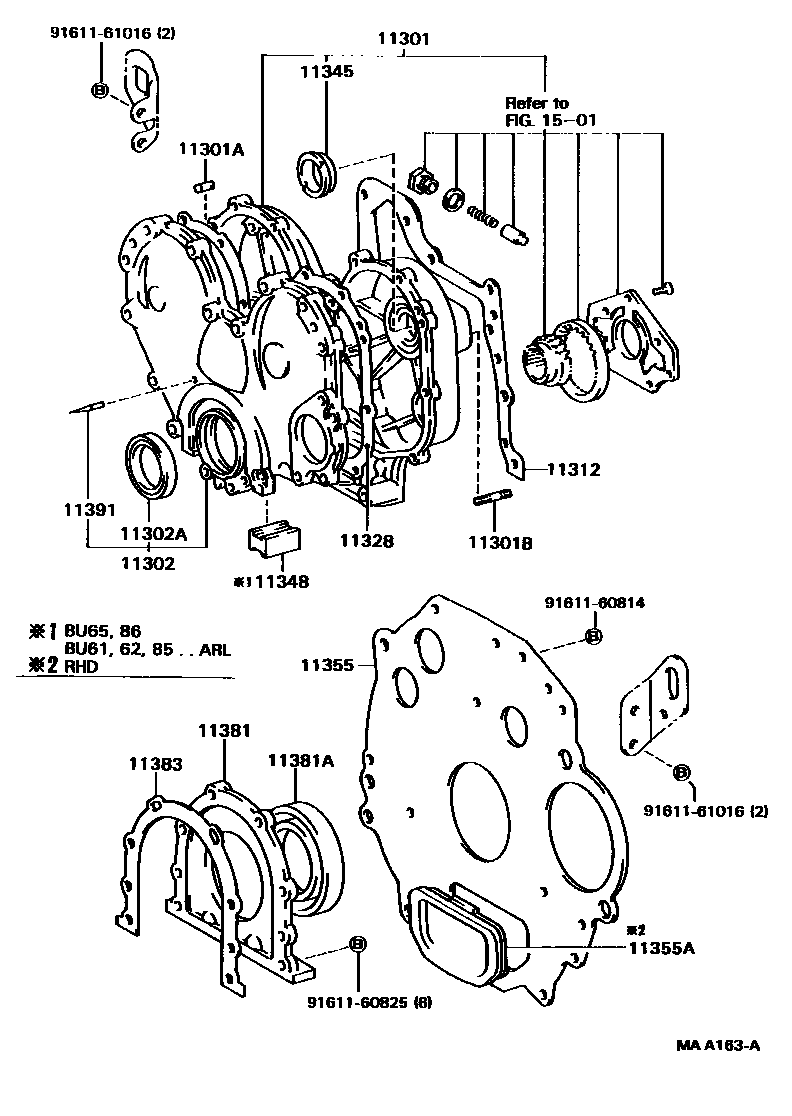

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-56060i11B,13B..BU61,62,65,81,82,85,86198708-198710

main11301-56070iB..BU60,70,80198708-198808

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120×2iB,11B,13B..BU6#,70,8#198708-198710

L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-10048×3iB,11B,13B..BU6#,70,8#198708-198710

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-56040iB,11B,13B..BU6#,70,8#,93198710-198808

main11302-56050i13B..BU85..LHD..IV3; B..BU60..T3;11B..BU65..ARL;13B..BU85..LHD..CBU;13B..BU85..RHD..(CBU,IV3);B,11B,13B..BU61,62,80,81,86..(ARL,GEN,GHD)..(CBU,IV3)198708-198808

TAIWAN SPEC OR W(POWER STEERING); W(POWER STEERING)

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-50007iB,11B,13B..BU6#,70,8#,93198708-198808

11312GASKET, FRONT END PLATE

main11312-56031iB,11B,13B..BU6#,70,8#,93198708-198808

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-56040iB,11B,13B..BU6#,70,8#198708-198710

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010iB..BU60,70,80198708-198808

main11345-56020i11B,13B..BU61,62,65,81,82,85,86198708-198710

11348SPACER, TIMING GEAR COVER

main11348-56010×2i11B..BU86;11B..BU65..IV3;11B,13B..BU61,62,65,85..ARL198708-198808

11355PLATE, REAR END

main11355-56053iB,11B,13B..BU6#,70,8#,93..5F198708-198808

main11355-58011i13B..BU62..ARL198708-198808

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263i13B..BU62..ARL198708-198808

11381RETAINER, ENGINE REAR OIL SEAL

main11381-56031iB,11B,13B..BU6#,70,8#198708-198710

11381ASEAL, ENGINE REAR OIL

main90311-95003iB,11B,13B..BU6#,70,8#198708-198710

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56031iB,11B,13B..BU6#,70,8#198708-198808

11391POINTER, TIMING

main11391-56020iB,11B,13B..BU6#,70,8#198708-198710

1501ENGINE OIL PUMP

→ Go to FIG 15-01

9161160814

main91611-60814

9161160825

main91611-60825

9161161016

main91611-61016

19 parts on this diagram · 2 diagrams in section
