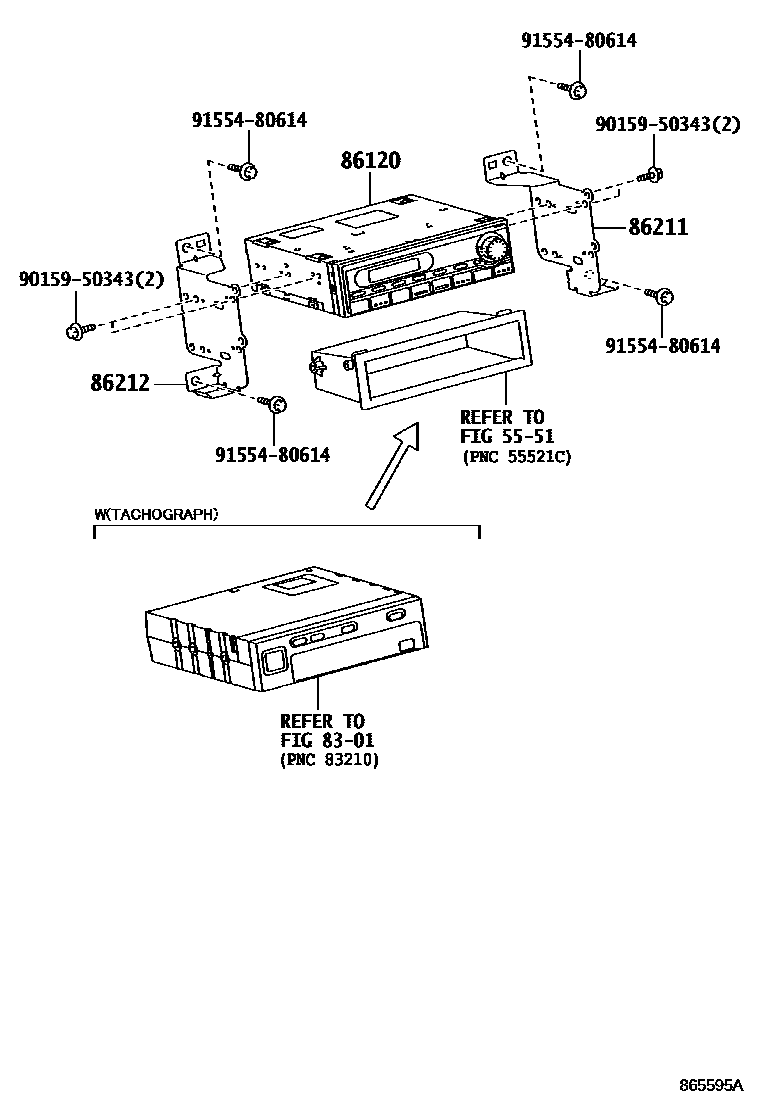

RADIO RECEIVER & AMPLIFIER & CONDENSER

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

8301METER

→ Go to FIG 83-01

86120RECEIVER ASSY, RADIO

main86120-37390i201107-201705

CLARION,AUDIO-AM/FM 2SPEAKER,TYPE A:REFER ILLUST.; CLARION,TACHOGRAPH-120KM/H & 1WEEK&AUDIO-AM/FM 2SPEAKER,TYPE A:REFER ILLUST.

main86120-37400i201107-201307

CLARION,AUDIO-AM/FM/CD 2SPEAKER,TYPE B:REFER ILLUST.; CLARION,TACHOGRAPH-120KM/H & 1WEEK&AUDIO-AM/FM/CD 2SPEAKER,TYPE B:REFER ILLUST.

main86120-37401i201308-201705

CLARION,AUDIO-AM/FM/CD 2SPEAKER,TYPE B:REFER ILLUST.; CLARION,TACHOGRAPH-120KM/H & 1WEEK&AUDIO-AM/FM/CD 2SPEAKER,TYPE B:REFER ILLUST.

main86120-37470i201705-201904

CLARION,AUDIO-AM/FM 2SPEAKER,TYPE D:REFER ILLUST.; CLARION,TACHOGRAPH-120KM/H & 1WEEK&AUDIO-AM/FM 2SPEAKER,TYPE D:REFER ILLUST.

main86120-37480i201705-201904

CLARION,AUDIO-AM/FM/CD 2SPEAKER,TYPE E:REFER ILLUST.; CLARION,TACHOGRAPH-120KM/H & 1WEEK&AUDIO-AM/FM/CD 2SPEAKER,TYPE E:REFER ILLUST.

main86120-E0310i201905-202005

CLARION,AUDIO-AM/FM 2SPEAKER,TYPE D:REFER ILLUST.; CLARION,TACHOGRAPH-120KM/H & 1WEEK&AUDIO-AM/FM 2SPEAKER,TYPE D:REFER ILLUST.

main86120-E0320i201905-202005

CLARION,AUDIO-AM/FM/CD 2SPEAKER,TYPE E:REFER ILLUST.; CLARION,TACHOGRAPH-120KM/H & 1WEEK&AUDIO-AM/FM/CD 2SPEAKER,TYPE E:REFER ILLUST.

main86120-E0380i201911-202310

CLARION,AUDIO-AUX & USB & *BT, 24V,TYPE G:REFER ILLUST.; CLARION,TACHOGRAPH-WITH(120KM/H & 1WEEK)&AUDIO-AUX & USB & *BT, 24V,TYPE G:REFER ILLUST.

main86120-E0381i202311

AUDIO-AUX & USB & *BT, 24V,TYPE G:REFER ILLUST.; TACHOGRAPH-WITH(120KM/H & 1WEEK)&AUDIO-AUX & USB & *BT, 24V,TYPE G:REFER ILLUST.

main86120-E0400i201911-202501

CLARION,AUDIO-AUX & USB & *BT & CD, 24V,TYPE G:REFER ILLUST.; CLARION,TACHOGRAPH-WITH(120KM/H & 1WEEK)&AUDIO-AUX & USB & *BT & CD, 24V,TYPE G:REFER ILLUST.

86211BRACKET, RADIO, NO.1

main86211-37110i201107-202005

86212BRACKET, RADIO, NO.2

main86212-37090i201107-202005

9015950343

main90159-50343

9155480614

main91554-80614

7 parts on this diagram · 2 diagrams in section
