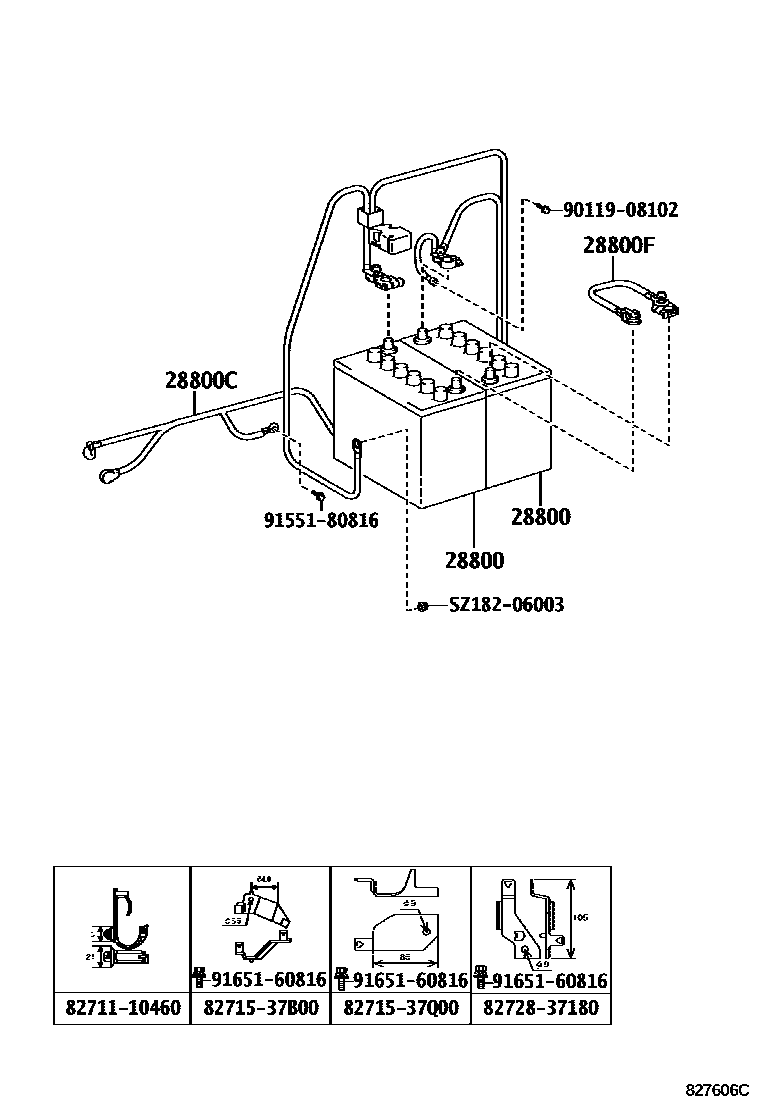

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-64012×2iN04C..XZU600,650..GCC201206-202005

55D23L,GS YUASA

main28800-54022×2supersedes 28800-64013iN04C..XZU600202005-202305

80D26L,BATTERY-80D26L X 2,GS YUASA

main28800-54023×2supersedes 28800-64013iN04C..XZU600202306

80D26L,BATTERY-80D26L X 2,GS YUASA

main28800-64181×2supersedes 28800-64012iW04D..WU600,650201108-201201

95D31L,BATTERY-95D31L X 2

main28800-66013×2supersedes 28800-56082iN04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650201206-202005

105D31L,BATTERY-95D31L X 2,GS YUASA

main28800-78100×2supersedes 28800-64012iW04D..WU600,650201108-201201

95D31L,BATTERY-95D31L X 2,FURUKAWA

main28800-78101×2supersedes 28800-56082iN04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650201202-202005

95D31L,BATTERY-95D31L X 2,FURUKAWA

main28800-78120×2supersedes 28800-64012iW04D..WU600,650201202-201206

95D31L,BATTERY-95D31L X 2,GS YUASA

main28800-E0051×2supersedes 28800-64013iN04C..XZU600202005

80D26L,BATTERY-80D26L X 2,HINO

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-37E52iN04C..XZU600,650..GCC201605-202005

main82122-37G40iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-201505

main82122-37G41iW04D..WU600..ST..CBU;W04D..WU600,650..WT..DCRTH201505-202005

main82122-37G60iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-201505

main82122-37G61iW04D..WU600..DCRTJ;W04D..WU600..ST..IV3201505-202005

main82122-37G80iN04C..XZU600..GEN201911

28800FCABLE, BATTERY TO BATTERY

main82123-37220iN04C,W04D..WU600,650,XZU600,650201107-201705

main82123-37260iN04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650201705-202005

8271110460WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10460

8271537B00BRACKET,WIRING HARNESS CLAMP

main82715-37B00

8271537Q00BRACKET,WIRING HARNESS CLAMP

main82715-37Q00

8272837180

main82728-37180

9011908102

main90119-08102

9155180816

main91551-80816

9165160816

main91651-60816

SZ18206003

mainSZ182-06003

11 parts on this diagram · 2 diagrams in section
