FUEL TANK & TUBE

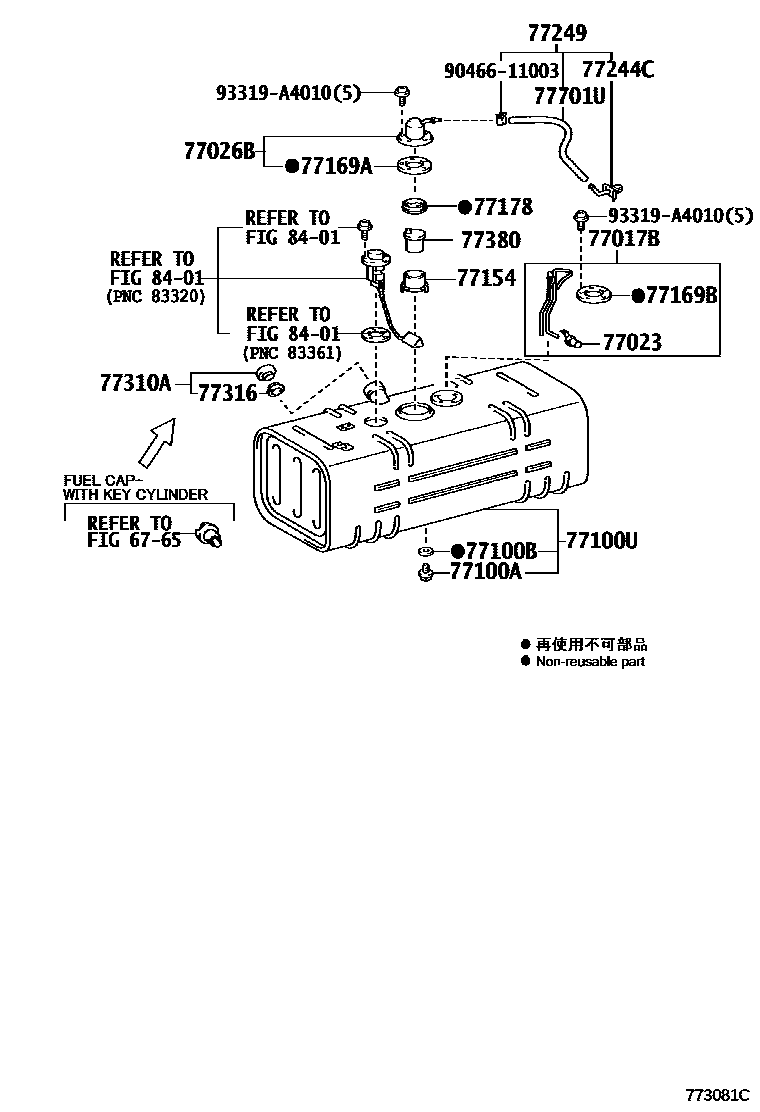

Parts diagram

6765LOCK CYLINDER SET

→ Go to FIG 67-65

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-37070i201911

main77017-37090i201107-202005

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-36010i201911

main77023-60010i201107-202005

77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-37010i201911

77100TANK ASSY, FUEL

main77100-37A30i201911-202410

main77100-37A31i202411

77100APLUG(FOR FUEL TANK)

main90105-12116i201107-202005

77100BGASKET(FOR FUEL TANK)

main90430-12245i201911

77100UTANK SUB-ASSY, FUEL

main77001-37470i201107-202005

780X310X385

main77001-37650i201107-202005

992X310X385

77154PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT

main77154-25010i201107-202005

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020i201107-202005

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-14020i201107-202005

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-44010i201107-202005

77244CJOINT, FUEL TUBE, NO.2

main77244-37010i201107-202005

main77244-37030i201911-202111

main77244-37031i202112

77249HOSE, FUEL EMISSION

main77249-37190i201107-202005

main77249-37510i201911

77310ACAP ASSY, FUEL TANK

main77310-60100i201107-202005

77316GASKET, FUEL TANK CAP

main77316-12050i201107-202005

77380VALVE ASSY, FUEL CUT OFF

main77380-26010i201107-202005

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06040i201107-202005

*H,L=340

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046611003

main90466-11003

93319A4010

main93319-A4010

21 parts on this diagram · 6 diagrams in section
