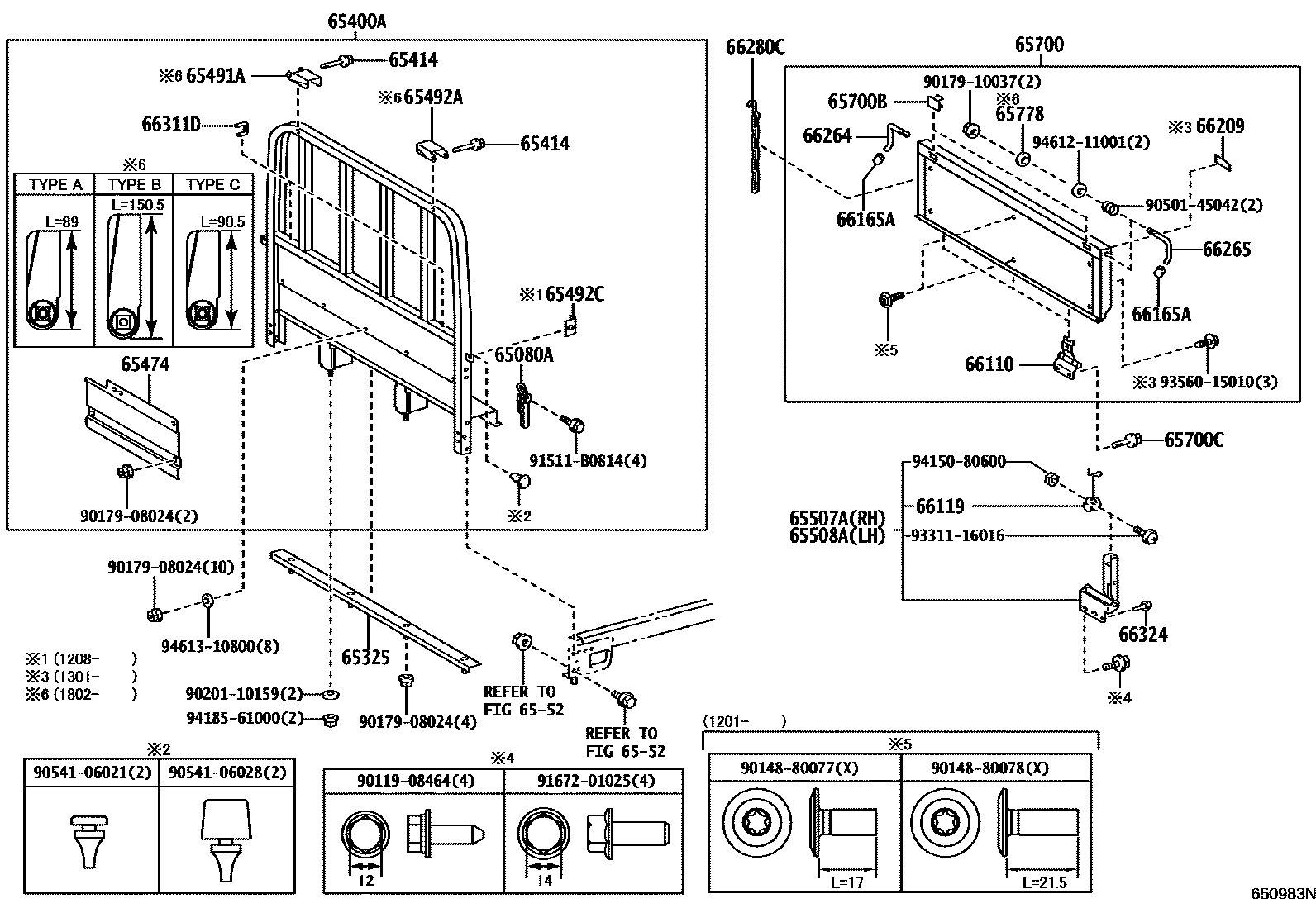

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65080AHANDLE ASSY, SIDE GATE LATCH

main65080-92701iWU600,650..CBU201107-202005

sub65080-92702

65325PLATE, FLOOR BOARD, FRONT

main65325-37020iWU600..ST..CBU201107-202005

main65325-37040iWU600,650..WT..CBU201107-201904

sub65325-37100

main65325-37100iWU600,650..WT..CBU201905-202005

65400AGUARD ASSY, REAR BODY

main65400-37P70iWU600,650..WT..CBU201107-202005

main65400-37Q10iWU600..ST..CBU201107-201301

main65400-37T40iWU600..ST..CBU201301-201905

sub65400-37T41

main65400-37T41iWU600..ST..CBU201906-202005

65414STOPPER, GUARD FRAME

main90119-08913iWU600..ST..CBU201208-202005

main91671-00880iWU600..ST..CBU201107-201208

65474INSULATOR, HEADER

main65474-37150iWU600,650..CBU201107-202005

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-25020iWU600..ST..CBU201403-202005

TYPE C:REFER ILLUST.

main65491-37010iWU600..ST..CBU201208-201403

TYPE B:REFER ILLUST.

main65491-37040iWU600..ST..CBU201107-201208

TYPE A:REFER ILLUST.

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-25020iWU600..ST..CBU201403-202005

TYPE C:REFER ILLUST.

main65492-37010iWU600..ST..CBU201208-201403

TYPE B:REFER ILLUST.

main65492-37020iWU600..ST..CBU201107-201208

TYPE A:REFER ILLUST.

65492CRETAINER, FRONT GUARD CUSHION

main65492-92701iWU600..ST..CBU201208-201906

65507ASUPPORT SUB-ASSY, CORNER, RH

main65507-37050iWU600,650..GEN..CBU201107-201304

main65507-37051iWU600,650..GEN..CBU201304-202005

65508ASUPPORT SUB-ASSY, CORNER, LH

main65508-37050iWU600,650..GEN..CBU201107-201304

main65508-37051iWU600,650..GCC..CBU201304-202005

6552

65700GATE ASSY, REAR BODY TAIL

main65700-37190iWU600..ST..CBU201107-201112

sub65700-37191

main65700-37191iWU600..ST..CBU201201-201301

sub65700-37260

main65700-37210iWU600,650..WT..CBU201107-201112

sub65700-37211

main65700-37211iWU600,650..WT..CBU201201-201904

sub65700-37271

main65700-37240iWU600..ST..CBU201301-201904

sub65700-37260

main65700-37260iWU600..ST..CBU201905-202005

sub65700-37261

main65700-37271iWU600,650..WT..CBU201905-202005

65700BPLUG, HOLE(FOR TAIL GATE)

main90950-01430iWU600,650..CBU201107-202005

65700CBOLT, W/WASHER(FOR TAIL GATE)

main90119-08464iWU600,650..WT..CBU201107-201904

main91551-80820iWU600..ST..CBU201905-202005

65778STOPPER, TAIL GATE STAY

main65772-37010iWU600,650..CBU201802-202005

66110HINGE ASSY, TAIL GATE

main66110-37020iWU600..ST..CBU201107-201112

sub66110-37021

main66110-37021iWU600..ST..CBU201201-202005

66119SPRING, TAIL GATE CHECK BALL

main90035-08023iWU600,650..GEN..CBU201107-202005

LH

main90035-08024iWU600,650..GEN..CBU201107-202005

RH

66165ACAP, GATE LATCH HANDLE

main66165-87402iWU600,650..CBU201107-202005

66209PROTECTOR SUB-ASSY, REAR

main66243-37060iWU600..ST..CBU201301-202005

66264HANDLE, TAIL GATE LATCH, RH

main66264-37010iWU600,650..CBU201107-202005

66265HANDLE, TAIL GATE LATCH, LH

main66265-37010iWU600,650..CBU201107-202005

66280CCHAIN ASSY, TAIL GATE

main66280-37020iWU600,650..CBU201107-201403

main66280-37030iWU600,650..CBU201404-202005

66311DHOOK, ROPE

main66312-37030iWU600,650..CBU201107-202005

66324CUSHION, TAIL GATE SIDE

main90541-09107iWU600,650..GEN..CBU201107-202005

9011908464

main90119-08464

9014880077

main90148-80077

9014880078

main90148-80078

9017908024

main90179-08024

9017910037

main90179-10037

9020110159

main90201-10159

9050145042

main90501-45042

9054106021

main90541-06021

9054106028

main90541-06028

91511B0814

main91511-B0814

9167201025

main91672-01025

9331116016

main93311-16016

9356015010

main93560-15010

9415080600

main94150-80600

9418561000

main94185-61000

9461211001

main94612-11001

9461310800

main94613-10800

41 parts on this diagram · 2 diagrams in section
