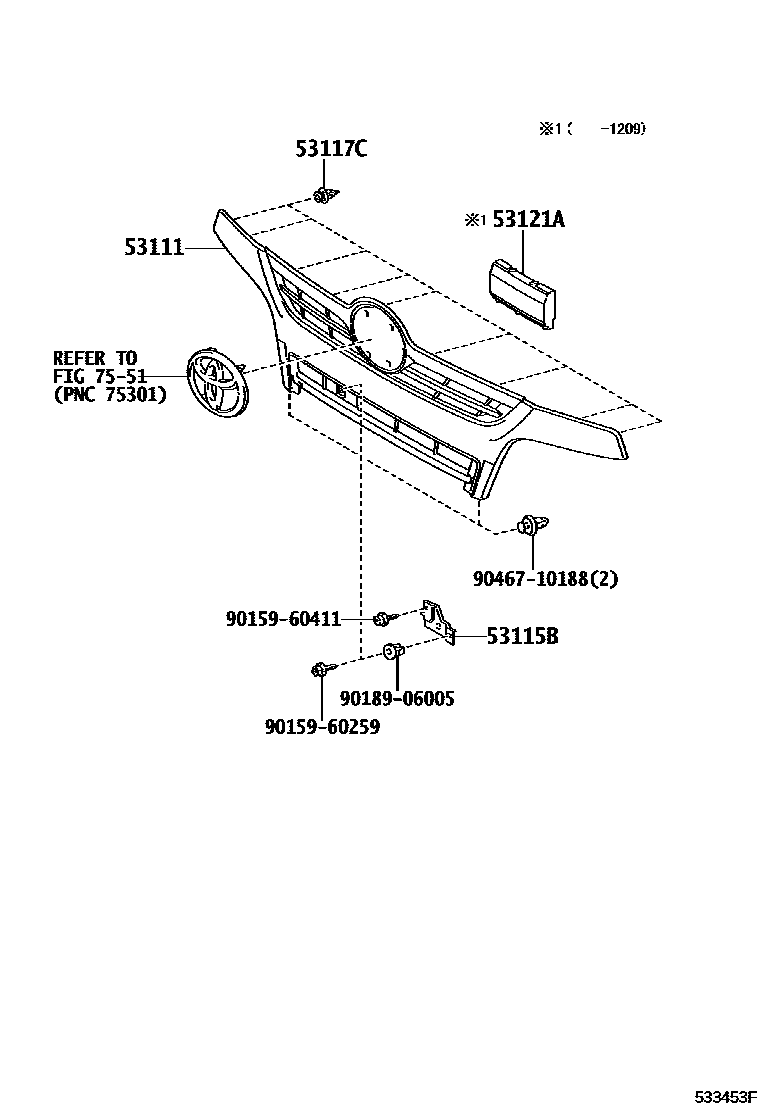

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-37A70-A0iXZU600..GEN201911

WHITE,058

main53111-37A70-B1iXZU600..GEN201911

SILVER ME.,199

main53111-37A70-H0iXZU600..GEN201911

TURQUOISE,766

main53111-37A70-J1iXZU600..GEN201911

BLUE,8P0

main53111-37A00-A0iWU600,650201107-201209

RADIATOR GRILLE-PAINTING,WHITE,058

main53111-37A00-B1iWU600,650201107-201209

RADIATOR GRILLE-PAINTING,SILVER ME.,199

main53111-37A00-H0iWU600,650201107-201209

RADIATOR GRILLE-PAINTING,TURQUOISE,766

main53111-37A00-J1iWU600,650201107-201209

RADIATOR GRILLE-PAINTING,BLUE,8P0

main53111-37A01-A0iXZU600..GCC;WU600,650,XZU650201209-202005

RADIATOR GRILLE-PAINTING,WHITE,058

main53111-37A01-B1iXZU600..GCC;WU600,650,XZU650201209-202005

RADIATOR GRILLE-PAINTING,SILVER ME.,199

main53111-37A01-H0iXZU600..GCC;WU600,650,XZU650201209-202005

RADIATOR GRILLE-PAINTING,TURQUOISE,766

main53111-37A01-J1iXZU600..GCC;WU600,650,XZU650201209-202005

RADIATOR GRILLE-PAINTING,BLUE,8P0

main53111-37A10supersedes 53111-37890iWU600,650201107-201209

PLATED,RADIATOR GRILLE-PLATING

main53111-37A11supersedes 53111-37891iXZU600..GCC;WU600,650,XZU650201209-202005

RADIATOR GRILLE-PLATING

main53111-37A80iXZU600..GEN201911

PLATED,RADIATOR GRILLE-PLATING,PLATING

53115BBRACKET, RADIATOR GRILLE

main53115-37080iXZU600..GCC;WU600,650,XZU650201107-202005

main53115-37100iXZU600..GEN201911

53117CRETAINER, RADIATOR GRILLE, NO.1

main67771-37011×9iWU600,650201107-201202

main67771-37040×9iXZU600..GCC;WU600,650,XZU650201203-202005

53121AMOULDING, RADIATOR GRILLE

main53121-37030iWU600,650201107-201209

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9015960259

main90159-60259

9015960411

main90159-60411

9018906005

main90189-06005

9046710188

main90467-10188

9 parts on this diagram · 2 diagrams in section
