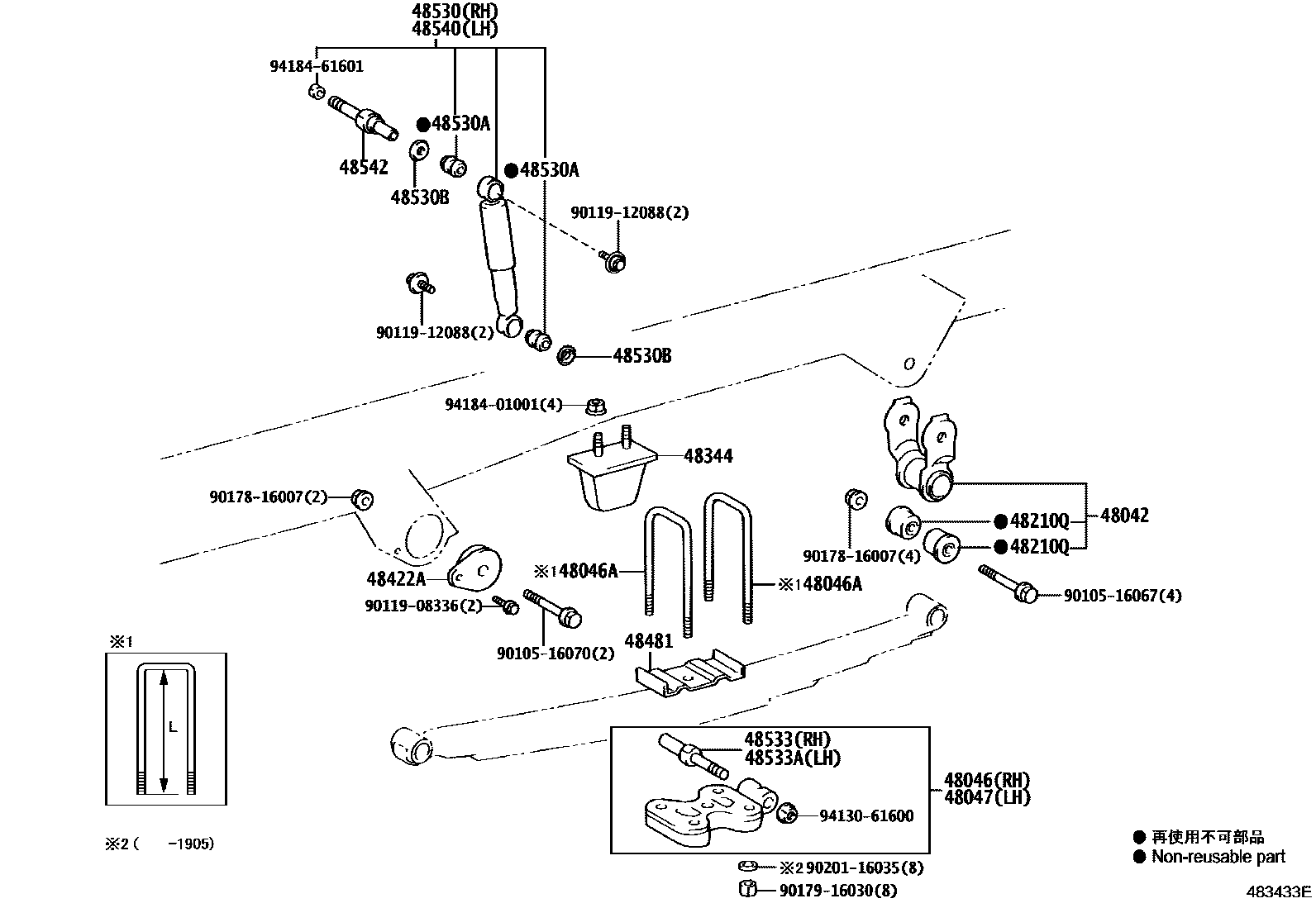

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1MAIN 6+HELPER 5-LEAF 0004 1MAIN 6+HELPER 6-LEAF 0005 17-LEAF

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48042-37020iXZU600..GEN201107-202005

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-37110iWU600..ST201107-202005

main48473-37170iWU600,650..WT..DCRTH201107-202005

main48473-37180iWU600,XZU600,650..DCRTJ201107-202005

48046ABOLT, U(FOR REAR SPRING)

main90117-16018iXZU600..GEN201107-202005

L=300

main90117-16040iWU600,XZU600,650..DCRTJ201107-202005

L=320,REAR SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)

main90117-16040iWU600,650..WT..DCRTH201107-202005

L=320

main90117-16144iWU600..ST201905-202005

L=285

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-37110iWU600..ST201107-202005

main48473-37170iXZU600..GEN201107-202005

main48473-37180iWU600,XZU600,650..DCRTJ201107-202005

48210SPRING ASSY, REAR RH

main48210-37540iXZU600..GCC;WU600,650,XZU650..WT201107-202005

MAIN 6+HELPER 5-LEAF

main48210-37F40iWU600..ST201107-201510

7-LEAF

sub48210-37F41

main48210-37F41iWU600..ST201511-202005

7-LEAF

48210QBUSH(FOR REAR SPRING SHACKLE)

main90389-16026iXZU600..GCC;WU600,650,XZU650201107-202005

48344STOPPER, BUMPER, REAR

main48344-37190iWU600..ST201107-202005

main48344-37200iXZU600..GEN201107-202005

48422ASUPPORT, REAR SPRING PIN

main48422-36090iWU600..ST201107-202005

main48422-37010iWU600,650,XZU600,650..WT201107-201905

48481SEAT, REAR SPRING, UPPER

main48481-37071iWU600,650..DCRTH201107-202005

main48481-37081iWU600,XZU600,650..DCRTJ201107-202005

sub48481-37082

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80673iWU600,650..WT201107-201507

MARK 48531-37010

sub48531-80796

main48531-80745iWU600..ST201107-201507

MARK 48531-37210

sub48531-80794

main48531-80794iWU600..ST201507-202005

MARK 48531-36211

main48531-80796iWU600,650,XZU600,650..WT201507-201909

MARK 48531-37011

sub48531-80833

main48531-80833iXZU600..GCC;WU600,650,XZU650..WT201909-202005

MARK 48531-37012

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19011iXZU600..GCC;WU600,650,XZU650201107-202005

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011iXZU600..GCC;WU600,650,XZU650201107-202005

48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

main48522-37030iWU600..ST201107-202005

48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH

main48522-37030iWU600..ST201107-202005

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80673iWU600,650..WT201107-201507

MARK 48531-37010

sub48531-80796

main48531-80745iWU600..ST201107-201507

MARK 48531-37210

sub48531-80794

main48531-80794iWU600..ST201507-202005

MARK 48531-36211

main48531-80796iWU600,650,XZU600,650..WT201507-201909

MARK 48531-37011

sub48531-80833

main48531-80833iXZU600..GCC;WU600,650,XZU650..WT201909-202005

MARK 48531-37012

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-37010iWU600..ST201107-202005

9010516067

main90105-16067

9010516070

main90105-16070

9011908336

main90119-08336

9011912088

main90119-12088

9017816007

main90178-16007

9017916030

main90179-16030

9020116035

main90201-16035

9413061600

main94130-61600

9418401001

main94184-01001

9418461601

main94184-61601

26 parts on this diagram · 5 diagrams in section
