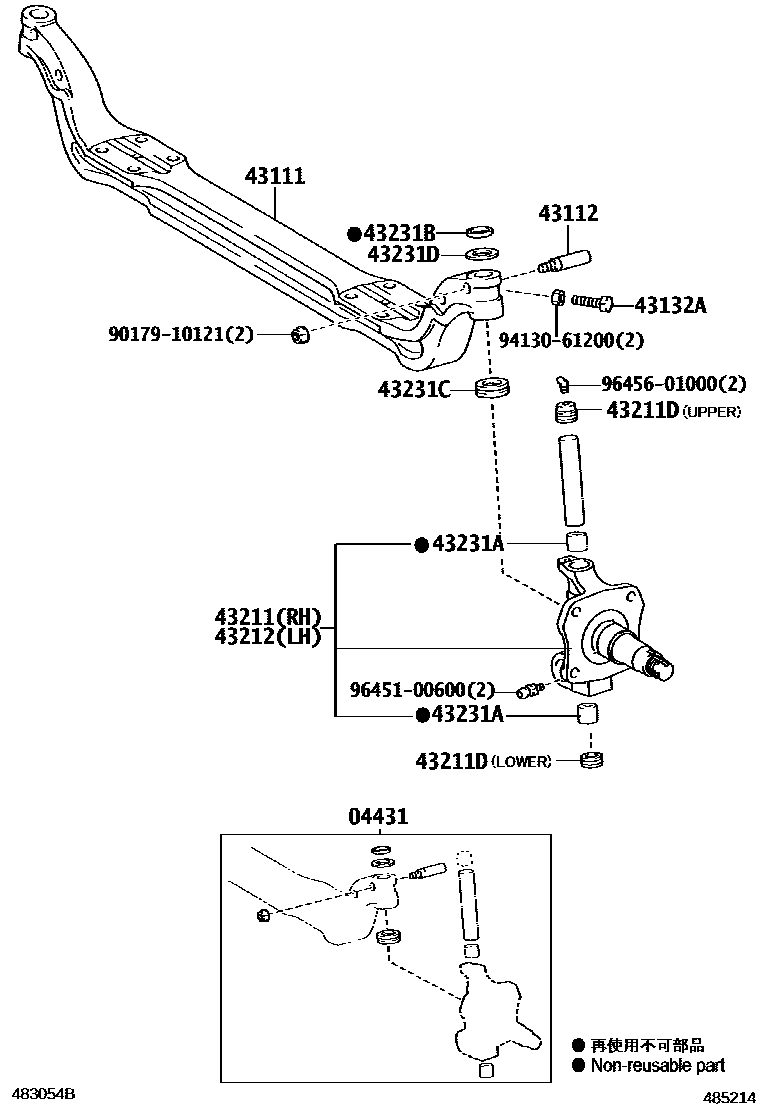

FRONT AXLE ARM & STEERING KNUCKLE

0001 1DRUM BRAKE 0002 1DISC BRAKE

04431PIN KIT, STEERING KNUCKLE KING

main0443C-37010iXZU600..GEN201612-202005

main0443C-37020iWU600,650,XZU600,650201107-201612

sub0443C-37010

43111I BEAM, FRONT AXLE

main43111-37031iXZU600..GEN201107-202005

43112PIN, KING PIN LOCK

main43112-36020iXZU600..GEN201107-202005

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12008iXZU600..GEN201107-202005

43211KNUCKLE, STEERING, RH

main43201-37110iXZU600,650..GCC201605-202005

main43201-37120iWU600..ST..GEN;WU600,650..GCC..CBU;WU600..ST..GCC..IV3201107-202005

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33003iXZU600..GEN201107-202005

LOWER

main90345-33004iXZU600..GCC;WU600,650,XZU650201107-202005

UPPER

43212KNUCKLE, STEERING, LH

main43202-37110iXZU600,650..GCC201605-202005

main43202-37120iWU600..ST..GEN;WU600,650..GCC..CBU;WU600..ST..GCC..IV3201107-202005

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90384-28023iXZU600202204

main90999-73086iXZU600,650..GCC201706-202005

FRONT WHEEL BRAKE-DRUM&ABS-WITHOUT

main90999-73086iWU600,650..WT..IV3;WU600,650..WT..GEN..CBU201107-202204

main90999-73086iWU600,650..WT201706-202005

FRONT WHEEL BRAKE-DISC

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main90312-28003iXZU600..GCC;WU600,650,XZU650201107-202005

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001iXZU600..GCC;WU600,650,XZU650201107-202005

43231DSHIM (FOR KING PIN)

main90564-28001iXZU600..GEN201107-202005

T=1.9

main90564-28002iXZU600..GEN201107-202005

T=2.0

main90564-28003iXZU600..GEN201107-202005

T=2.1

main90564-28004iXZU600..GEN201107-202005

T=2.2

main90564-28005iXZU600..GCC;WU600,650,XZU650201107-202005

T=2.3

main90564-28006iXZU600..GEN201107-202005

T=2.4

main90564-28007iXZU600..GCC;WU600,650,XZU650201107-202005

T=1.7

main90564-28008iXZU600..GEN201107-202005

T=1.8

9017910121

main90179-10121

9413061200

main94130-61200

9645100600

main96451-00600

9645601000

main96456-01000

15 parts on this diagram · 2 diagrams in section
