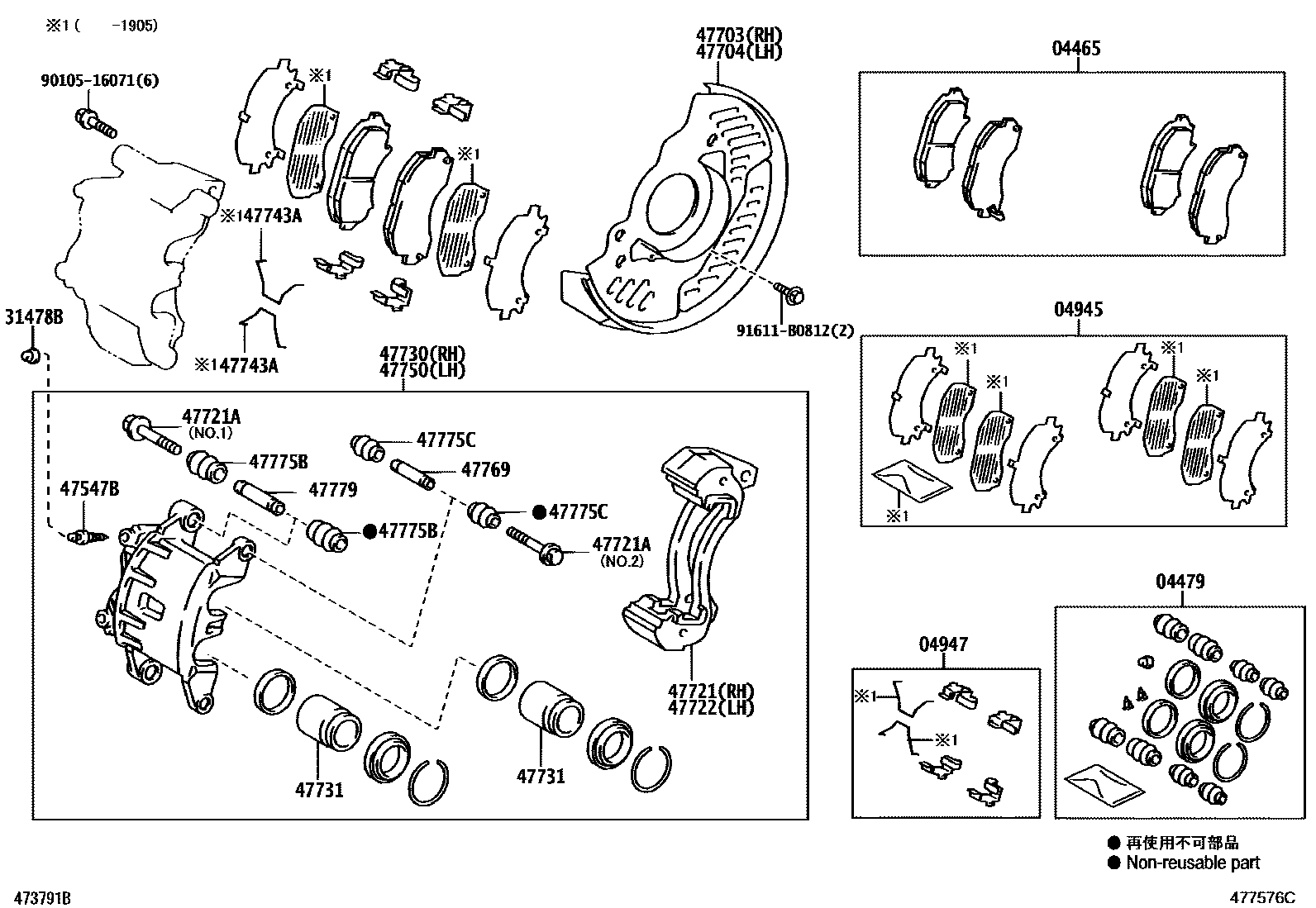

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-37151iXZU600,650..GCC201605-202005

MARK AK NS174A

main04465-37150iWU600,650201107-201502

MARK AK NS174A,FRONT WHEEL BRAKE-DISC

04479CYLINDER KIT, DISC BRAKE, FRONT

main0447B-37021×2iXZU600,650..GCC201605-202005

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-37030iXZU600,650201605-201904

main04945-37230iWU600,650; XZU600,650..GCC201905-202005

FRONT WHEEL BRAKE-DISC

04947FITTING KIT, DISC BRAKE, FRONT

main0494A-37020×2iXZU600,650201605-201904

main0494A-37050×2iWU600,650; XZU600,650..GCC201905-202005

FRONT WHEEL BRAKE-DISC

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iXZU600,650..GCC201605-202005

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iXZU600,650..GCC201605-202005

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37030supersedes 47703-37031iXZU600,650..GCC201605-202002

main47703-37031iXZU600..GEN202003

FRONT WHEEL BRAKE-DISC; FRONT WHEEL BRAKE-DISC&ABS-WITH(WITH POWER ASSIST BRAKE)

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37030supersedes 47704-37031iXZU600,650..GCC201605-202002

main47704-37031iXZU600..GEN202003

FRONT WHEEL BRAKE-DISC; FRONT WHEEL BRAKE-DISC&ABS-WITH(WITH POWER ASSIST BRAKE)

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-37030iXZU600,650..GCC201605-202005

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-08B87×4iXZU600,650..GCC201605-202005

*8-1.25PX59-27,NO.2

main90119-12256×4iXZU600,650..GCC201605-202005

*12-1.25PX75-30,NO.1

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-37020iXZU600,650..GCC201605-202005

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-37030iXZU600,650..GCC201605-202005

47731PISTON, FRONT DISC BRAKE

main47731-36020×4iWU600,650; XZU600,650..GCC201912-202005

FRONT WHEEL BRAKE-DISC

main47731-37010×4iXZU600,650201605-201911

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020×4iXZU600,650201605-201905

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-37030iXZU600,650..GCC201605-202005

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030×4iXZU600,650..GCC201605-202005

47775BBOOT, BUSH DUST, NO.1

main47775-36050×8iXZU600,650..GCC201605-202005

47775CBOOT, BUSH DUST, NO.2

main47775-36040×8iXZU600,650..GCC201605-202005

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010×4iXZU600,650..GCC201605-202005

9010516071

main90105-16071

91611B0812

main91611-B0812

21 parts on this diagram · 1 diagram in section
