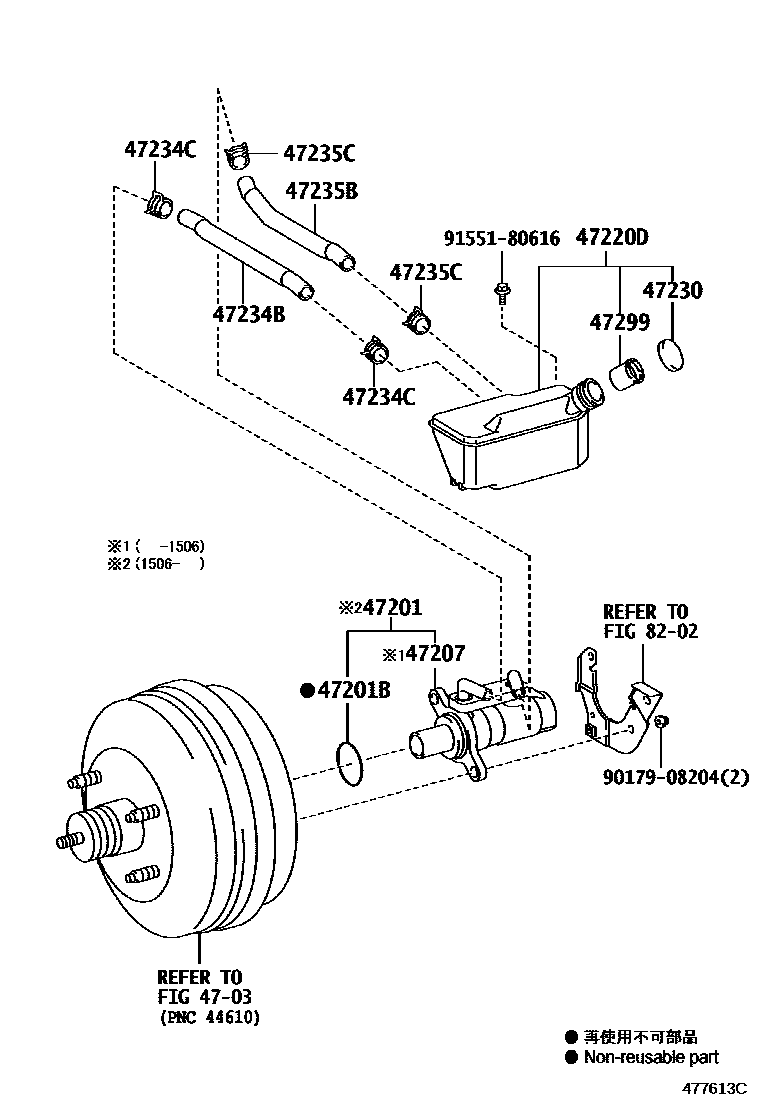

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-37290iWU600,650,XZU600,650201506-201901

main47201-37370iXZU600..GCC;WU600,650,XZU650201902-202005

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iXZU600..GCC;WU600,650,XZU650201107-202005

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-37170iWU600,650201107-201506

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-37190iXZU600..GCC;WU600,650,XZU650201107-202005

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iXZU600..GCC;WU600,650,XZU650201107-202005

47234BTUBE, RESERVOIR, NO.1

main47234-37190iXZU600..GCC;WU600,650,XZU650201107-202005

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500×2iXZU600..GCC;WU600,650,XZU650201107-202005

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37180iXZU600..GCC;WU600,650,XZU650201107-202005

47235CCLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)

main96133-41500×2iXZU600..GCC;WU600,650,XZU650201107-202005

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iXZU600..GCC;WU600,650,XZU650201107-202005

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908204

main90179-08204

9155180616

main91551-80616

14 parts on this diagram · 1 diagram in section
