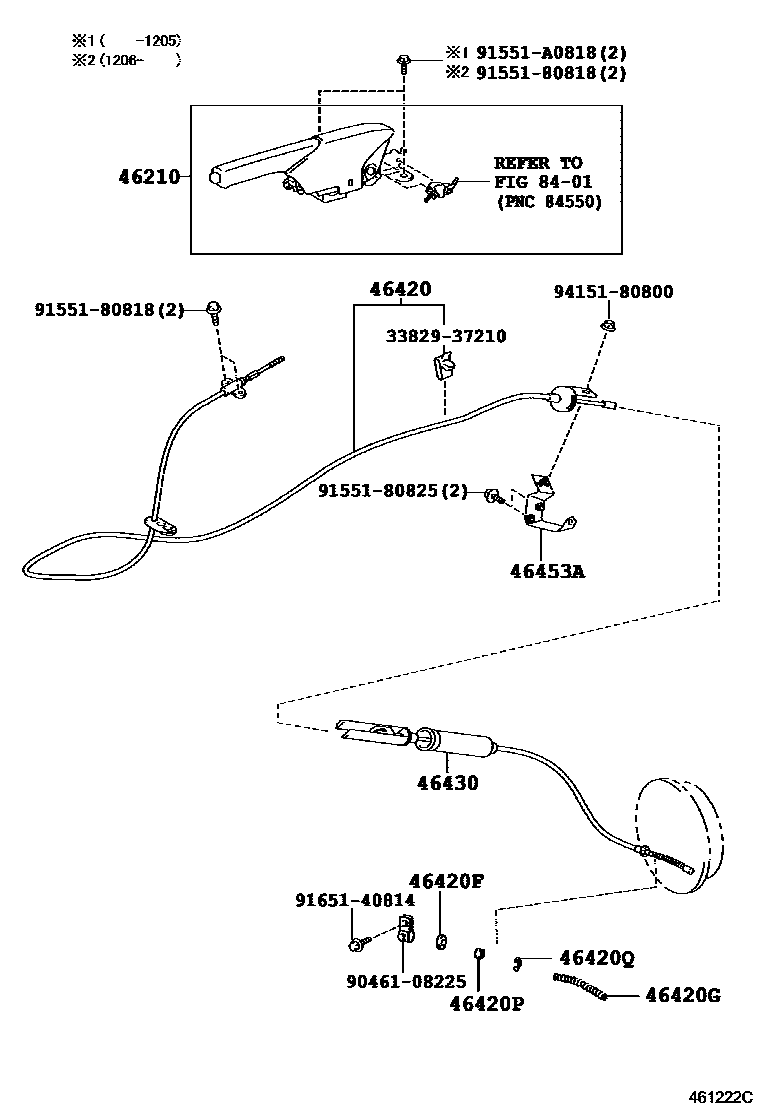

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46210LEVER ASSY, PARKING BRAKE

main46210-37180-C0iXZU600..GCC;WU600,650,XZU650201107-202005

BLACK,TRIM1#

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37A80iXZU600,650..GCC201605-202005

main46420-37B00iWU600,650201107-202005

main46420-37D90iXZU600202501

main46420-37E50iXZU600..GEN201911-202501

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iXZU600..GCC;WU600,650,XZU650201107-202005

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iXZU600..GCC;WU600,650,XZU650201107-202005

46420PSPACER, PARKING BRAKE

main90560-08002iXZU600..GCC;WU600,650,XZU650201107-202005

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iXZU600..GCC;WU600,650,XZU650201107-202005

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37570iWU600..ST..GEN..IV3;WU600,XZU600,650..DCRTJ201107-202005

main46430-37670iWU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH201107-202005

main46430-37J00iXZU600..GEN201911

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37190iXZU600..GCC;WU600,650,XZU650201107-202005

main46453-37450iXZU600..GEN201911

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3382937210SUPPORT, TRANSMISSION CONTROL CABLE

main33829-37210

9046108225

main90461-08225

9155180818

main91551-80818

9155180825

main91551-80825

91551A0818

main91551-A0818

9165140814

main91651-40814

9415180800

main94151-80800

16 parts on this diagram · 4 diagrams in section
