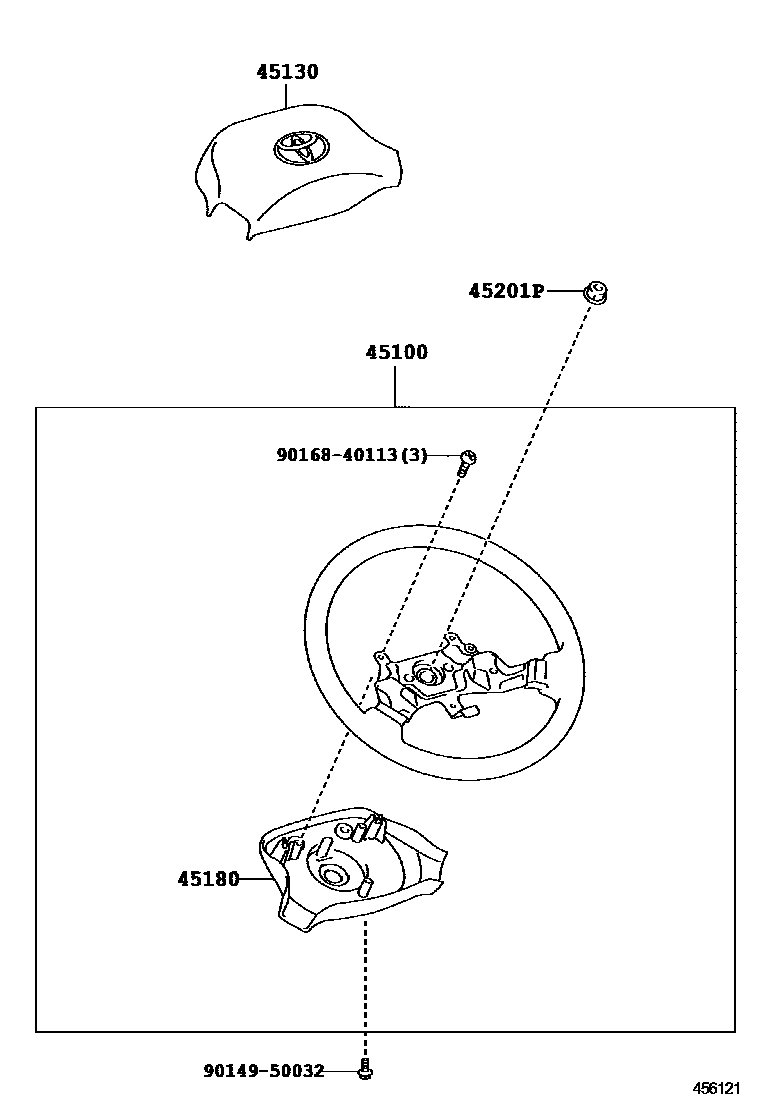

STEERING WHEEL

0001 12-SPOKE, W/O(SRS AIR BAG) 0002 12-SPOKE, W(SRS AIR BAG) 0003 12-SPOKE, W/O(SRS AIR BAG)

45100WHEEL ASSY, STEERING

main45100-37070-C0iWU600,650201107-201505

2-SPOKE,URETHANE,BLACK,TRIM1#

main45100-37100-C0iXZU600..GCC;WU600,650,XZU650201505-202005

2-SPOKE,URETHANE,BLACK,TRIM1#

main45100-37090-C0iXZU600,650..GCC201605-202005

2-SPOKE,URETHANE,SRS AIR BAG-WITH(DRIVER),BLACK,TRIM1#

45130BUTTON ASSY, HORN

main45130-37120-C0iWU600,650201107-201505

BLACK,TRIM1#

main45130-37190-C0iXZU600..GCC;WU600,650,XZU650201505-202005

BLACK,TRIM1#

main45130-37170-C0supersedes 45130-37190-C0iXZU600..GEN201911

SRS AIR BAG-WITH(DRIVER),BLACK,TRIM1#

45180COVER SUB-ASSY, STEERING WHEEL

main45180-37030-C0iWU600,650201107-201505

BLACK,TRIM1#

main45180-37060-C0iXZU600..GCC;WU600,650,XZU650201505-202005

BLACK,TRIM1#

main45180-37050-C0iXZU600,650..GCC201605-202005

SRS AIR BAG-WITH(DRIVER),BLACK,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iXZU600..GEN201911

9014950032

main90149-50032

9016840113

main90168-40113

6 parts on this diagram · 3 diagrams in section
